Glow-worm Chatsworth 4 - Manual (Page 21)

21 221907C
8 Replacement of Parts
6246

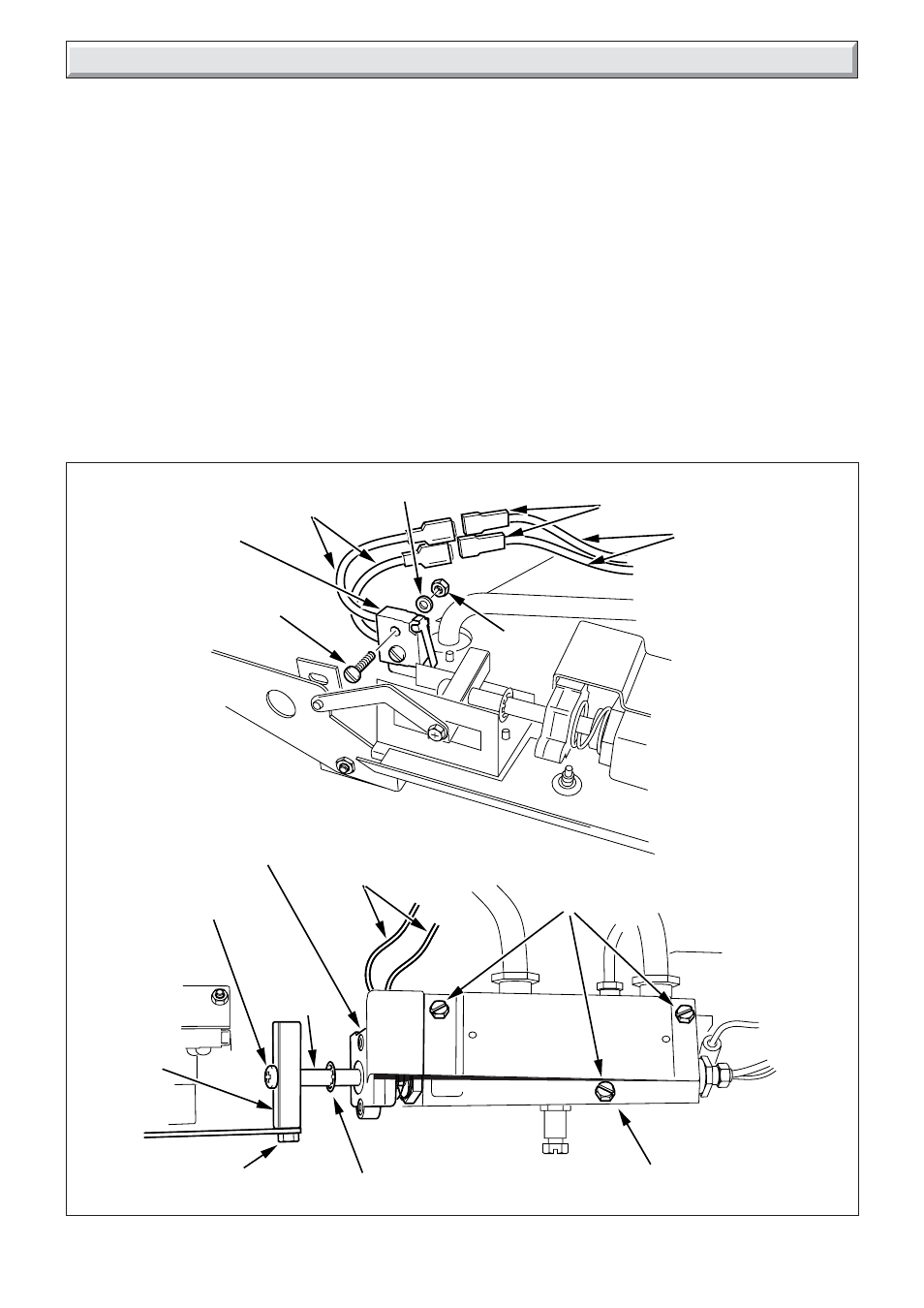

Diagram 8.2
ELECTRICAL
LEADS
NUT (2)
WASHER (2)
MICROSWITCH 1
SECURING
SCREW (2)
SCREWS (3)
SPACERS (3)
BLACK CABLES
MICROSWITCH 2
Must be fitted as shown
CIRCLIP
SECURING
SCREW
GAS TAP
FITTING
BLOCK
GAS TAP
SPINDLE
SECURING
SCREW
WHITE
CABLES
BLACK CABLES
8.8 Microswitch 1 and 2
Remove the fire front from the back boiler unit.
Follow instructions in Section 6.4 to remove the burner assembly.
To remove Microswitch 1, see diagram 8.2.
Remove the securing screws, nuts and electrical leads.
To remove Microswitch 2, see diagrams 8.1 and 8.2.
Remove the spark generator, diagram 8.1.
Remove the gas tap fitting block, diagram 8.2.
Remove the three securing screws to release the gas control
valve, diagram 8.2.
Remove the circlip, diagram 8.2.
Disconnect the black cables from the microswitch, diagram 8.2.
Remove the microswitch, diagram 8.2.
When re-assembling make sure to refit the spacers between
the gas control and burner assembly.
