shaking has occurred, just restart the resetting process.
FY30A power supply
FY30A working voltage = 5 to 6V.
The FY30A requires stable power input. Therefore, we highly recommend using an
external BEC power supply with minimum 3A output. The higher the better.
Be sure to remove the Red wire from your ESC plug if using an external BEC.
BEC should be plugged into your RC Receiver.
Power is sent to the FY-30A via Channel 1 input.

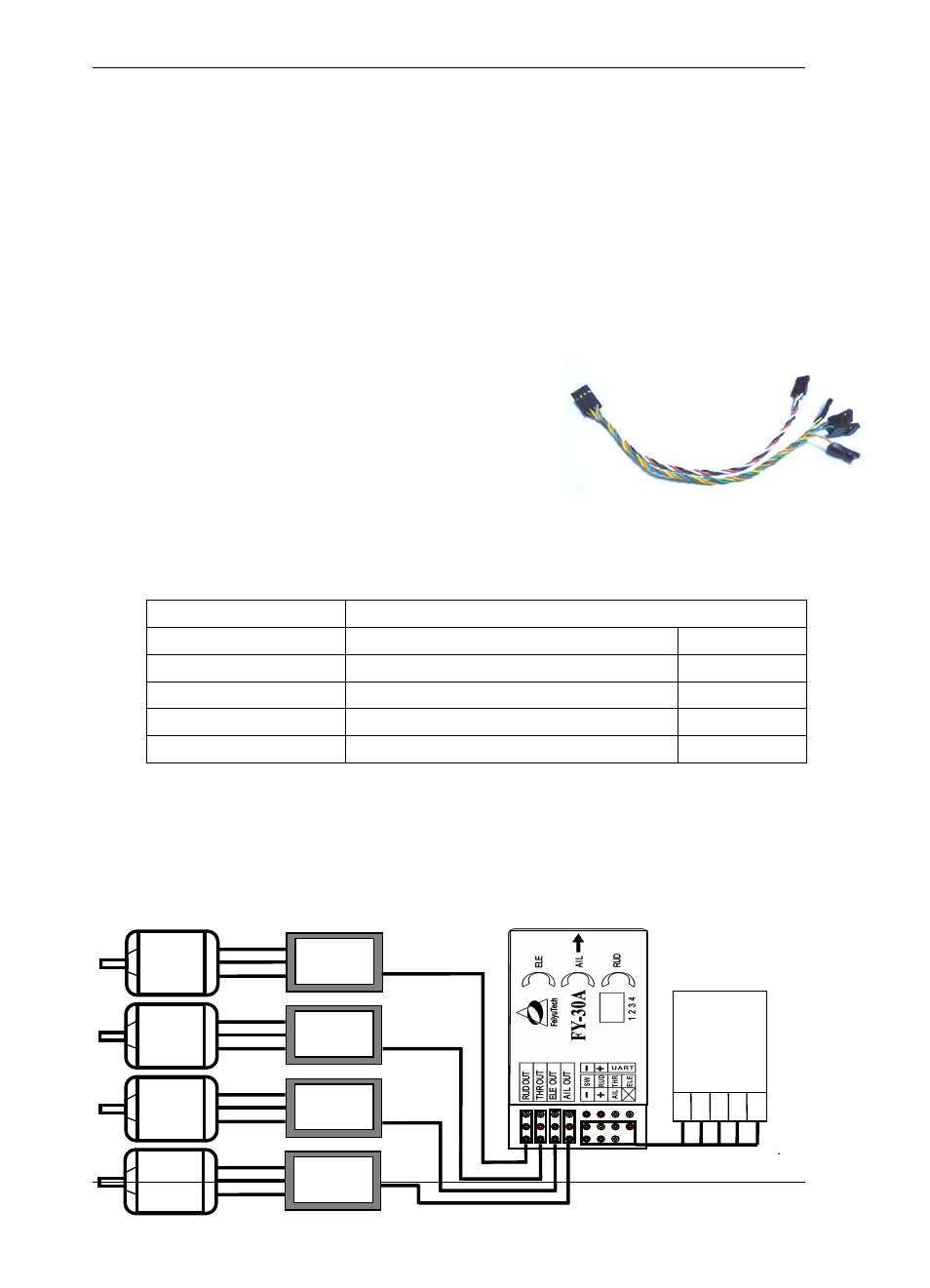

FY-30A colour coded cable to RC Receiver:
RC Receiver Requirement
a) FY-30A requires at least a 5-channel receiver
b) Plug in the cable into the FY30A and connect to the RC Receiver following these
colour codes:
Wire color
Receiver channel
White (red and black)
Aileron
Channel 1
Orange
Elevator
Channel 2
Green
Throttle
Channel 3
Yellow
Rudder
Channel 4
Brown
Controlled 2-Way switch
Channel 5
c) Note Channel 5 will output the signal to control the 2 flight modes of the FY-30A.
Therefore assign 2-way switch to this channel.
QUADCOPTER SET UP
C
H
5
A
I
L
R
U
D
T
H
R
E
L
E
RC
R
ece
iver
ESC4
(RUD)
Motor4
ESC3
(THR)
Motor3
ESC2
(ELE)
Motor2
ESC1
(AIL)
Motor1
