FY-30A interface for multi-rotor
Pin interface to sort the list
8 7 6 5 4 3 2 1 No.
ESC4
out
ESC3
out
ESC2
out
ESC1
out Ground
Power TX RX A
Power Power Power Power
CH5
(Switch)
CH 4
(Rudder)
CH 3
(Throttle)
CH 2
(Elevator)
B
Ground Ground Ground Ground Ground Power
CH 1
(Aileron)
NULL C

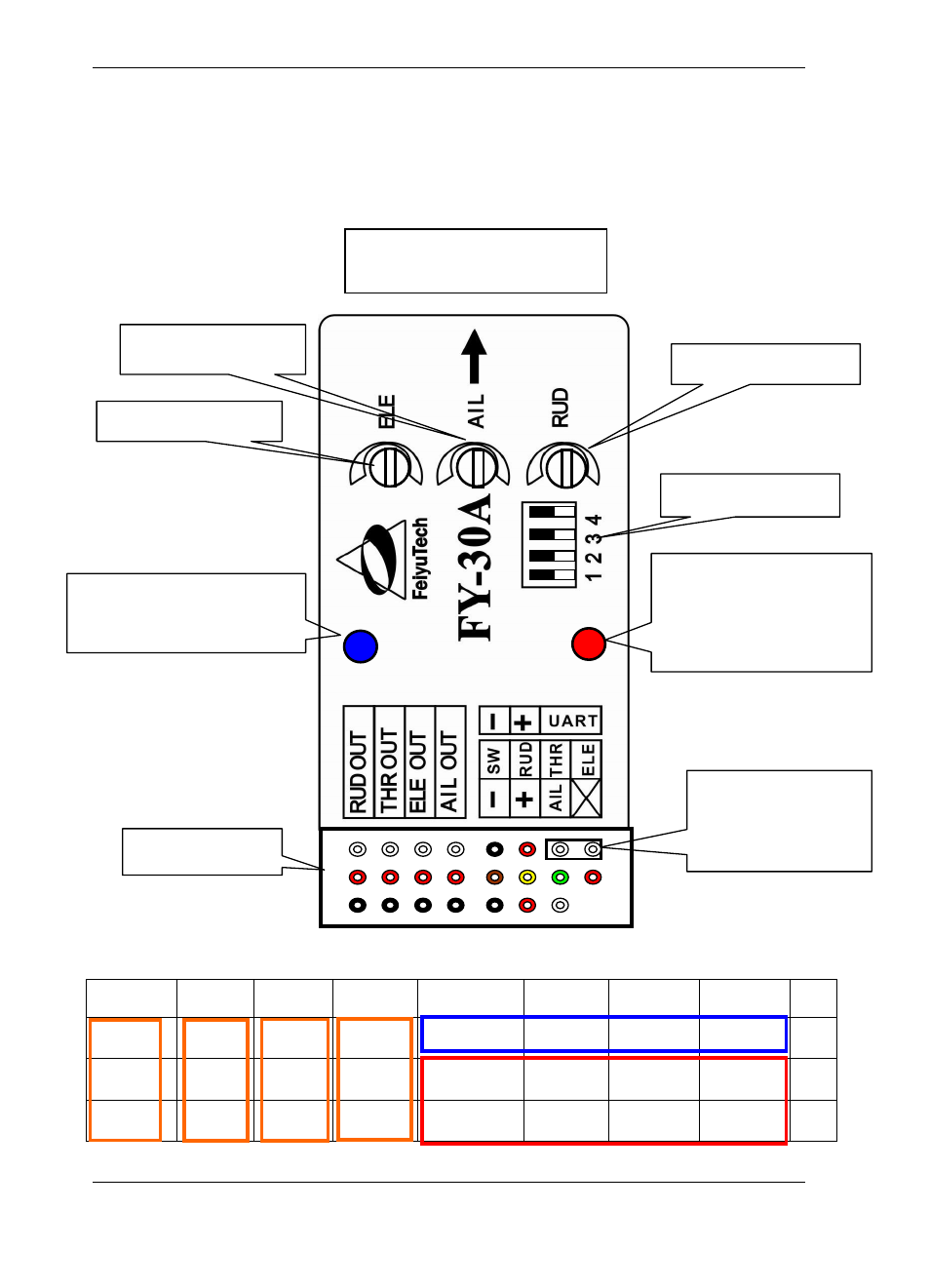

POINT ARROW FORWARD
(TOWARDS FLIGHT DIRECTION)
Roll sensitivity knob
pitch sensitivity knob
Yaw sensitivity knob
Function DIP switch
Red LED: Solid ON indicates
vibration is too severe.
Flashes when stationary:
indicate need for gyro
initialization.
Blue LED: Flight mode indicator.
Always On: 3D mode.
Singleflashing:Auto Stabilization.
Interface pin panel
Jumper installed during
gyro initialization.
Do not insert jumper
during normal use.
B
A
8
C
7 6 5 4 3 2 1
