Option 2: ground station control diagramme – FeiYu Tech Panda Autopilot User Manual
Page 20
Guilin Feiyu Electronic Technology Co., Ltd
Guilin Feiyu Electronic Technology Co., Ltd http://www.feiyudz.cn [email protected]
Page 19
OPTION 2: POWER WARNING
If you choose to use the 5.0 volt power from your ESC BEC, you can plug the throttle
control wire directly into the ―THR‖ port. However please ensure that your ESC
internal BEC can supply a minimum of 3.0 A current.
However we highly recommend that you use an external BEC with 3.0 A current output.
The 5.0 volt External BEC power input is connected to the +5V Pin of the P6 Port, and
the GND.

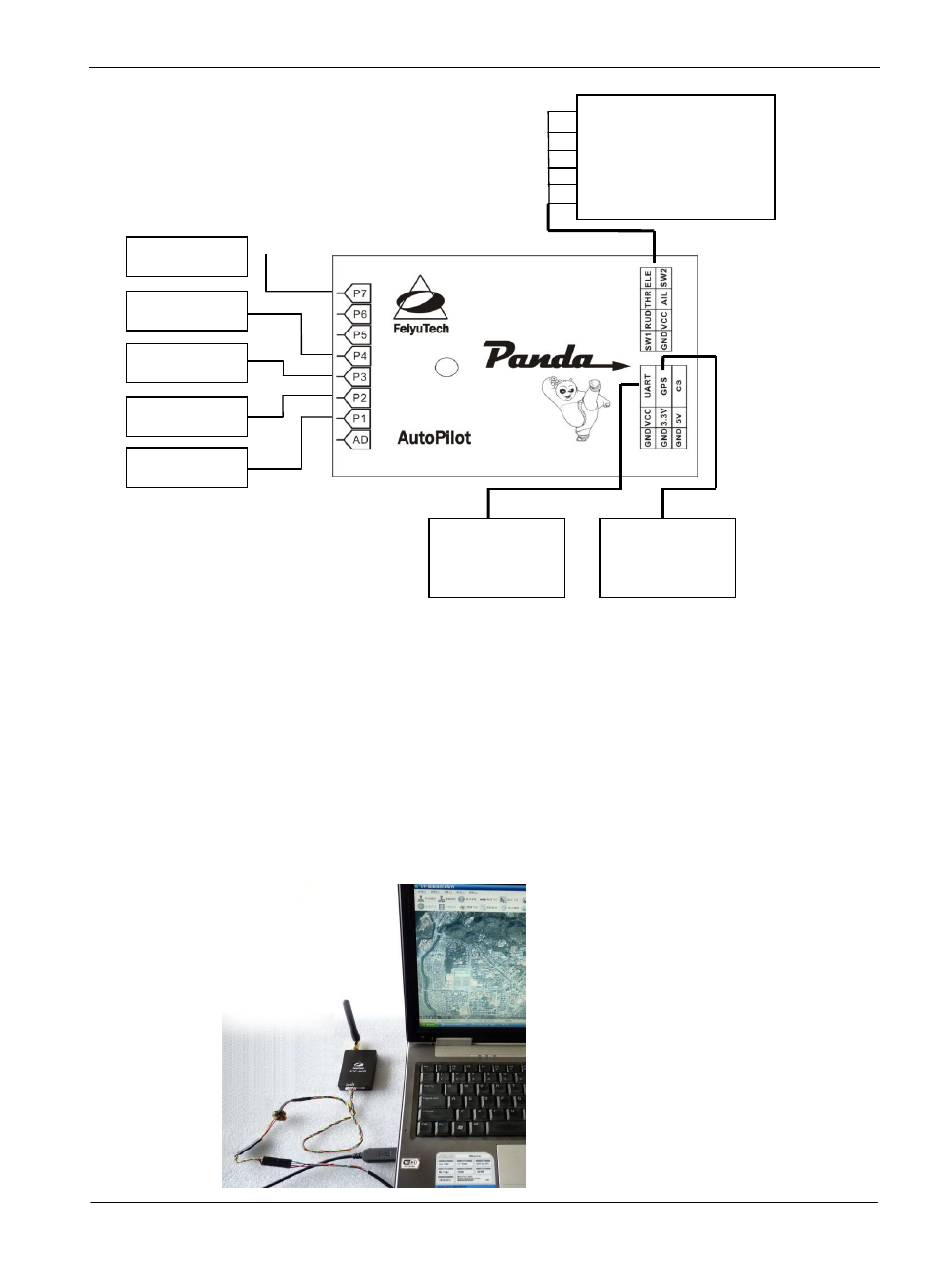

OPTION 2: GROUND STATION CONTROL DIAGRAMME
AIL Servo
RUD Servo
THR Servo
ELE Servo
5Vservo battery
Data radio
RC Remote Receiver
AIL
THR
CH5
ELE
CH6
RUD
GPS module
