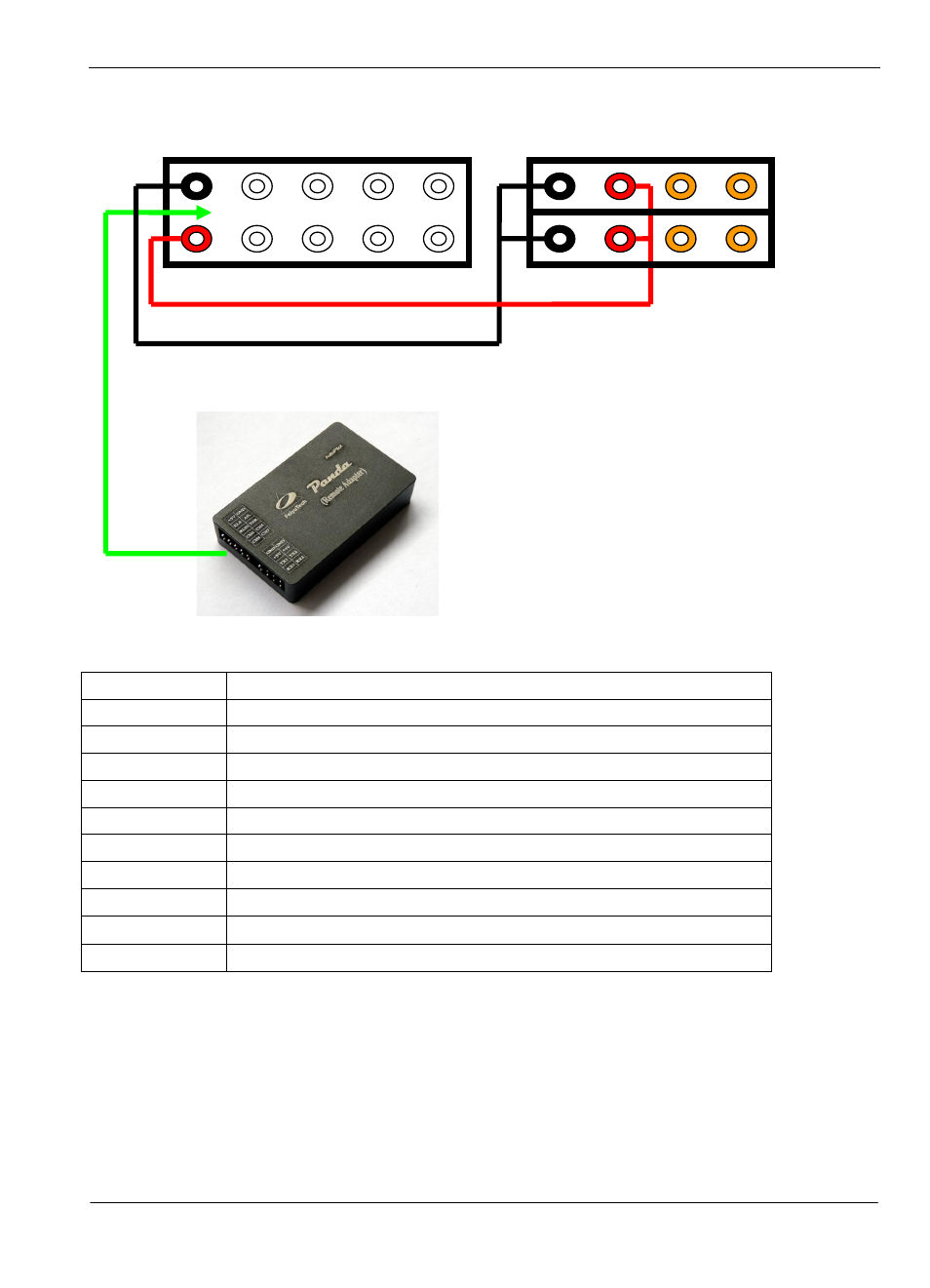

Panda Remote Adapter module interface:
Name
Function
RADIO
Connect to the data radio
PC
Connect to the PC serial port
AIL
Aileron input
ELE
Elevator input
THR
Throttle input
RUD
Rudder input
CH5
Channel 5 input
CH6
Channel 6 input
CH7
Channel 7 input
CH8
Channel 8 input
The CH7 of the Remote Adapter module can adapt a receiver signal to the autopilot
module, and the autopilot module output it via its P6 port.
+5V
GND
TX2
RX2
+5V
GND
CH5
THR
+5V
GND
AIL
CH7
ELE
RUD
CH6
CH8
TX1
RX1
RADIO
PC
