DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

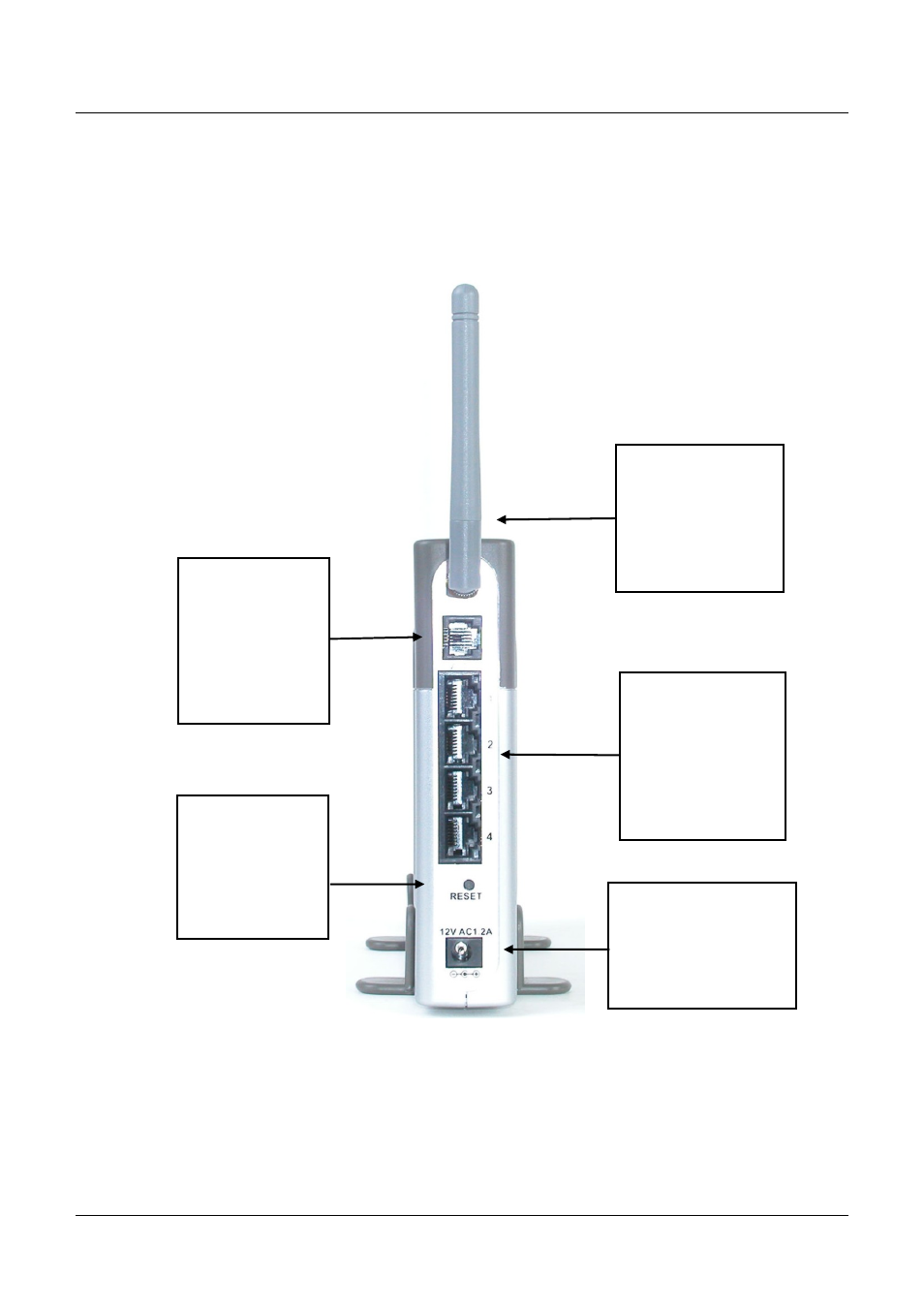

Rear Panel
Connect the AC power adapter cord and network cables on the rear panel. The power switch and reset
button are also located on the back of the device. Connect the antennas to the antenna posts.
All cable connections to the Router are made at the rear panel. The power switch and factory reset
button is located here as well.
Ethernet ports
Use the Ethernet
ports to connect
the Router to
your Ethernet
LAN or Ethernet
devices
Antenna
For wireless
operation, mount
the antenna on
the threaded
antenna post
Reset button
To manually
reset, depress
button with the
power on for a
10 seconds
ADSL Port
Use the ADSL
cable to
connect to the
your telephone
line (RJ-11
port)
Power Insert
Use the adapter
shipped with the
Router to connect
to power source
Wireless LAN Basics
Some basic understanding of 802.11g wireless technology and terminology is useful when you are
setting up the Router or any wireless access point. If you are not familiar with wireless networks
please take a few minutes to learn the basics.
