Operating the Optical Switch
20 FTB-9100
Selecting Configurations
Selecting Configurations
The different configurations available for your switch allow you to access a
number of switch possibilities.
To select configurations:

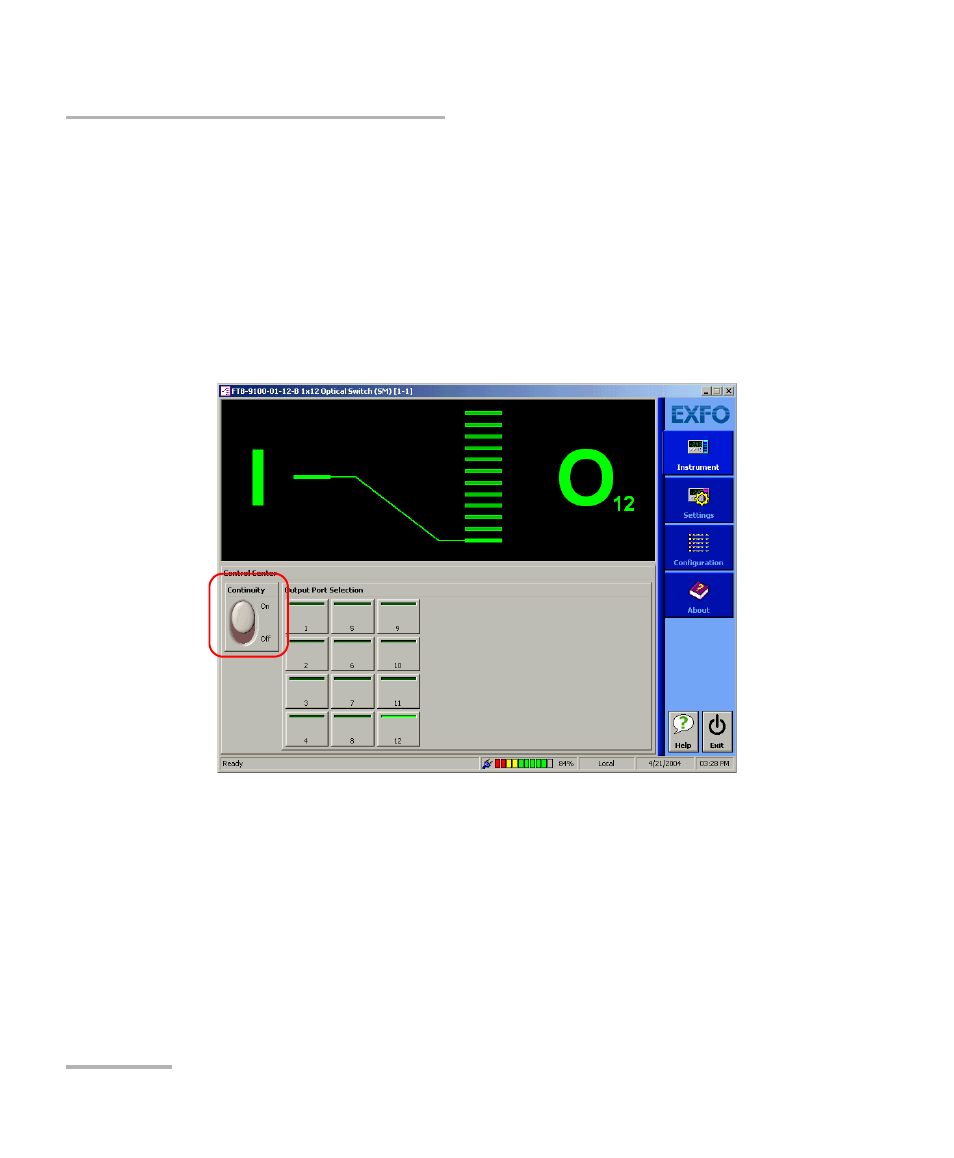

1. Set the Continuity switch to the On or Off position, depending on
whether or not you want the light signal to pass through the optical
switch.
2. In the Output Port Selection panel, select the port through which you
want to direct the light.
Note: You can change the output port at any time, and as many times as you
want. You cannot preset output switch port activation sequences You must
activate each port manually.
