Getting Started with Your Optical Switch

10

FTB-9100

Starting the Optical Switch Application

Starting the Optical Switch Application

Your FTB-9100 Optical Switch module can be configured and controlled
from its dedicated ToolBox application.

Note: For details about ToolBox, refer to the FTB-500 user guide.

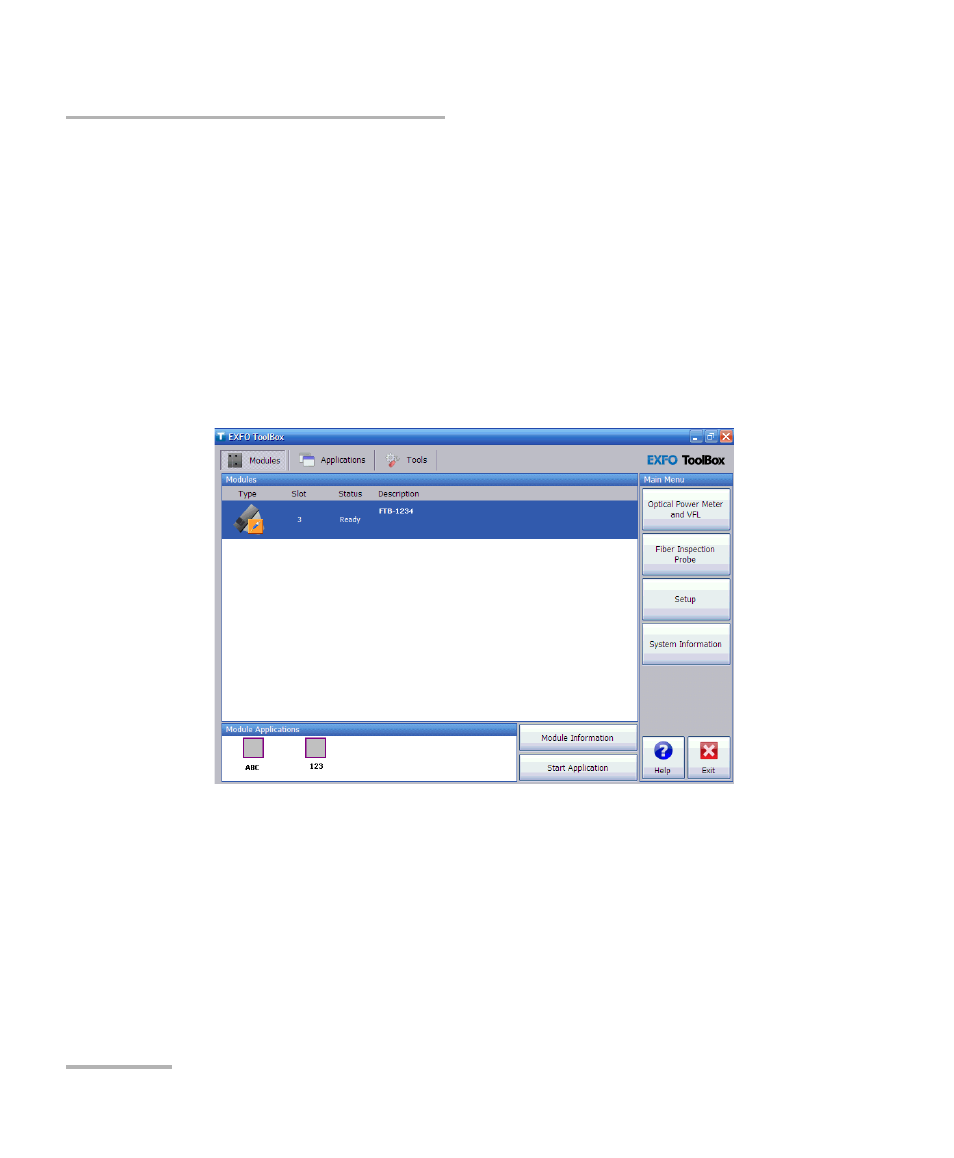

To start the application:
1.
From the main window, select the module to use.

It will turn blue to indicate that it is highlighted.

2. Click the corresponding button in the Module Applications box.
