Managing Results
184
FTB-5230S/-OCA
Managing WDM Test Results

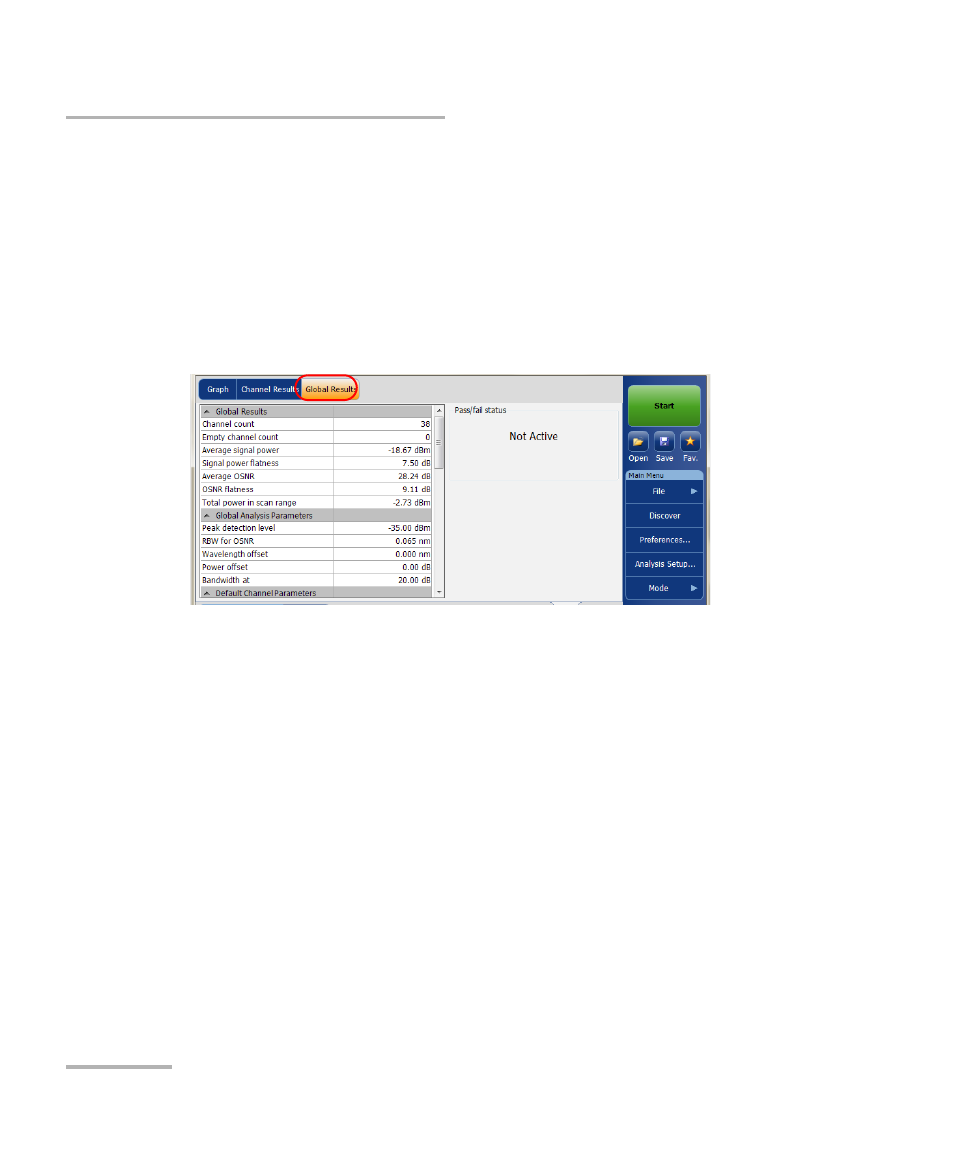

Global Results Tab
The application allows you to view the global results of the current
measurement. The pass/fail verdict for thresholds are displayed in the
Global Results tab. If the verdict is fail for any parameter, its value appears
in red. If the verdict is pass, its value appears in green.
To view global results:
From the main window, select the Global Results tab.
Results and analysis parameters global to all channels will be displayed.
For more information on each item, see Defining Global Thresholds on
page 70 and Defining General Settings on page 62.
In addition, you can view the global pass/fail status, provided the
thresholds are activated in the Global Result Thresholds tab in the
Analysis Setup window. If the thresholds are enabled, the Global pass/fail
status pane will display a Pass or Fail status based on the global results, or
Not Active if the thresholds are disabled.
Note: Values displayed in the Global Results tab are indicated for the active trace
only.
