EXFO FTB-5230S Optical Spectrum Analyzer for FTB-500 User Manual
Page 15
Getting Started with Your OSA/OCA
OSA/OCA
9
Inserting and Removing Test Modules
7. While applying slight pressure to the module, turn the retaining screw
clockwise until it is tightened.
This will secure the module into its “seated” position.
When you turn on the unit, the startup sequence will automatically detect
the module.

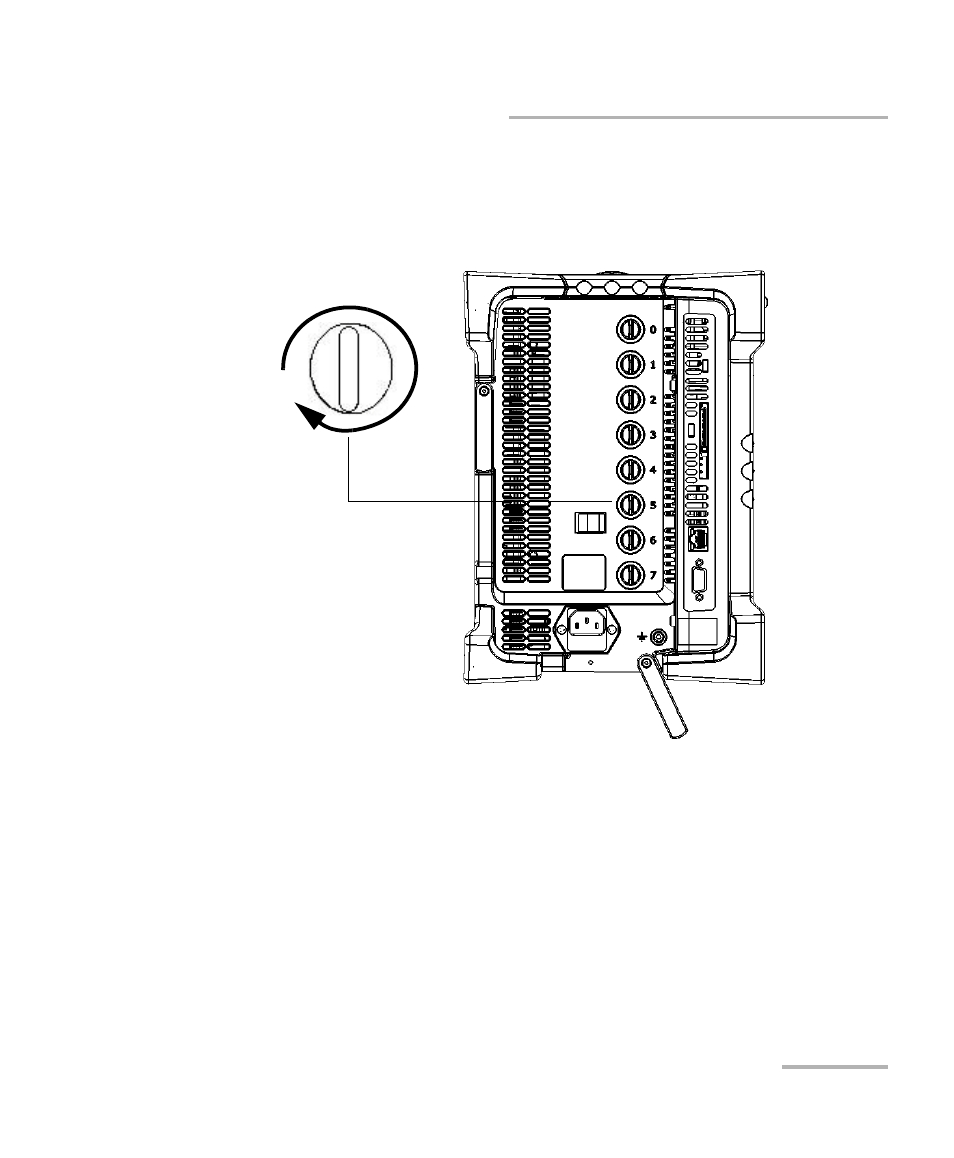

Turn retaining screw knob
clockwise
FTB-500 left panel
