152
A p p e n d i x A B a c k P a n e l R e f e r e n c e

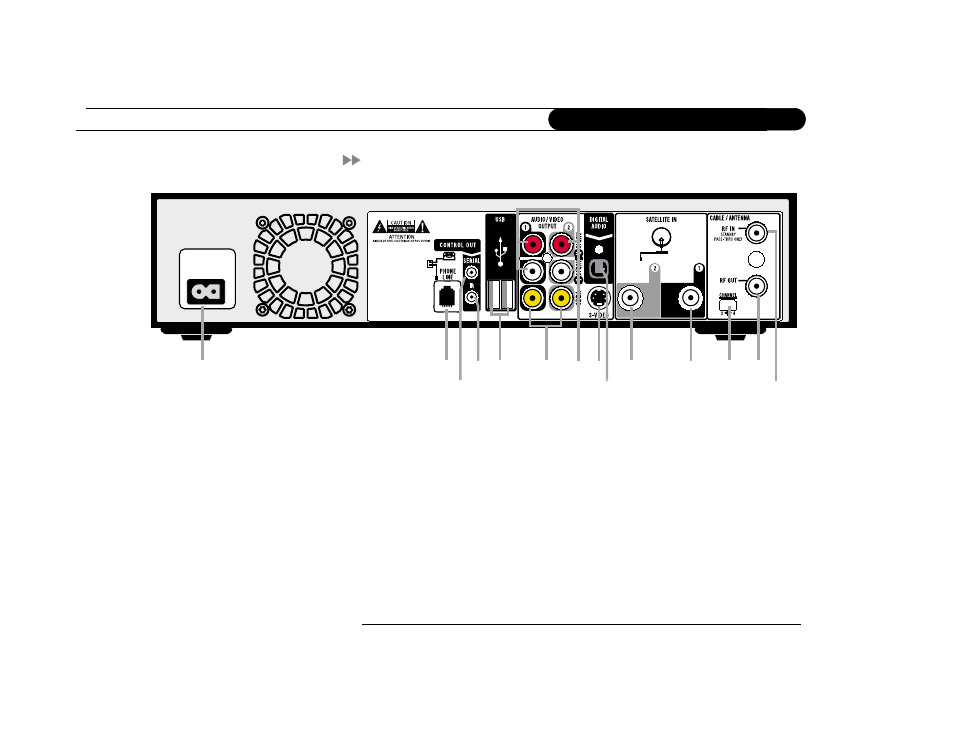

Back Panel Reference
This section describes the use of the connection jacks and switch on the back panel of the
DIRECTV ® Digital Satellite Recorder. If your setup doesn’t match any of the examples,
you can use this information for general reference as you set up your equipment.
1. AC ~ In: When you’ve finished making all of the other connections, plug the AC
power cord (supplied) into this opening to turn on the recorder. The recorder does not
use a separate on/off switch; plugging it in switches it on.
2. Phone Line: Connect the recorder to your phone line using the telephone cord
(supplied) and optional telephone line splitter (supplied). Your recorder needs to be
connected to a phone line to receive updates from DIRECTV. The recorder
occasionally makes a brief phone call to get updates to the DVR service and
AC~In
1 2
3
4 5 6 7 8
9
10 11 12 13
14
