EX-6100 ENMET Corporation
8
4.0 Operation
The EX-6100 incorporates magnetically operated switches to allow non-intrusive operation of the menu system. To ‘press’ the switch
requires movement of the stylus pen over the appropriate button. The key press LED will light to indicate that the button press is being
detected. In some instances it may be necessary to hold the pen over the button for sufficient time to allow the microcontroller to determine
the key that has been pressed.
Description
EX-6100 GAS DETECTOR
EX-6100 GAS DETECTOR FITTED WITH
PROTECTIVE WEATHERGUARD

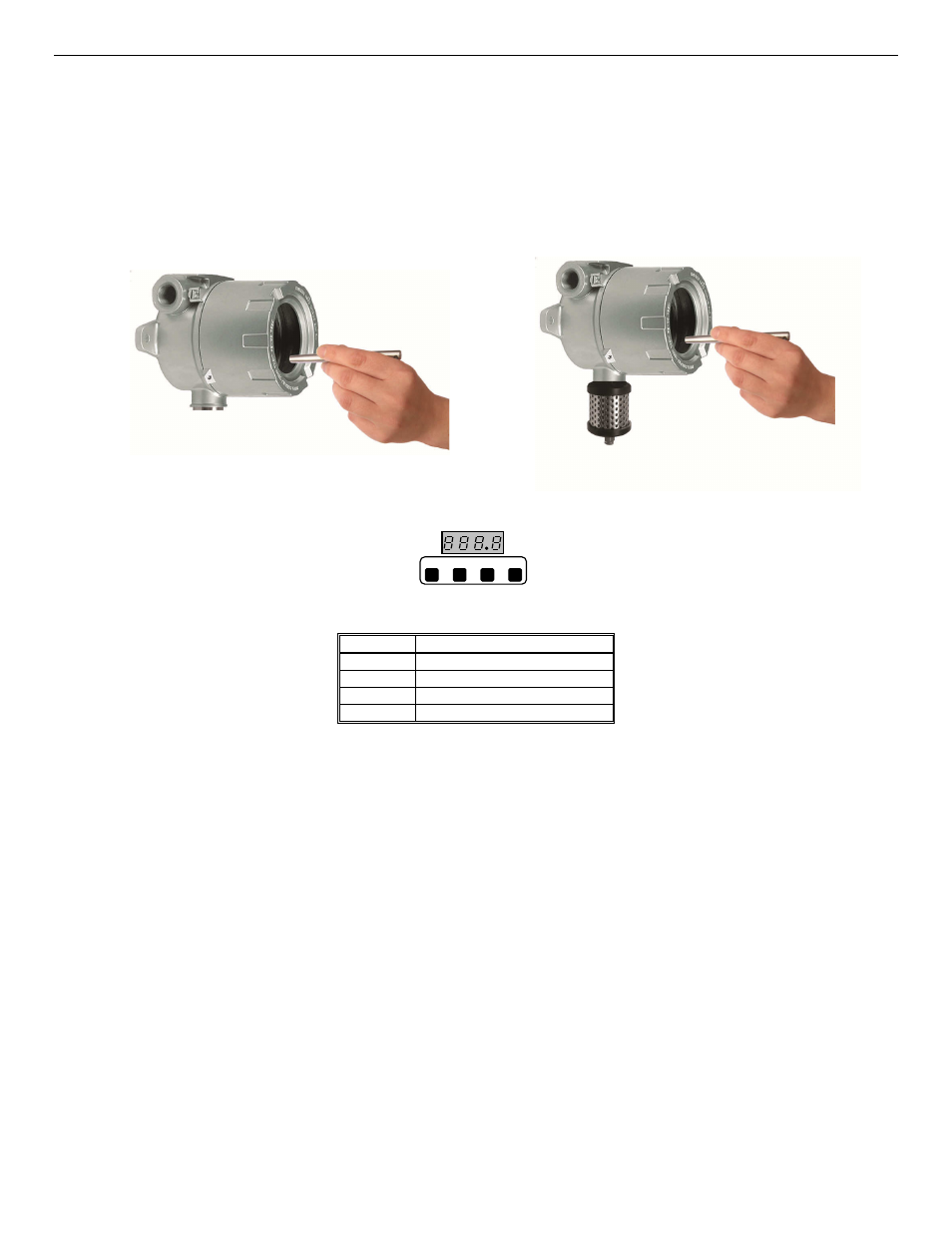

Figure 10: Operation of Magnetic Switches
The menu system featured within the EX-6100 allows all calibration and configuration activities to be performed.
Table 1: Magnetic Keypad Functionality
Button Function
MENU Open / Close Menu
UP Next / Increase
DOWN Previous / Decrease
ENTER Accept selection
This section of the manual discusses how the zero and calibration menu options can be accessed. Additional menu option associated with the
operational parameter may be changed via the menu mode section 11.
MENU UP DOWN ENTER
