3.0 Installation

3.0 Installation

3.0 Installation

3.0 Installation

3.1 Installation Recommendations

The

MX48 C

ONTROL

can be installed anywhere away from an explosive atmosphere. It should preferably be located

in a ventilated area under surveillance such as a, guard post, control room, instrumentation room, etc.

N

OTE

:

To be able to fully open the hinged front cover of the

MX48 C

ONTROL

, allow space for opening by rotating the

cover 90 degrees upwards see Figure 1.

The

MX48 C

ONTROL

is mounted on the wall with one bracket attached to the wall and the mating bracket is on the

back of the enclosure. See Figure 2

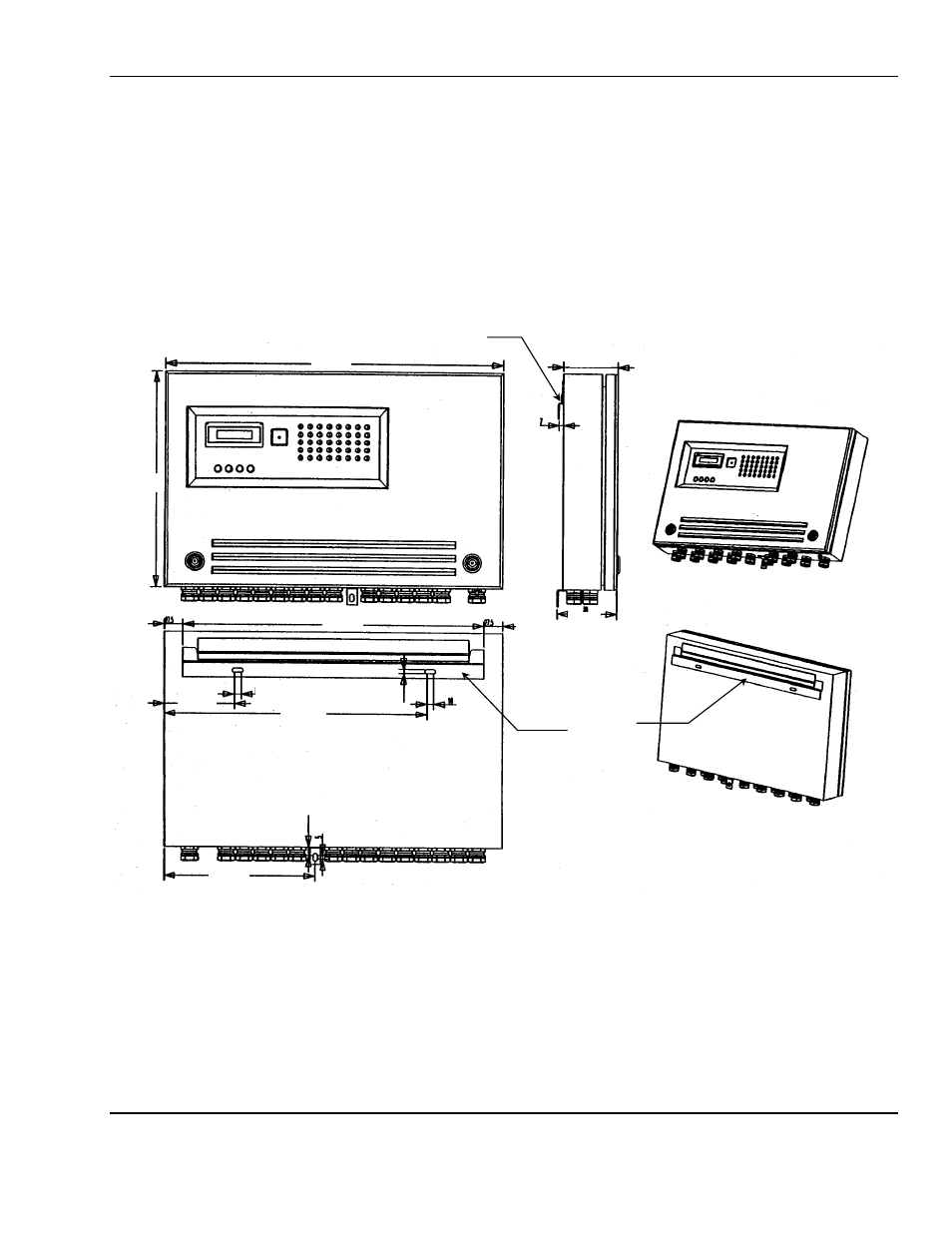

Figure 2: Mounting MX48 C

ONTROL

19.75

12.50

3.75

.37

17.50

17.50

1.12

1.12

1.12

3.56

.25

.25

16.12

16.12

4.93

.62

8.87

.5

.31

Mounting

Bracket

Mounting Bracket

Front View

Front View

Back View
