MX48 C ONTROL ENMET Corporation
15

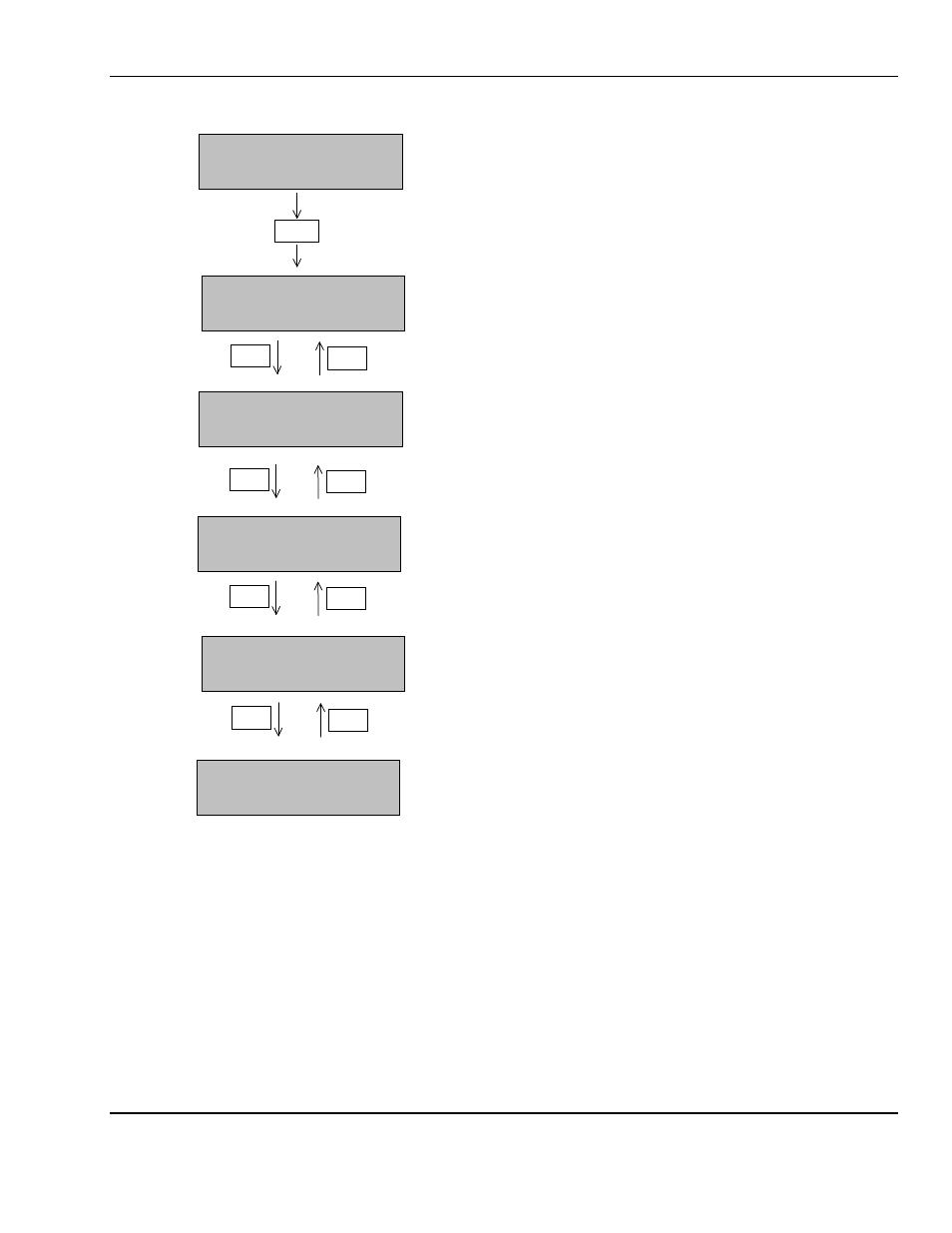

5.4 Bock Diagram of Scrolling Programming Menus
NORMAL
DISPLAY
P
Programming
[Channel xx]
– +
Programming
Simulation [Channel xx]
– +
Programming
Copy [Channel xx]
– +
Programming
Control Unit
– +
Programming
Reprogramming
To program the whole configuration of a channel
(ON/OFF, range, alarm thresholds, etc...)
See section 5.4.1
To artificially vary a channel measurement on:
- the display panel,
- the 4-20 mA current output.
To trigger the alarms (LED and relays) at the same time.
See section 5.4.2
To copy the complete programming from one channel to another
(time saving) See section 5.4.3
To program the whole configuration of the MX48 C ONTROL
(language, slave number, etc.). See section 5.4.4
To transfer data, measurements and events, etc., from the unit to a
computer via the
MX48 C ONTROL RS 485 / J BUS output.
See section 5.4.5
See section 4.3.4
