QUADRANT ENMET Corporation
15
QUADRANT Harness
Optional holster assembly.

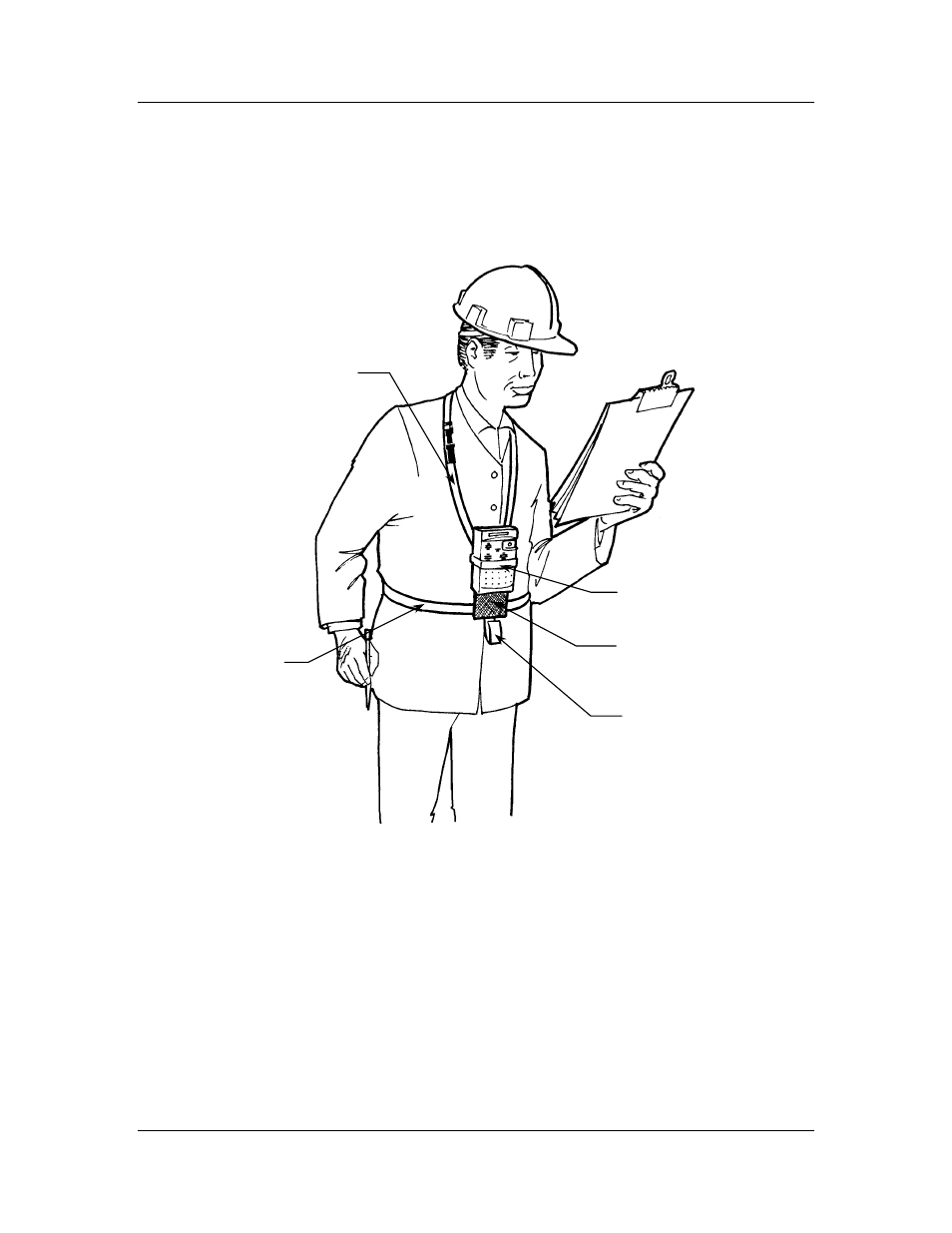

C
HEST
M
OUNT CONFIGURATION
F
OR
Q
UADRANT
H
ARNESS
H
OLSTER
A
SSEMBLY
Instructions:
ƒ The shorter strap (Yellow Neck Loop) at the top of the base pad loops around the neck of the user.
Adjust the strap length so that the instrument is at the center of the chest to ensure good visibility of
the LCD display. Lengthen neck loop and rotate harness 90
° for underarm holster mounting
configuration.
ƒ The Longer yellow strap (Yellow Waist Belt) at the bottom of the base pad is to be adjusted to fit
around the waist. Adjust for comfortable mounting of the instrument so that it does not bounce against
the chest or waist.
ƒ Insert the QUADRANT instrument from the top of the harness into the 4 inch yellow loop portion of
the harness. Keep the belt clip toward the wearer’s chest. The final one inch of the insertion process
should be done with the spring-mounted belt clip in the “open” position. Allow the clip to snap in
place over the top of the harness pad as the instrument slides down into place. This will secure the
instrument firmly in the harness/holster assembly.
Yellow Neck Loop
(Lengthen neck loop and rotate
harness 90 ° for underarm
holster mounting configuration)
Yellow Waist Belt
Yellow Loop for
Holding Sampler Hose
Black Velcro  for Mounting
Motorized Sample Pump
Yellow Loop for
Instrument Restraint
