DCC2 User Manual
EMM OptiLink
This EMM Labs proprietary link is used for the best performance with a EMM Labs
transport system. The cables used are standard ST glass (multimode). The link consists
of 2 connections, one for data and one for clock. If the DCC2 is operated in clock master
mode a third connection is necessary, which can be established with a ST glass optical
cable as well to maintain the galvanic separation between transport and DCC2.

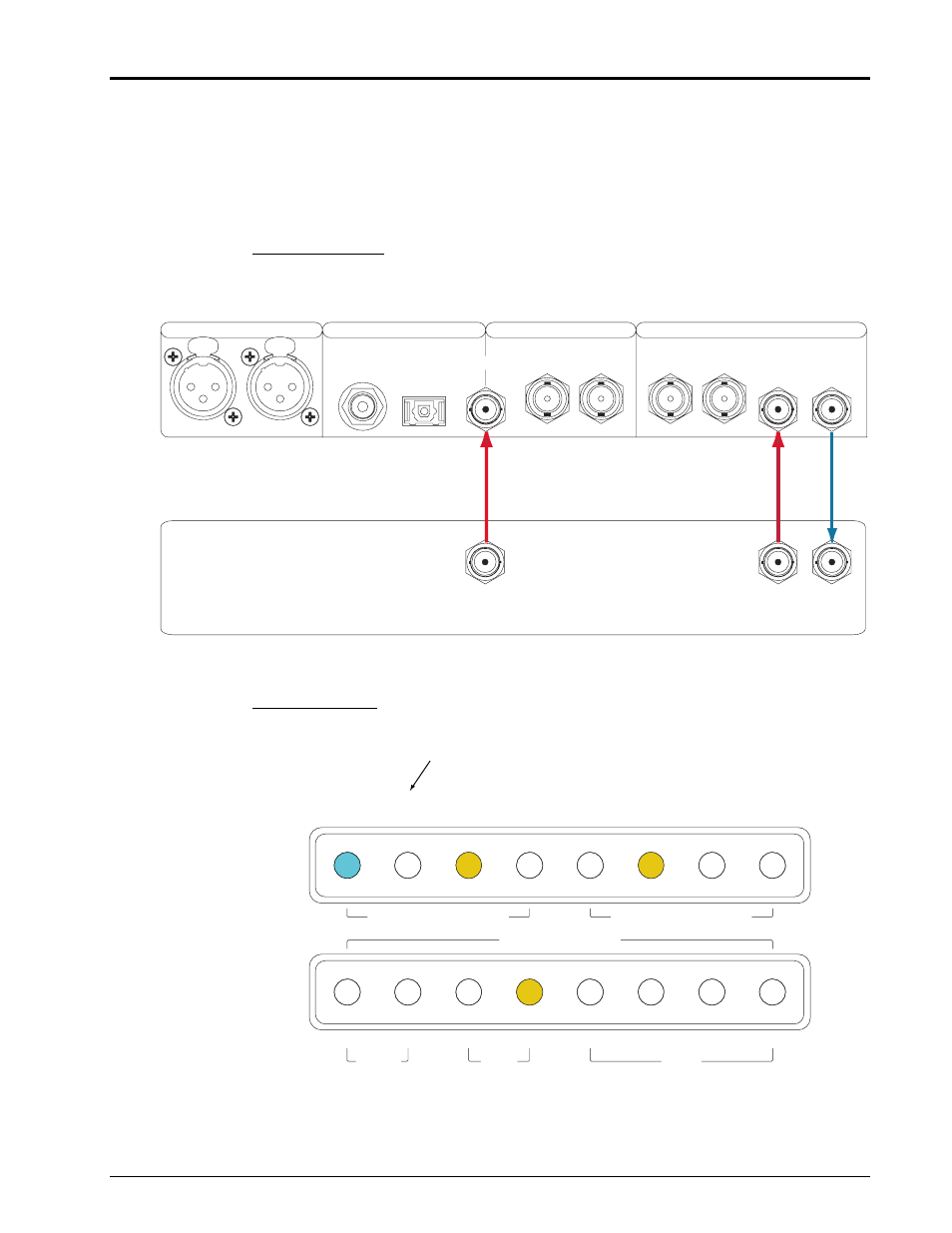

Cable connections:
AES/EBU INPUTS WORD CLOCK I/O
IN IN OUT OUT
DSD INPUTS S/PDIF INPUTS
COAX
2 1
TOS ST BNC L R
PUSH PUSH
OPTICAL
CLOCK
OUT
OPTICAL
CLOCK
IN
ST OPTICAL
DATA OUT
DCC2 Digital Input Connectors
CD/SACD Transport or other Source
DCC2
CD
Deck
3 Optical cables
with ST connectors
Front panel setup:
NARROW WIDE INVERTED 48 KHZ 44.1 KHZ LOCK CLOCK
COAX TOS ST ST BNC RCA XLR
INPUT SELECT
AES
PCM DSD ANLG
ANALOG OUTPUT CLOCK CONTROL
DIGITAL BW BASE FS
MUTE
POLARITY EXT
Set this option for clock slave mode !
9
