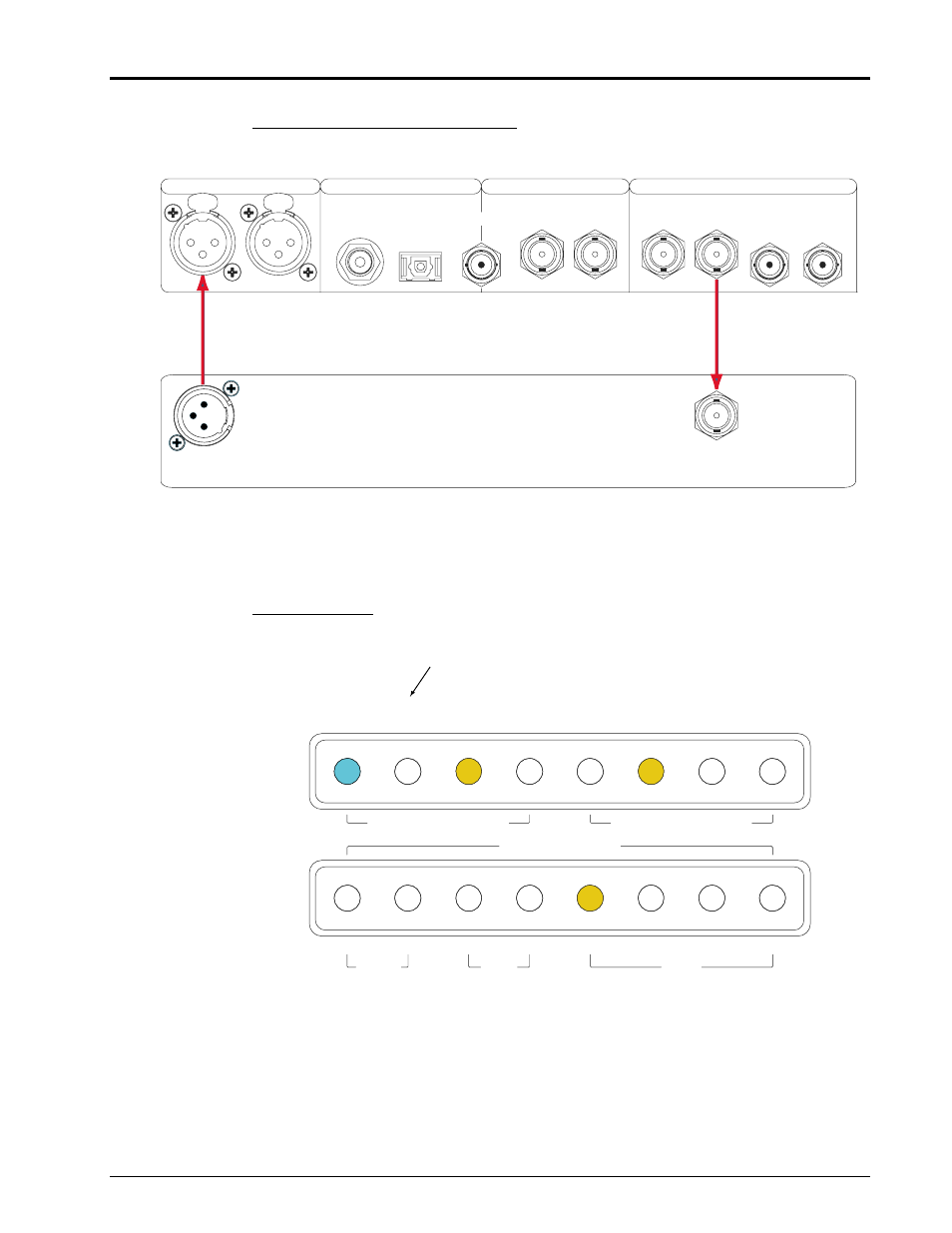

Cable connections for AES/EBU input:
AES/EBU INPUTS WORD CLOCK I/O
IN IN OUT OUT
DSD INPUTS S/PDIF INPUTS
COAX
2 1
TOS ST BNC L R
PUSH PUSH
BNC
CLOCK
IN
AES/EBU
DATA OUT
DCC2 Digital Input Connectors
CD/SACD Transport or other Source
DCC2
CD
Deck
AES/EBU cable with XLR connectors
BNC clock cable
(required only for
clock master mode)
Front panel setup:
NARROW WIDE INVERTED 48 KHZ 44.1 KHZ LOCK CLOCK
COAX TOS ST ST BNC RCA XLR
INPUT SELECT
AES
PCM DSD ANLG
ANALOG OUTPUT CLOCK CONTROL
DIGITAL BW BASE FS
MUTE
POLARITY EXT
Set this option for clock slave mode !
