Infrared Remote Control
The remote control included with the DCC2
provides many functions for the EMM Labs
CDSD transport system as well. The functions
that are relevant to the DCC2 specifically are

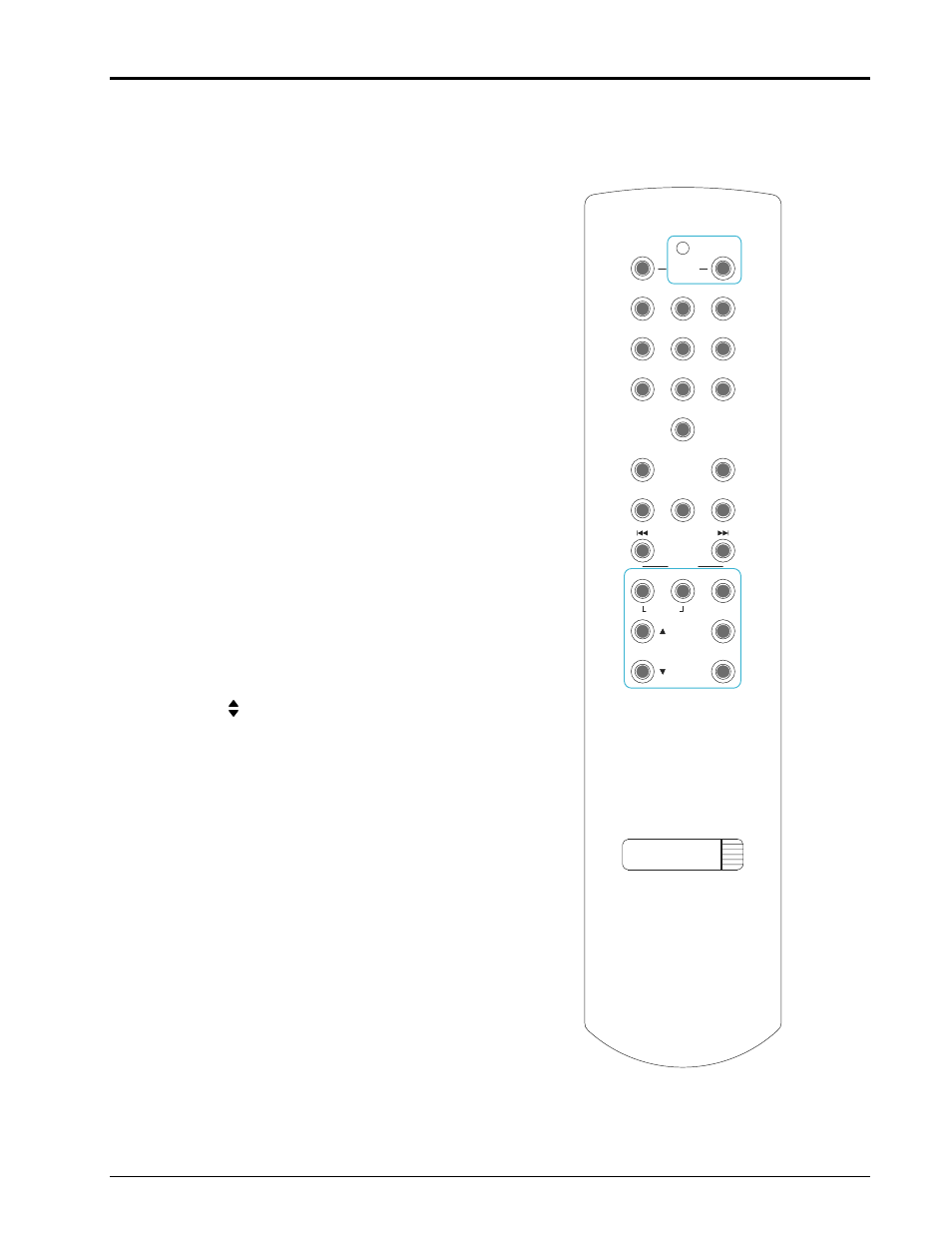

highlighted in blue rectangles in the drawing on
the right.
DISPLAY – DCC2: This function toggles the
front panel display on the
DCC2 on and off. When off
and pushing any button on
the remote or front panel or
adjusting the volume will
turn the display on for about
3 seconds and then turn it
off again automatically.
ANALOG XLR:
This selects the analog XLR
input
ANALOG RCA:
This selects the analog
RCA input
DIGITAL:
This selects the digital input
that was last chosen via the
front panel.
VOLUME :
This adjusts the volume
setting up or down. When
pressed for more than 3
seconds the volume will
start scrolling automatically.
PHASE:
Toggles the phase of the
audio signal between
normal and inverted.
MUTE:
Mutes all outputs
ANALOG
VOLUME
INPUT
XLR
