DCC2 User Manual
Coax (SPDIF) input
This link can operate for sample frequencies up to 96kHz. The DCC2 detects the correct
frequency and adjusts automatically. Also with this link the DCC2 can be operated in
either clock master or clock slave mode.

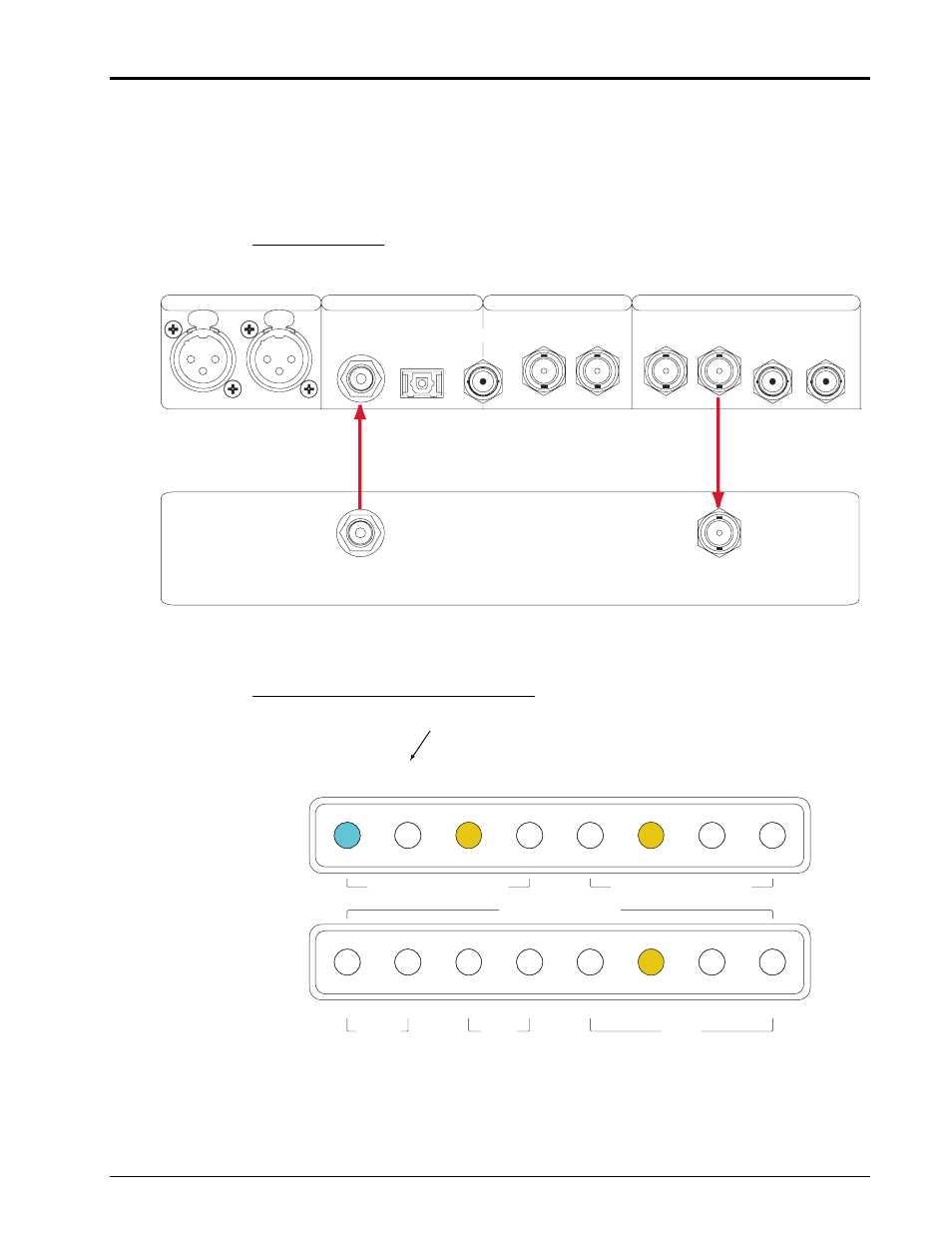

Cable connections:
AES/EBU INPUTS WORD CLOCK I/O
IN IN OUT OUT
DSD INPUTS S/PDIF INPUTS
COAX
2 1
TOS ST BNC L R
PUSH PUSH
BNC
CLOCK
IN
COAX
DATA OUT
DCC2 Digital Input Connectors
CD/SACD Transport or other Source
DCC2
CD
Deck
BNC clock cable
(required only for
clock master mode)
Coax cable with
RCA connectors
Front panel setup for clock master mode:
NARROW WIDE INVERTED 48 KHZ 44.1 KHZ LOCK CLOCK
COAX TOS ST ST BNC RCA XLR
INPUT SELECT
AES
PCM DSD ANLG
ANALOG OUTPUT CLOCK CONTROL
DIGITAL BW BASE FS
MUTE
POLARITY EXT
Set this option for clock slave mode !
10
