E2424 exploded view & parts list – EmberGlo E2424 User Manual
Page 5
EmberGlo
A Division of Midco International Inc
8471 64
5
E2424 Exploded View & Parts List
3
17
1
2
4
8
18
15
16
14
11
10
9
12
13
6
Electric Broiler
Model E2424
7
5
Part No. Description
Qty
** Not Shown
1621-00 Grill Scraper
1
1625-04R Relay Repair Kit
1
8447-26 Transformer
1
AVOID ERROR IN PARTS SELECTION. When ordering, use
complete EmberGlo part number and description. Furnish
model
number, bill of material number and date code or serial
number from specifi cation plate
Item Part No. Description
Qty
1
1612-90 12″ Grate
w/out Element Clamp & Bolts
2
2
1609-50 Heating Element 208v 1500w
4
**
1609-00 Heating Element 240v 1500w
4
**
1609-20 Heating Element 440v 1500w
4
**
1609-30 Heating Element 480v 1500w
4
3
1611-00 Element Clamp
12
4
1711-01 E24 Rear Grease Trough Channel 1
5
8408-52 3 Wire Terminal Strip
2
6
1610-00 E Series Right Side Splatter Guard 1
7
8406-40 Switching Relay H-D
2
8
8450-12 6 Inch Leg
4
9
1704-01 E24 Leg Channel
2
10 1803-00 E24 Control Panel
1
11 1615-00 Red Indicator Light Assembly
2
12 1605-00 Grease Pan Front
1
13 1604-00 Grease Pan
1
14 8445-15 Infi nite Knob
2
15 4533-22 EmberGlo Name Plate
1
16 1807-02 E24 Hopper Kit
1
17 1610-10 E Series Left Side Splatter Guard
1
18 8425-20 Infi nite Switch
2

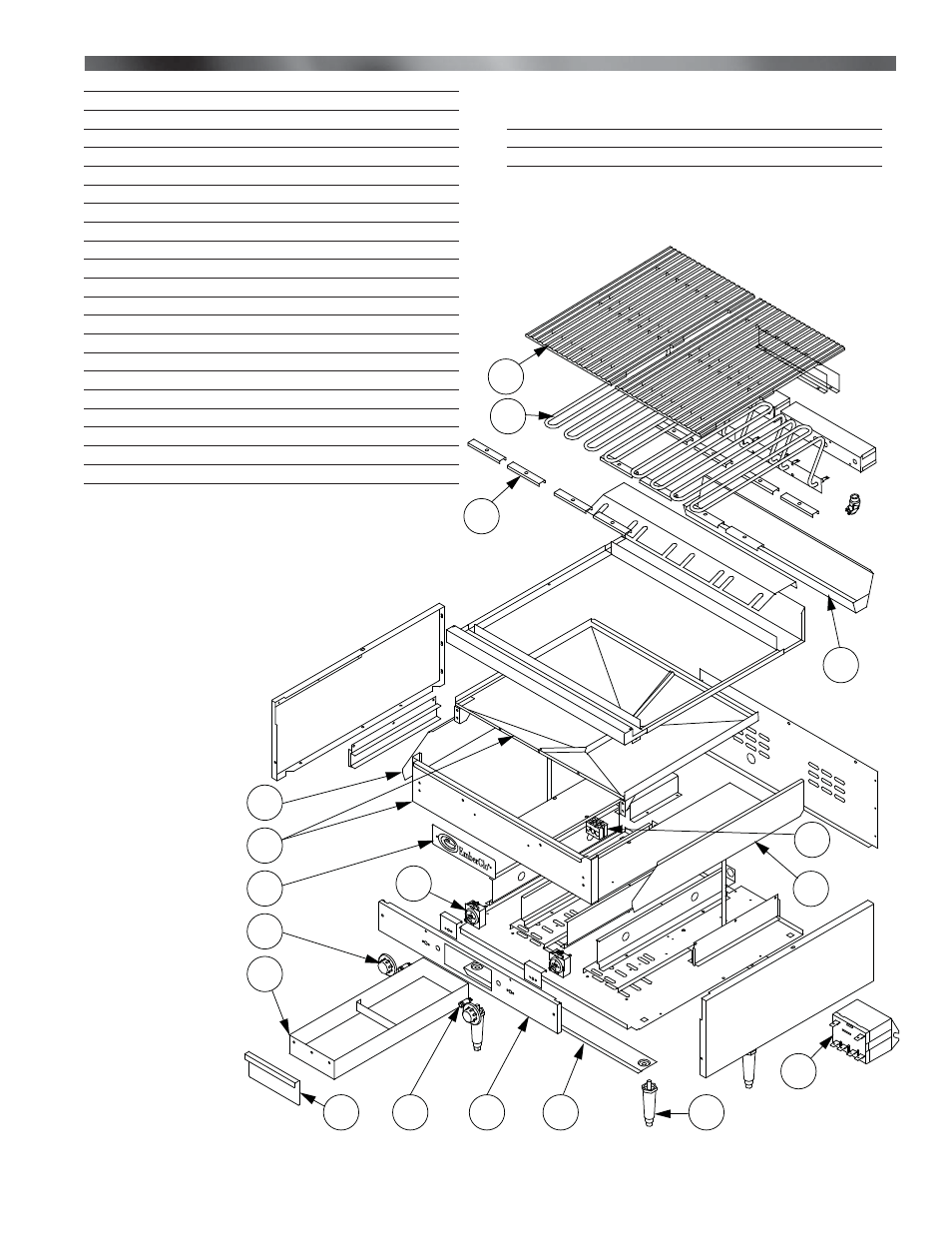

Figure 3 - Exploded View for E2424
