Schematics – EmberGlo E2424 User Manual

Page 3

background image

EmberGlo

A Division of Midco International Inc

8471 64

3

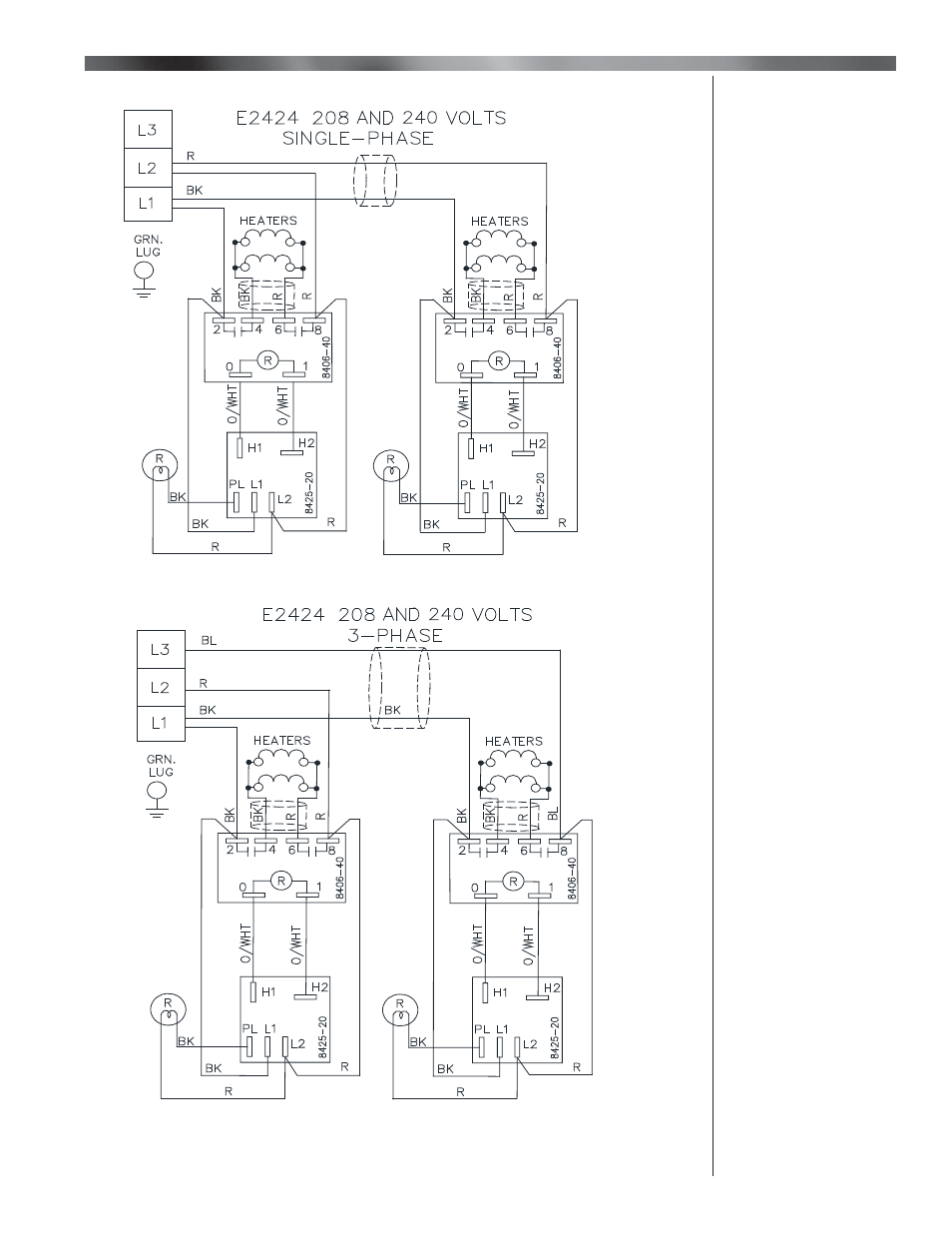

Figure 2A - E2424 Schematics for 208 V and 240 V for Single Phase and 3-Phase

Schematics

E2424 Electrical Wiring Schematic - 208 & 240 Volt

1600-23 (208 V)
and 1600-24 (240 V)
