THE FOLLOWING MOTOR AND ACCESSORIES ARE SUPPLIED FOR MODEL NO.
GM723 ONLY.

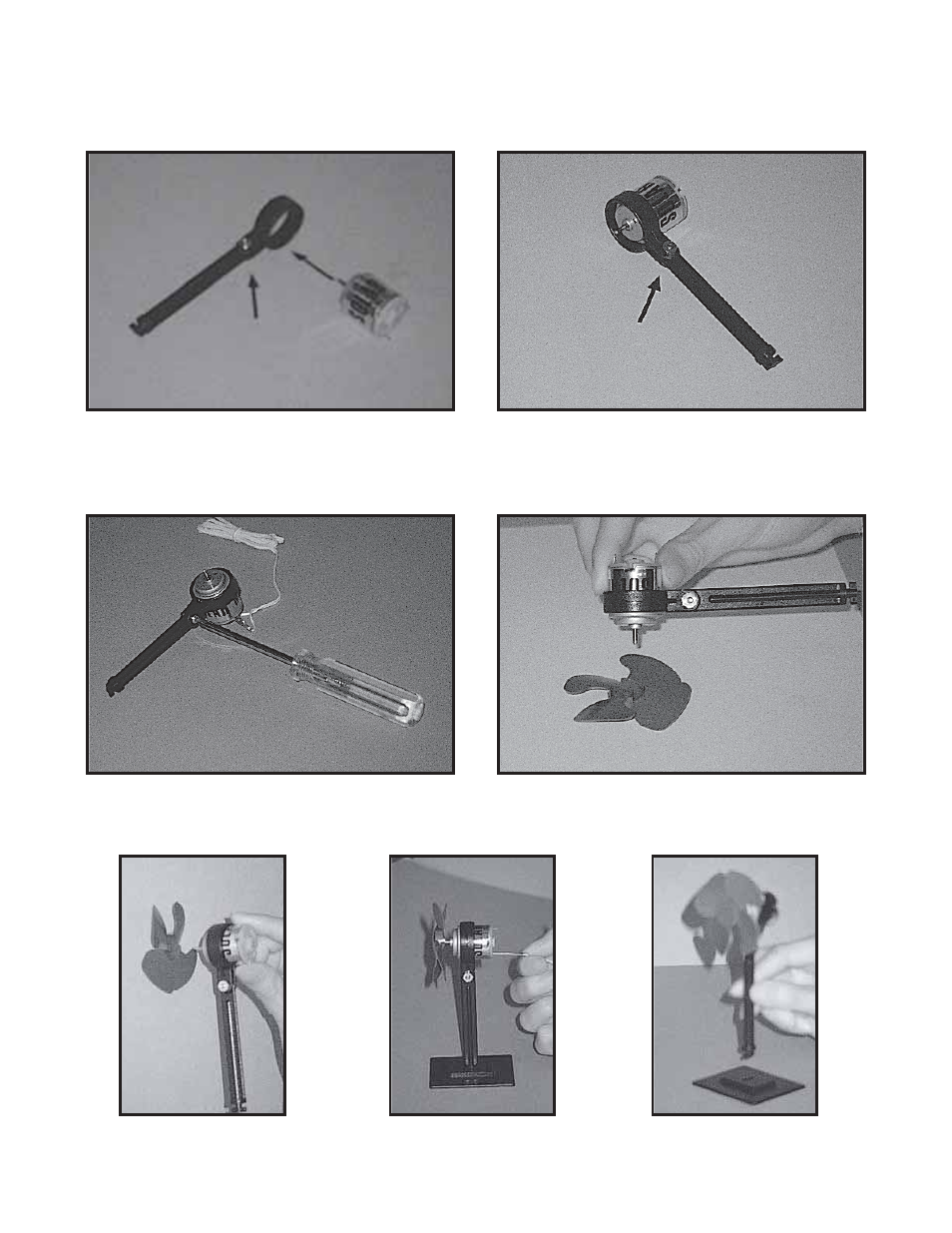

Insert the motor into the plastic holder
Figure 34
Tighten screw with screw driver and spanner
Figure 35
Loose screw from the plastic holder
Figure 36
Tighten the fan on the
spindle
Figure 38
Insert the plastic post in the
base key hole and tighten by
twist with 90 degree
Figure 39
Connect the wire to the
motor
Figure 40
Place fan on the spindle
Figure 37
