Elenco Deluxe Solar Educational Kit User Manual
Page 12
12
1.Place the solar panel to face sunlight
directly for the best performance.
2.If there is no sunlight and you prefer
unlimited operation, an artificial light source
can be utilized to power your model. The
distance from the artificial light of 100W
should be 5 inches approximately apart
from the solar panel. (For not more than 3
minutes as the heat may melt the plastic
frame)
4.5V 100mA recommended to power for musical unit,
battery charger, game appliances, etc...
3V 100mA connecting system: Screw point No.2
connected to No.3
No.1 and No.4 screws are the output
No.5 and No.6 screws can use for other appliance

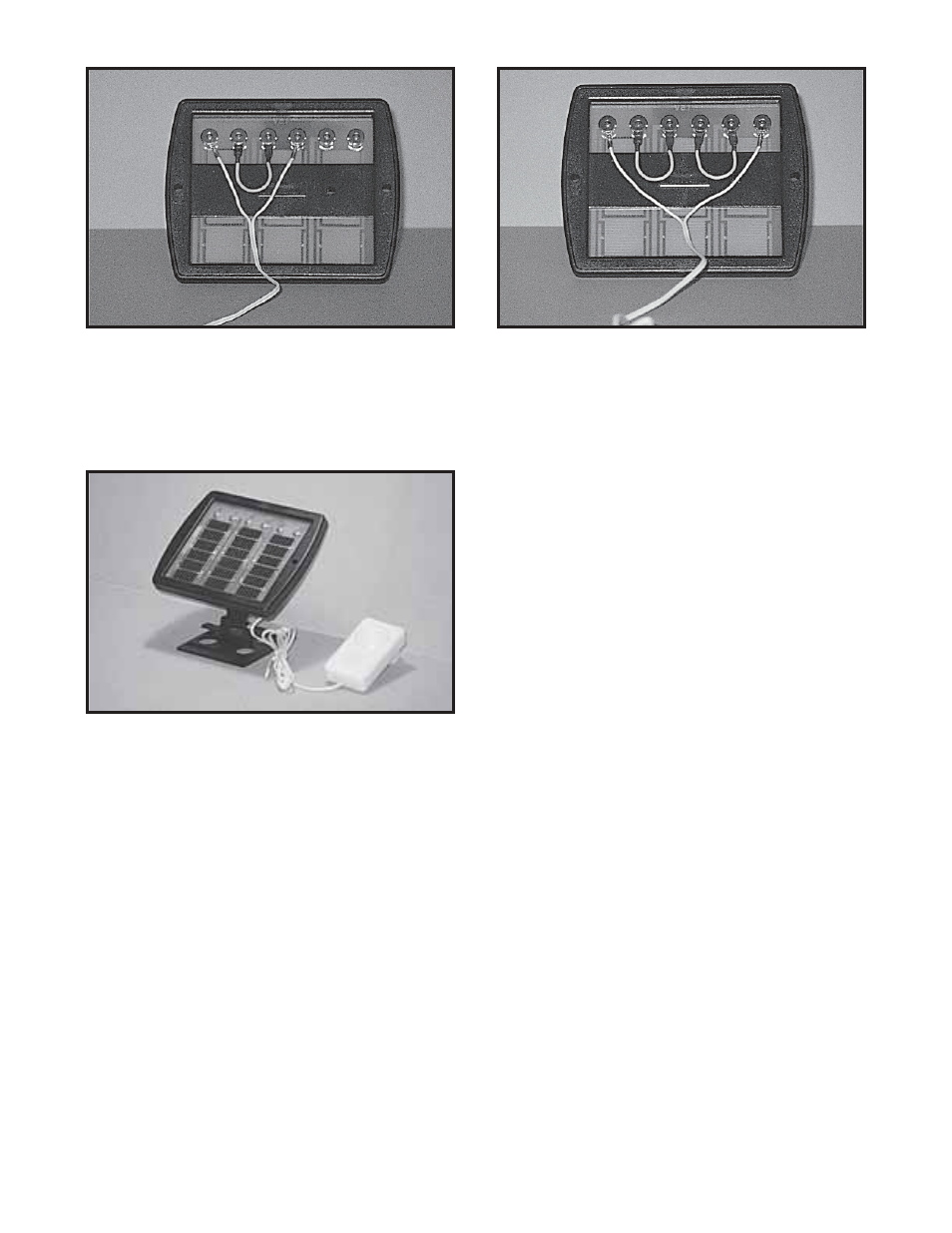

Figure 31
4.5V 100mA connecting system: Screw point No.2
connected to No.3
Screw point No.4 connected to No.5
No.1 and No.6 screws are the output
Figure 32
