Elenco Deluxe Solar Educational Kit - Manual (Page 11)

11
Angle Stand
Base Part

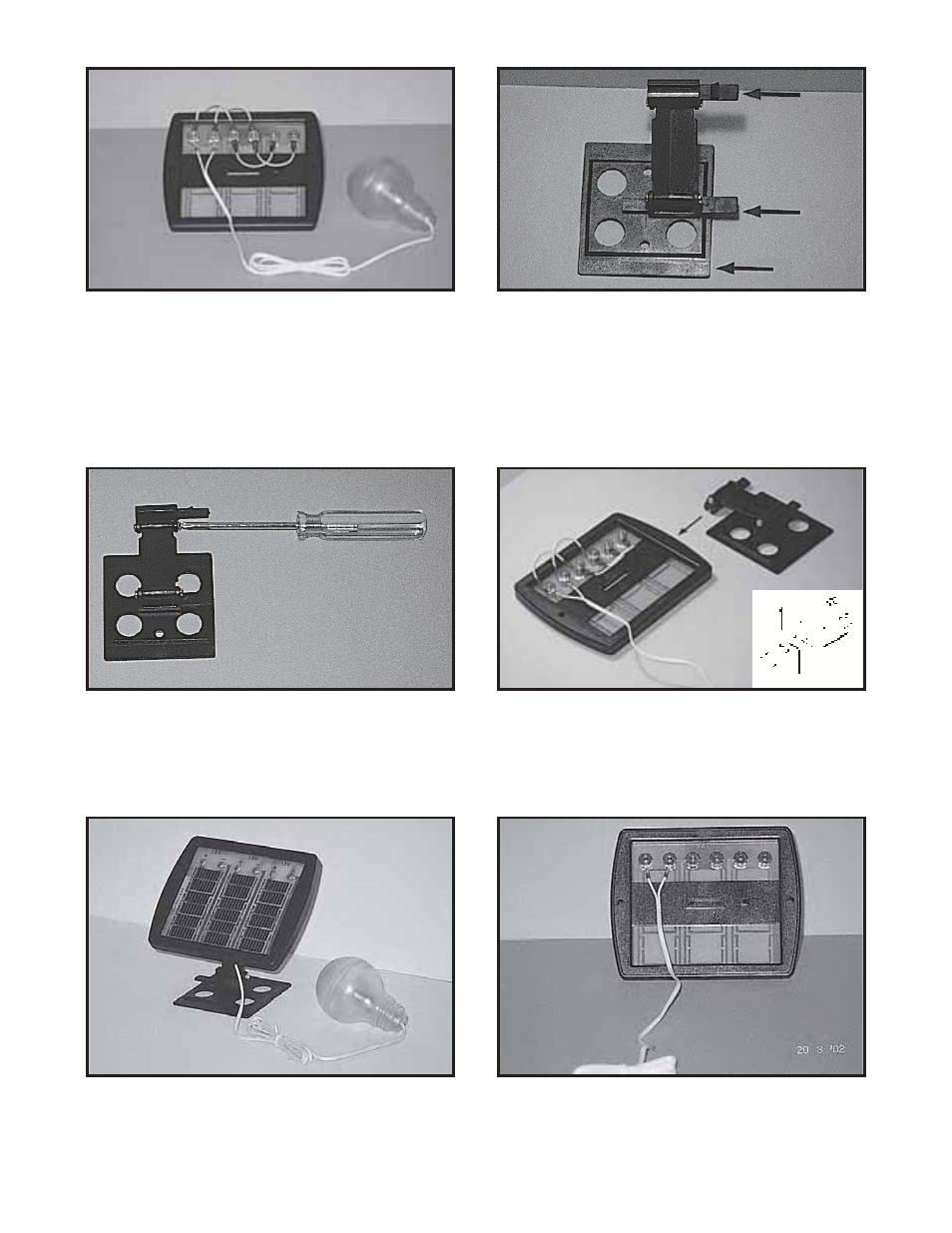

1.5V 300mA system Connect a lamp bulb, motor fan
or other appliances to the No.1 and No.2 screws.
Or it can be connected No.1 and No.6 as it is in the
same circuit.
Figure 25
1 2 3 4 5 6
Slide the angle stand to the base part
Figure 26
Tighten a little bit with screw driver for standing itself
or adjust angle position if necessary
Figure 27
Slide a stand set into the slot of the panel or release
by pull up the ‘against locker’ and slide it off
Figure 28
Adjust the angle position to face sunlight for the
maximum power
Figure 29
1.5V 100mA connecting system on No.1 and No.2
screws for the first appliance
No.3 and No.4 screws for the second appliance
No.5 and No.6 screws for the third appliance
Figure 30
Against Locker
Slide Off
Pull Up
Slide in per
arrow direction
