Install the following parts. Then, mark a check
þ in the box provided.
-5-

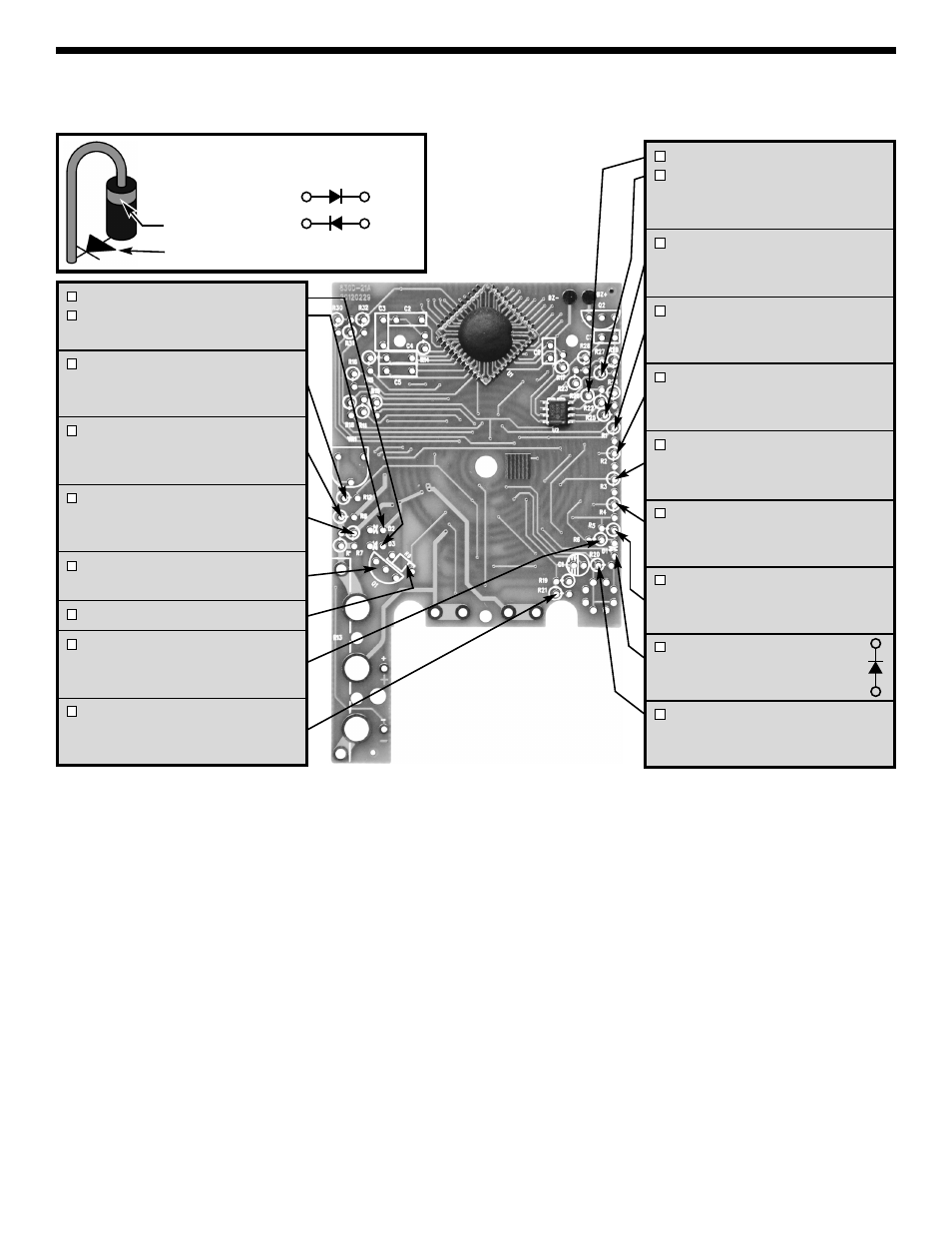

ASSEMBLY INSTRUCTIONS
Identify and install the following parts as shown. After soldering each part, mark a check
þ in the box provided.
Be sure that solder has not bridged to an adjacent pad.
R26 - 47k Ω 1% 1/4W Resistor
R27 - 47k
Ω 1% 1/4W Resistor
(yellow-violet-black-red-brown)
(see Figure A)
R25 - 220k
Ω 1% 1/4W Resistor
(red-red-black-orange-brown)
(see Figure A)
R1 - 100
Ω 0.5% 1/4W Resistor
(brown-black-black-black-green)
(see Figure A)
R2 - 900
Ω 0.5% 1/4W Resistor
(white-black-black-black-green)
(see Figure A)
R3 - 9k
Ω 0.5% 1/4W Resistor
(white-black-black-brown-green)
(see Figure A)
R4 - 90k Ω 0.5% 1/4W Resistor
(white-black-black-red-green)
(see Figure A)
R5 - 352k
Ω 0.5% 1/4W Resistor
(orange-green-red-orange-green)
(see Figure A)
D1 - 1N4007 Diode
(see Figure E)
R20 - 220k
Ω 1% 1/4W Resistor
(red-red-black-orange-brown)
(see Figure A)
D3 - 1N4007 Diode
D2 - 1N4007 Diode
(see Figure E)
R12 - 900
Ω 1% 1/4W Resistor
(white-black-black-black-brown)
(see Figure A)
R8 - 9 Ω 0.5% 1/4W Resistor
(white-black-black-silver-green)
(see Figure A)
R7 - 0.99
Ω 0.5% 1/4W Resistor
(black-white-white-silver-green)
(see Figure A)
Q1 - 2SA9013 Transistor
(see Figure C)
R9 - 1.5k
Ω PTC Resistor
R6 - 548k
Ω 0.5% 1/4W Resistor
(green-yellow-gray-orange-green)
(see Figure A)
R21 - 220k Ω 1% 1/4W Resistor
(red-red-black-orange-brown)
(see Figure A)
r Insert the narrow end of the three input sockets
into the PC board from the top legend, as shown
in Figure F. Solder the sockets to the PC board on
the top legend only. The solder should extend
completely around the socket (see Figure F).
r Insert the shunt wire (R13) into the PC board
holes from the component side as shown in
Figure F. Solder the wire to the PC board on the
component side only.
r Insert the 8-pin transistor socket into the PC board
holes from the solder side as shown in Figure F.
Be sure that the tab lines up with the hole as
shown in the figure. Solder the socket to the PC
board on the component side of the PC board as
shown in the figure and cut off excess leads.
r Insert the two fuse clips into the PC board holes
on the component side as shown in Figure F.
Solder the clips to the PC board.
r Solder the 11mm spring to the solder pad on the
top legend side of the PC board as shown in
Figure G.
Figure E
Stand diode on end. Mount with band as shown
on the top legend.
Band
Top legend marking on PC board
D2
D3
D1
