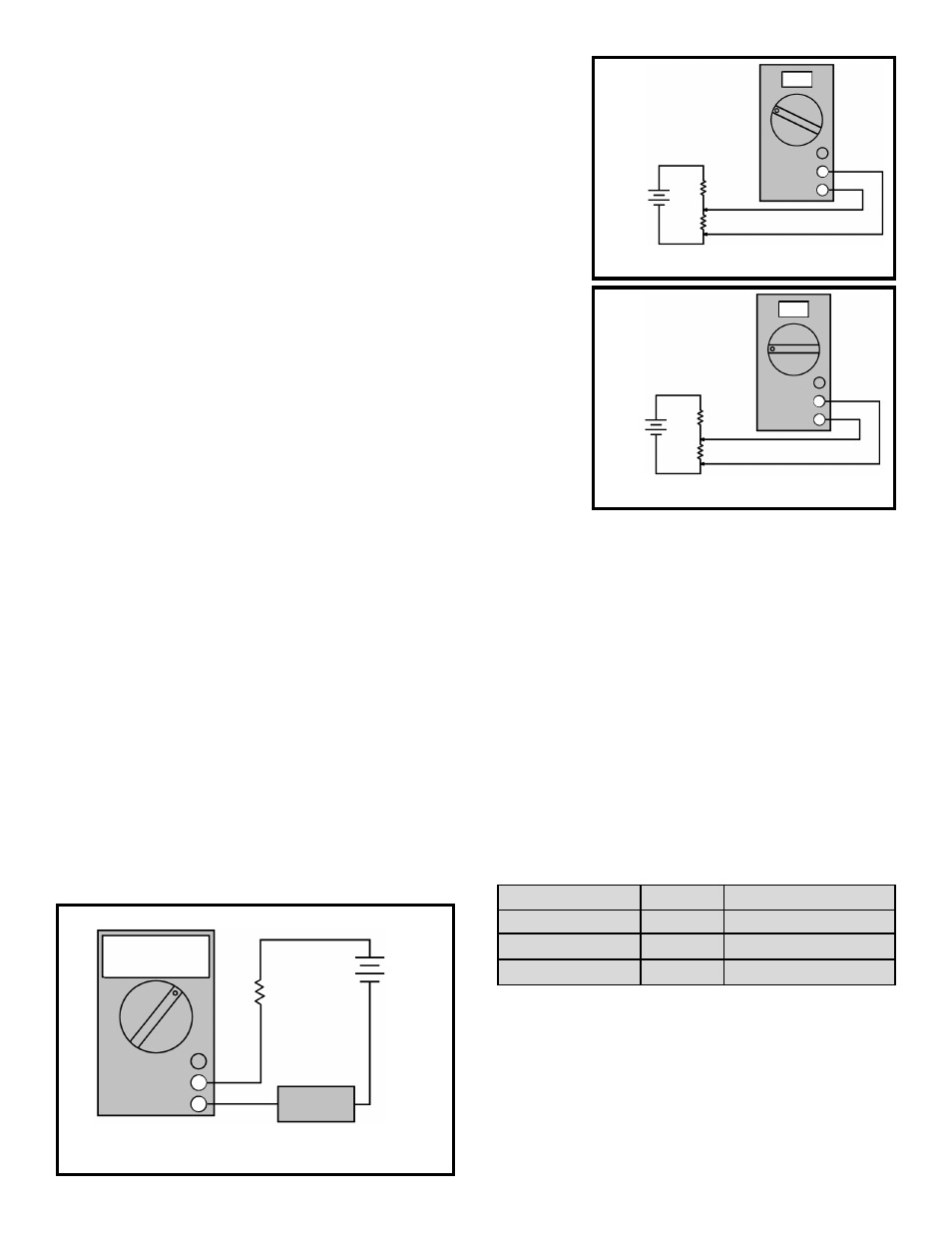

background image

DC AMPS TEST

1) Set the range switch to 200

μA and connect the

meter as in Figure Q. With R

A

equal to 100k

Ω the

current should be about 90

μA. Compare the

reading to a known accurate meter.

2) Set the range switch and R

A

as in the following

table. Read the currents shown and compare to a
known accurate meter.

If any of the above tests fail:
a) Check the fuse.
b) Check the value and soldering of resistors R7,

R8,R13,D2 and D3.

-9-

Figure Q

V

ΩmA

COM

10A DC

123

Accurate

Meter

R

A

9V

AC VOLTS TEST

To test the ACV ranges, we will need a source of AC
voltage. The AC power line is the most convenient.

CAUTION:

Be very careful when working with

120VAC. Be sure that the range switch is in the 200
or 600VAC position before connecting the test leads
to 120VAC.

1) Set the range to 200VAC and measure the AC

power line. The voltage should be about 120VAC.
Compare the reading to a meter of known
accuracy.

2) Set the range to 600VAC and measure the AC

power line. The voltage should be about 120VAC.
Compare the reading to a meter of known
accuracy.

If either if the above tests fail:

a) Check the values and the soldering of resistors

D1,R1-6 and R19.

b) Check that diode D1 is mounted as shown in the

assembly instructions.

Range Switch

R

A

Current (approx.)

2mA

10k

Ω

900

μA

20mA

1k

Ω

9mA

200mA

470

Ω

19mA

DC VOLTS TEST

Figure O

1k

Ω

10A DC

V

ΩmA

COM

100

Ω

9V

123

Figure P

10k

Ω

10A DC

V

ΩmA

COM

100

Ω

9V

123

1) If you have a variable power supply, set the supply to about the

midpoint of each of the DCV ranges and compare the kit meter
reading to a meter known accuracy.

2) If you do not have a variable power supply, make the following two

tests:

a) Set the range switch to 2V and measure the voltage across

the 100

Ω resistor of Figure O. You should get about 820mV.

Compare the reading to a meter of known accuracy.

b) Set the range switch to 200mV and measure the voltage

across the 100

Ω resistor of Figure P. You should get about

90mV. Compare the reading to a meter of known accuracy.

If any of these tests fail:

a) Recheck the meter calibration.

b) Check the value and the soldering of resistors R1 - R6, R10 - R12,

R14 - R17, VR1, and capacitor C4.
