Project pc5, Electronic noisemaker pc, Objective: to demonstrate storage mode – Elenco PK101 w/ Computer Interface User Manual
Page 18
+9V
S
P
33k
Ω
473
470
Ω
502
Project PC5
OBJECTIVE: To demonstrate storage mode.
Electronic Noisemaker PC

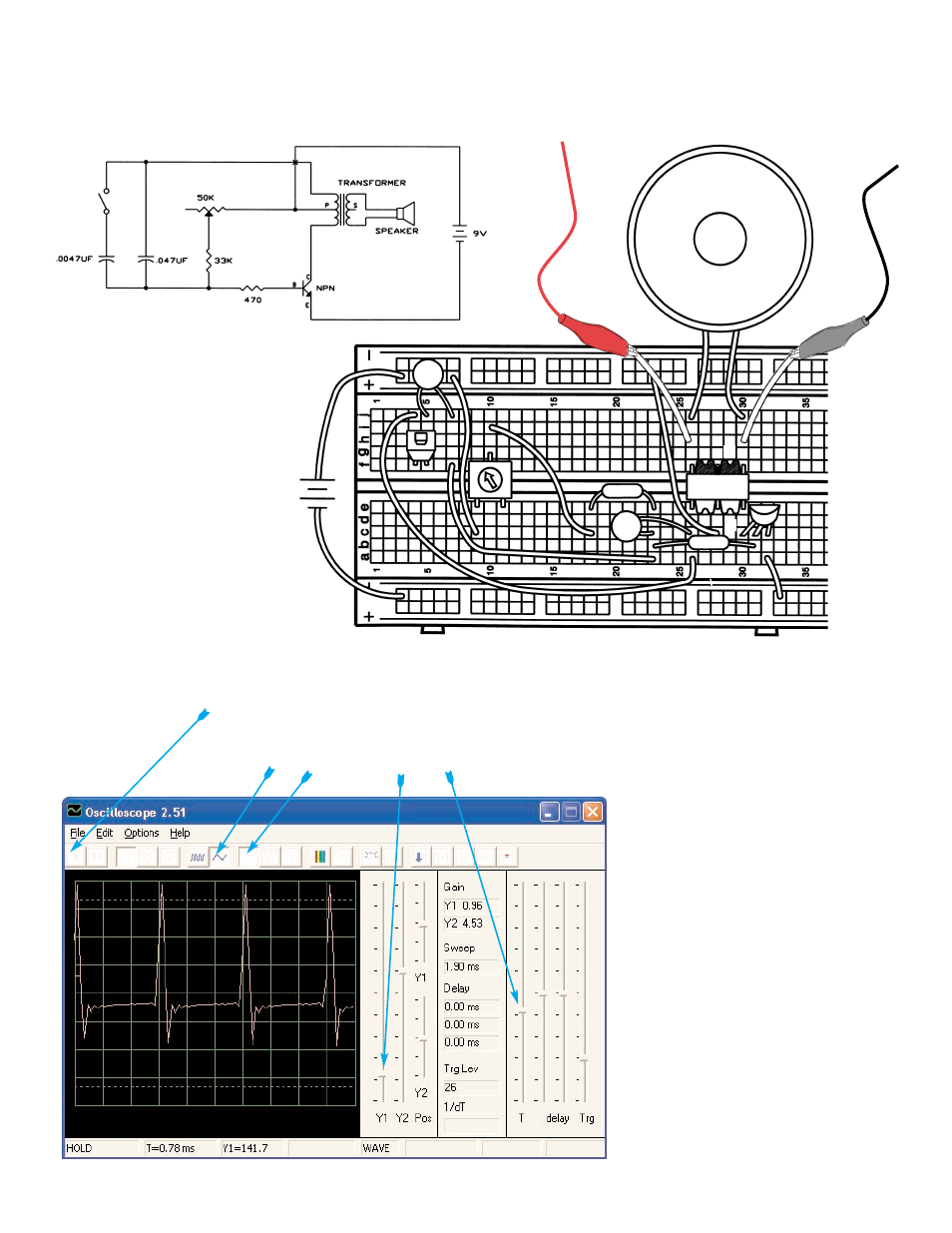

Build the circuit shown, connecting the battery last since it will turn the circuit on. If continuing from the
previous experiment then close the Winscope program and run it again, to reset the settings. Click on
the On-Line button to activate, and press the switch several times. Set Winscope to the settings shown
below, and move the knob on the variable resistor around to change the waveform and the sound. A
sample waveform is shown here, but the pattern and shape of the pulses depends on the variable
resistor setting.
-18-
SPEAKER
