PARTS LIST
If you are a student, and any parts are missing or damaged, please see instructor or bookstore.
If you purchased this kit from a distributor, catalog, etc., please contact Elenco
® Electronics (address/phone/e-mail
is at the back of this manual) for additional assistance, if needed. DO NOT contact your place of purchase as they
will not be able to help you.
RESISTORS
Qty. Symbol Description Color Code Part #
r 1
R1 Resistor 47
Ω 5% 1/4W
yellow-violet-black-gold 124700
r 1
R3 Resistor 680
Ω 5% 1/4W
blue-gray-brown-gold 136800
r 1
R2 Resistor 270k
Ω 5% 1/4W
red-violet-yellow-gold 162700
CAPACITORS
Qty. Symbol Description Part #
r 1
C2 Trimmer Cap 5-40pF 201088
r 1
C3 Capacitor 47pF (47) 214710
r 1
C1 Capacitor 100pF (101 or 100) 221017
r 1
C4 Capacitor 470pF (471 or 470) 224717
SEMICONDUCTORS
Qty. Symbol Description Part #
r 1
Q1 Transistor 2N3904 323904
r 1
Q2 Transistor MPSA56 320056
MISCELLANEOUS
Qty. Description Part #
r 1
PC Board 517001
r 6” Wire black 22ga Solid
814120
r 6” Wire red 22ga Solid
814220
r 6” Wire green 22ga Solid
814520
r 6” Wire gray 22ga Solid
814820
r 6” Wire enamel 28ga
857220
-1-

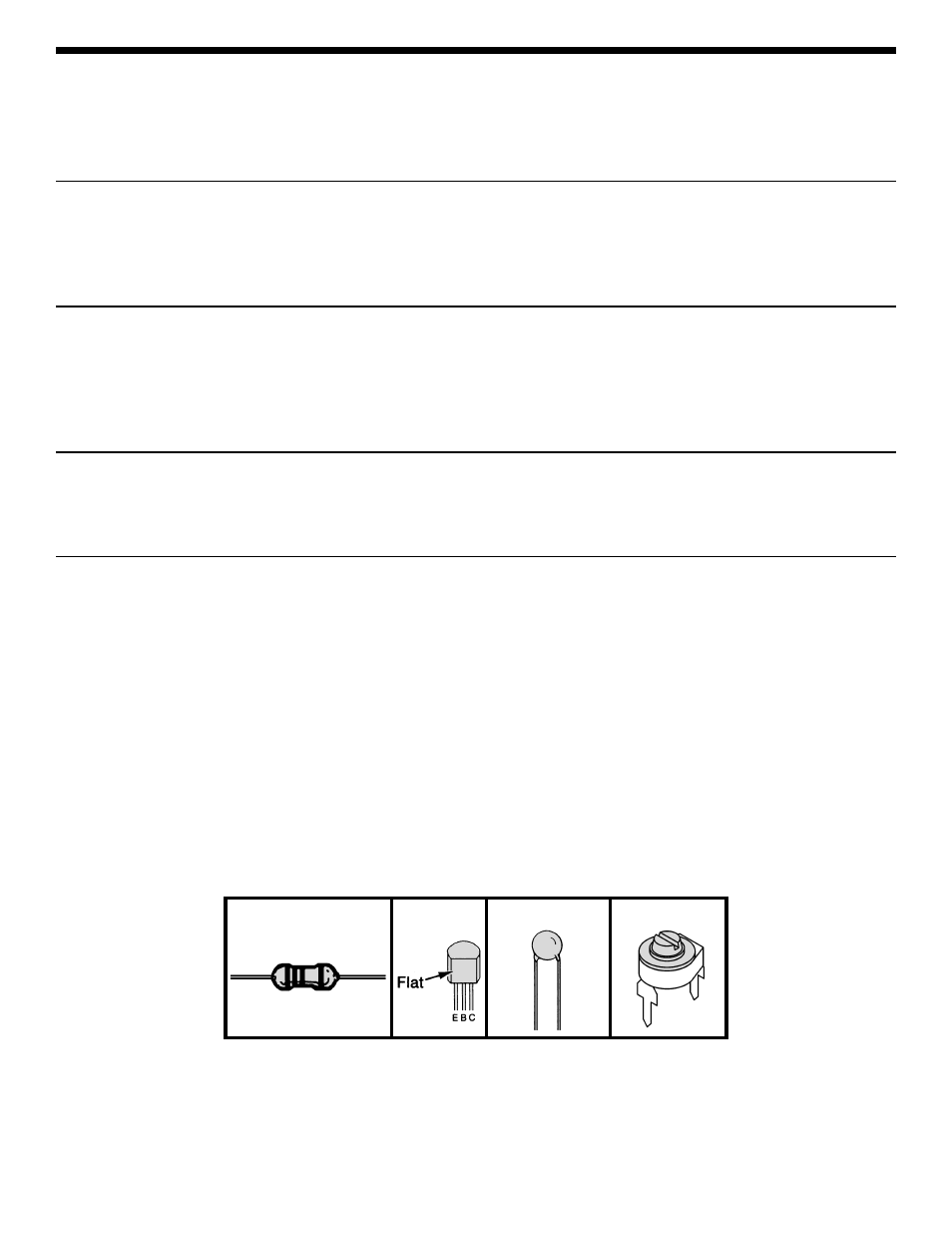

Resistor Transistor Capacitor Trimmer Cap.
PARTS IDENTIFICATION
