CAPACITORS
Qty. Symbol Description Part #
r 2
C2, C3 .01
μF Discap (103)
241031
r 1
C1 220
μF Electrolytic
282244
SEMICONDUCTORS
Qty. Symbol Description Part #
r 1
IC1 LM556 Integrated Circuit 330556
r 1
D1 LED (Light Emitting Diode) Red 350002
r 1
D2 LED (Light Emitting Diode) Green 350010
MISCELLANEOUS
Qty. Symbol Description Part #
r 1
PC Board 518010
r 1
S1 Switch Push Button 540001
r 1
S2 Switch Slide 541102
r 1
B1 Battery Snap 9V 590098
r 1
SPK1 Speaker 8
Ω
590102
r 1
IC Socket 14-pin 664014
r 2
Wire 4” Blue 814620
PARTS LIST
If you are a student, and any parts are missing or damaged, please see instructor or bookstore.
If you purchased this kit from a distributor, catalog, etc., please contact Elenco
® Electronics (address/phone/e-mail
is at the back of this manual) for additional assistance, if needed. DO NOT contact your place of purchase as they
will not be able to help you.
RESISTORS
Qty. Symbol Description Color Code Part #
r 1
R5 47
Ω 5% 1/4W
yellow-violet-black-gold 124700
r 2
R1, R2 100
Ω 5% 1/4W
brown-black-brown-gold 131000
r 1
R6 560
Ω 5% 1/4W
green-blue-brown-gold 135600
r 1
R3 1k
Ω 5% 1/4W
brown-black-red-gold 141000
r 1
R4 56k
Ω 5% 1/4W
green-blue-orange-gold 155600
r 1
P1 Trim Pot 50k
Ω
191552
-1-
Resistor Transistor
Capacitor
Push Button

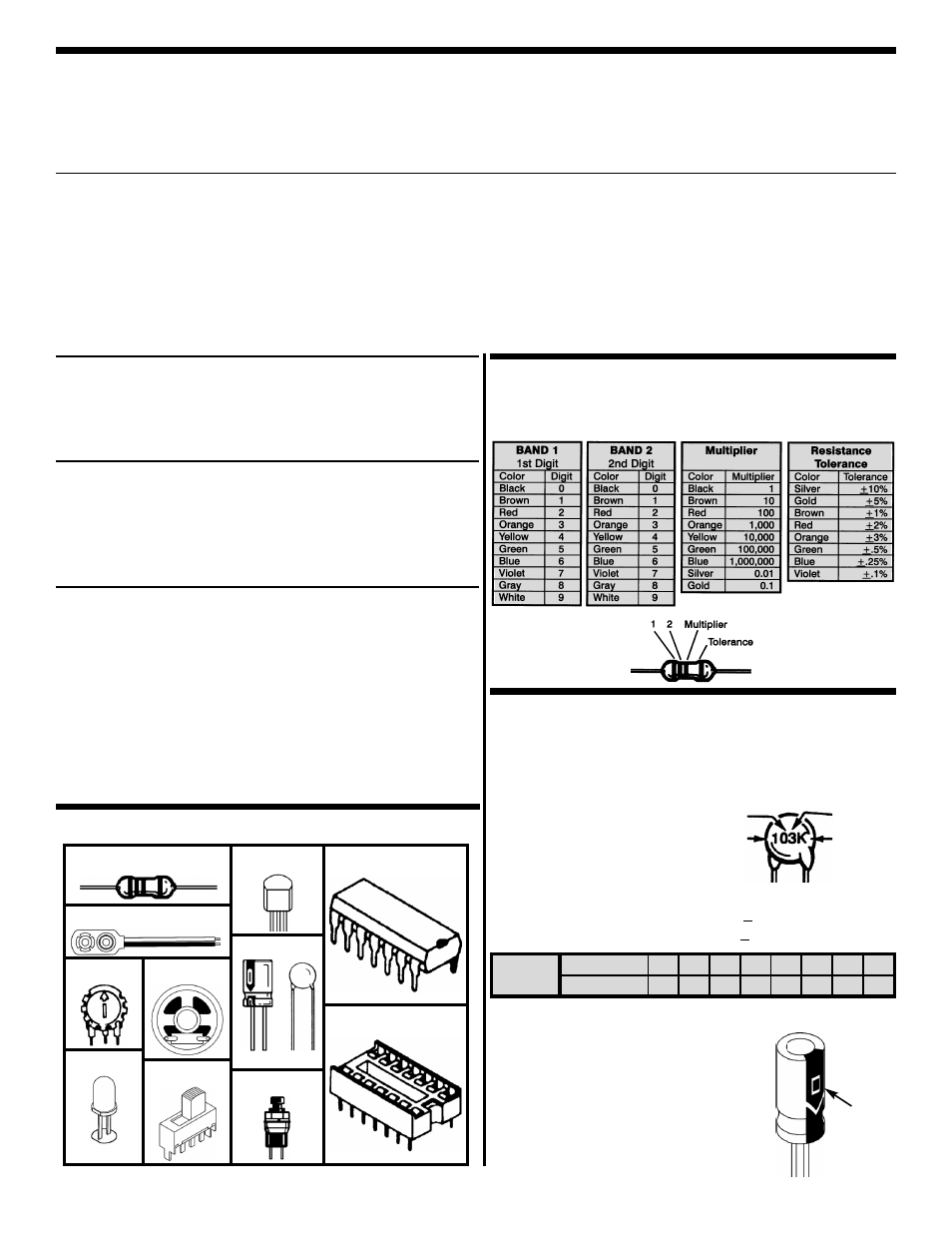

PARTS IDENTIFICATION
Electrolytic
Speaker
Integrated Circuit
Switch
Discap LED
Trim Pot
Battery Snap
IDENTIFYING RESISTOR VALUES
Use the following information as a guide in properly
identifying the value of resistors.
IDENTIFYING CAPACITOR VALUES
Capacitors will be identified by their capacitance value in
pF (picofarads), nF (nanofarads), or
μF (microfarads).
Most capacitors will have their actual value printed on
them. Some capacitors may have their value printed in the
following manner.
Second Digit
First Digit
Multiplier
Tolerance
The above value is 10 x 1,000 = 10,000pF or .01
μF
The letter K indicates a tolerance of +10%
The letter J indicates a tolerance of +5%
Note: The letter “R” may be used at times to signify a decimal
point; as in 3R3 = 3.3
IC Socket
Multiplier
For the No. 0 1 2 3 4 5 8 9
Multiply By 1 10 100 1k 10k 100k .01 0.1
Electrolytic capacitors have a positive and a
negative electrode. The negative lead is
indicated on the packaging by a stripe with
minus signs and possibly arrowheads.
Warning: If the capacitor is connected with
incorrect polarity, it may heat up and either
leak, or cause the capacitor to explode.
Polarity
Marking
