Page 3

5. Install the left
side differential
plate using the
supplied 8mm x
40mm bolts and
lock washers.
Torque the bolts
to 25 ft lbs.

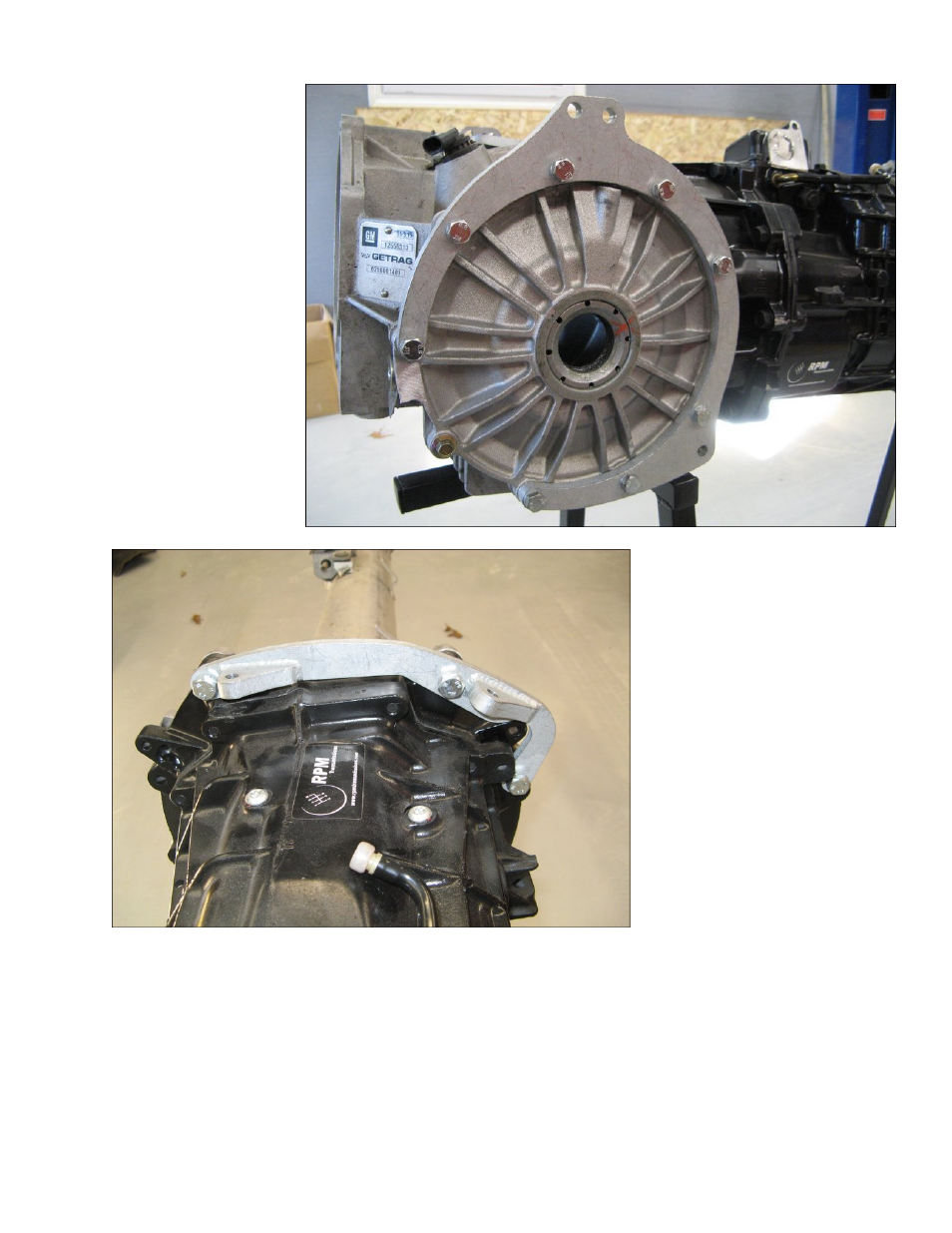

6. Remove and dis-
card the right
side diff cover
bolts, leaving
the stock bolt in
the 7 O’clock
position. (fig 2)
7. Install the right
side diff plate with
the welded spacer
facing inwards to-
wards the rear and
using the supplied
8mm x 40mm bolts
and washers. Torque
the bolts to 25 ft lbs.
(fig. 2)
8. Remove the top 2
transmission bolts
and the next bolt
down on the
passenger side of the transmission. (fig. 3)
9. Install the top transmission bracket with the supplied 10mm x 55mm
bolts and 10mm lock washers. Torque bolts to 45 ft lbs. (fig. 3)
10.Remove lower 2 left side transmission bolts. (fig. 4)
Fig 2
Fig 3
