East Coast Supercharging ECS Alky 5th Gen User Manual
Page 4

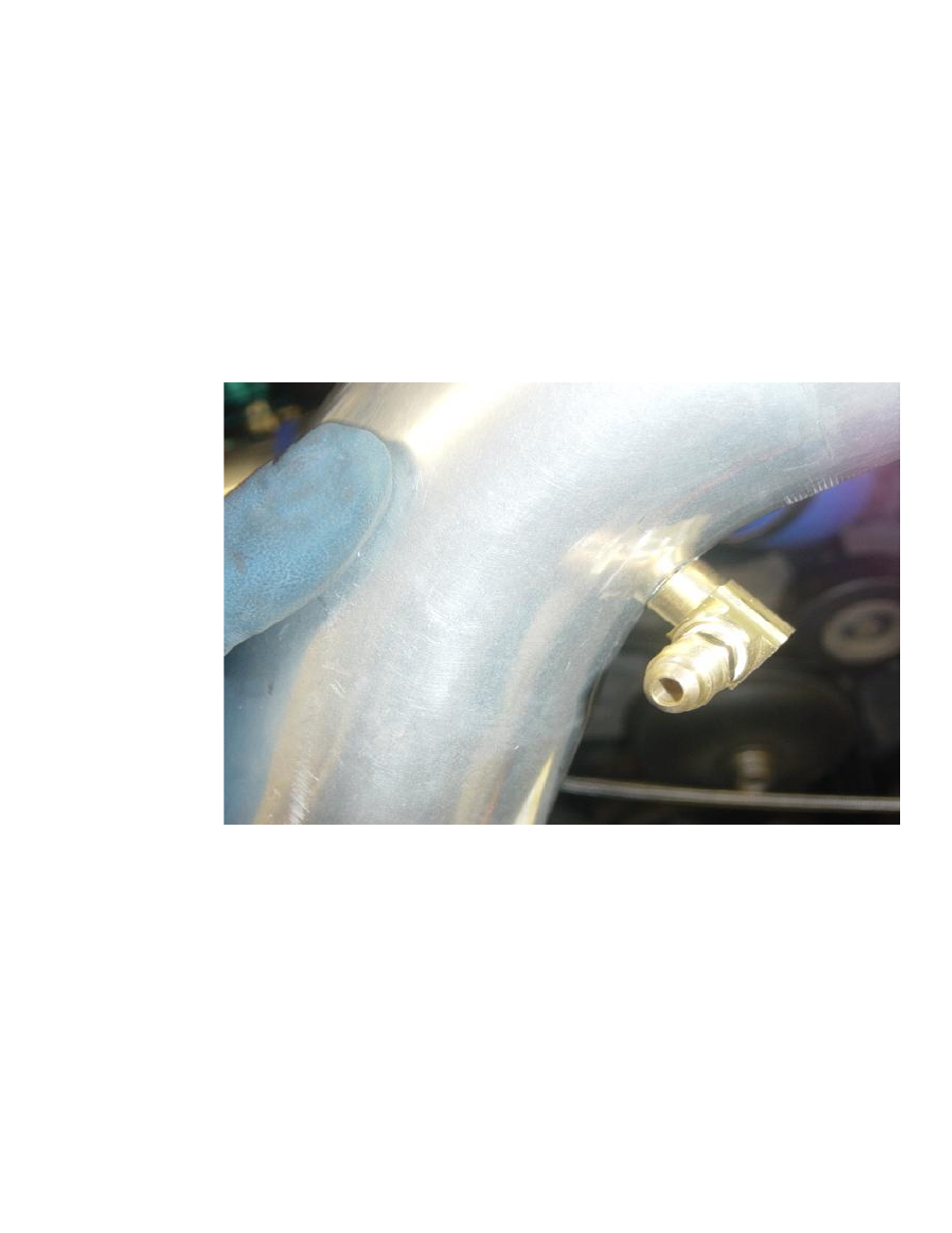

2) Nozzle mounting
The nozzle will require drilling a hole into the pipe leading to the throttle body.
Before it and after any sensors like a MAF(mass air flow). The size of hole is
13/32. Slightly larger than 3/8. In the case of thick aluminum flanges, a 1/8 NPT
tap can be used. The only tip’s are,
1) Make sure tip of screen on nozzle does not bottom out into 90
degree elbow,
2) Make sure you have at least 4 threads into elbow. Fittings are
brass and can break easy.
3) Once final assembly are done, go back unloosen elbow and apply
loc-tite to the threads so the nozzle cannot loosen.
