2010 Camaro kit installation instructions
General guidelines for installing kit into vehicle. The three following rules
should be followed to assure correct performance.
1. Nozzle must be highest point of system. If not, siphoning can occur.
2. Pump is the lowest point of system. This way it’s always gravity fed.
3. Tank is mid-point of system. In some cases hose can be routed to nozzle
making the hose the highest point of system.
Now let’s start the install.
1) Pump mounting
Before mounting the pump, install the brass fittings onto its inlet and outlets.
The larger fitting goes on the inlet. When tightening these fittings, do so by
hand, then one full turn. Do not over-tighten as this can lead to cracking the
upper pump assembly. Rule of thumb, just enough so they don’t leak.

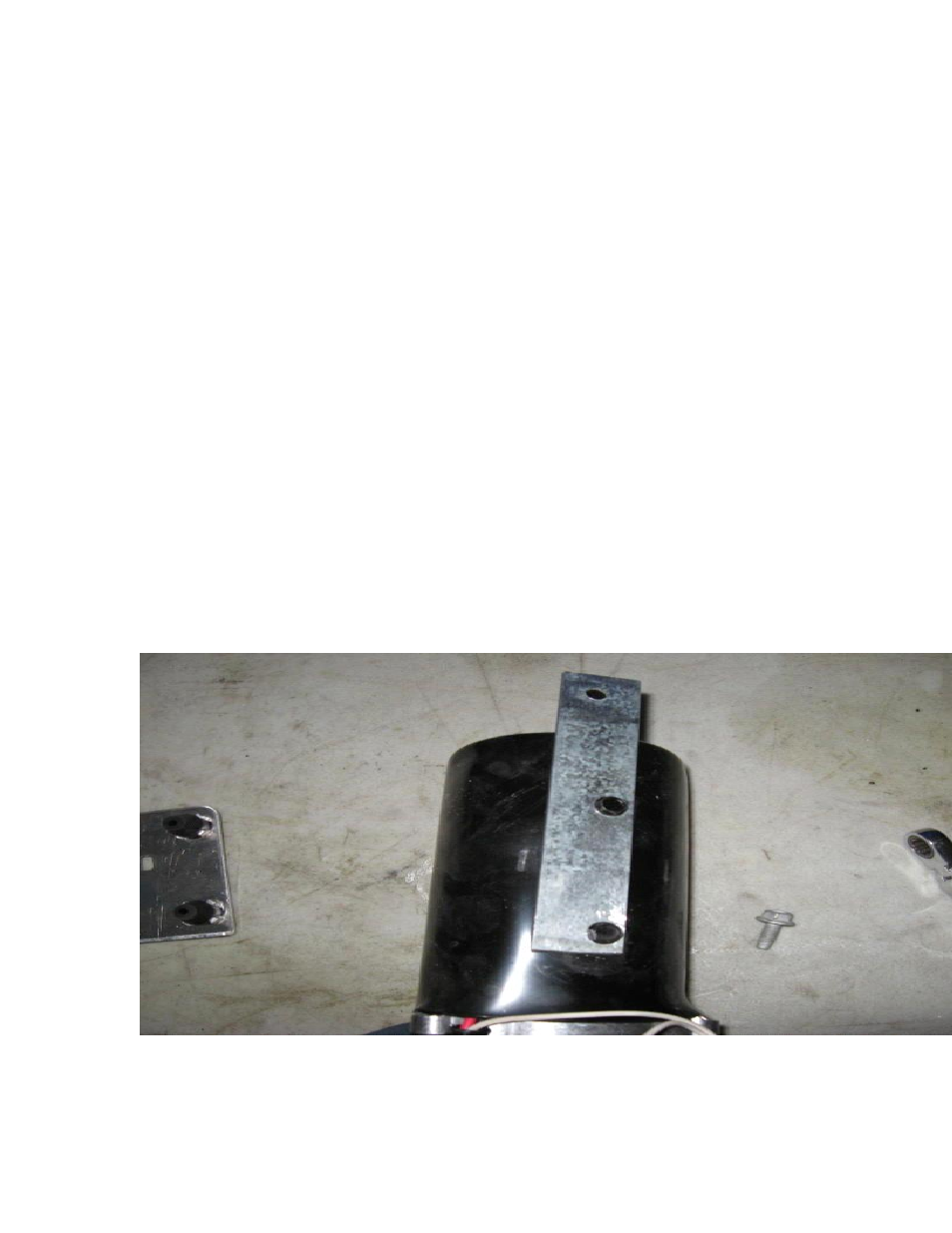

The preferred method is to mount the pump with its line connections facing
down. Attach white wire on pump to ground. Using supplied metal make a
bracket and use existing hole on core support in front of washer tank. Horn
bracket bolt.
