LED will be located. Typically this will be near your boost gauge. So as the
needle sweeps up, the LED will illuminate letting you know the system has
activated. Next is the decision of the placement of the low level LED for the tank.

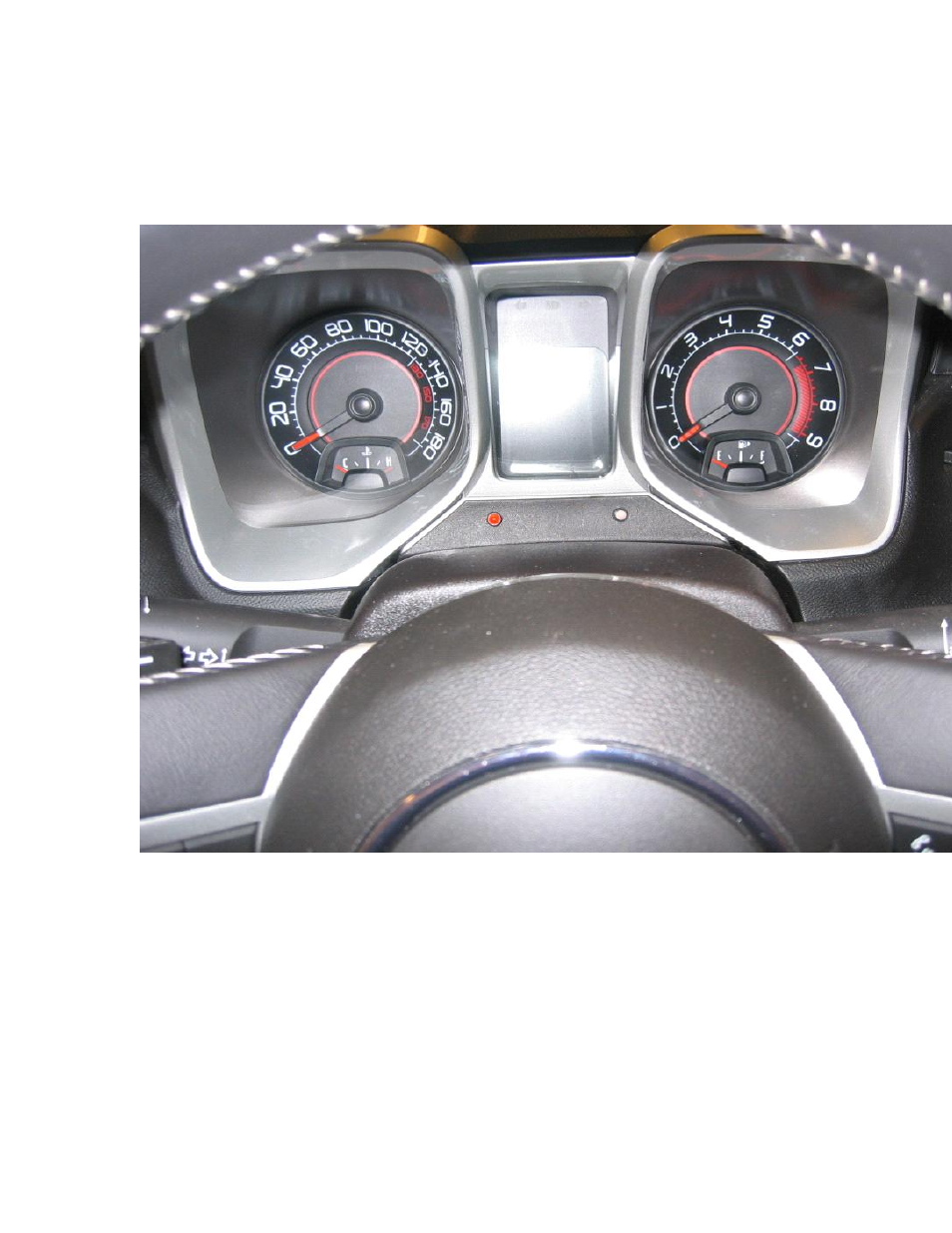

On the Camaro I installed my LED's above the steering column.
At this point drill holes for LED’s, and run their wiring to the lower portion of the
dash.
Locate a suitable spot for the PAC controller. On the Camaro I used the center
console. I drilled a small hole through the bottom of the console and ran the
cable using the supplied extension cable. The side of the console on the 2010
Camaro simply un-snaps. I mounted the Main PAC controller underneath the
dash. On the install I performed, I also mounted my 2 bar sensor under the
dash.
