East Coast Supercharging ECS Alky 5th Gen User Manual
Page 10

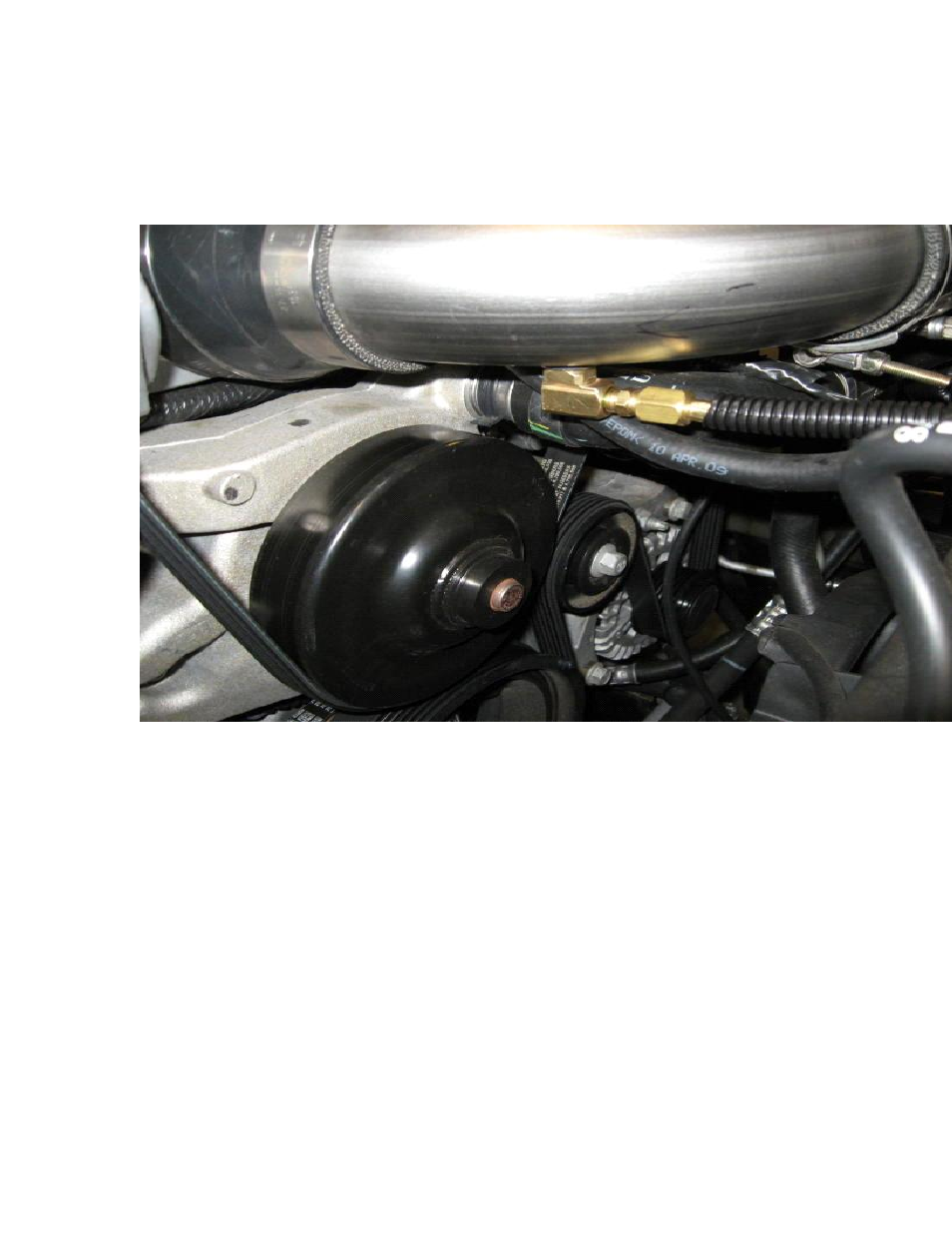

6) Hose connections
Three hoses will be used on the system. And there will be an inline filter marked
with an arrow indicating system flow.
A simple test using water can be performed at this point. Pour a glass of water
into the container and verify there are no leaks from fittings surrounding the
pump area. Water is used since leaks can be easily seen. At this point take a
break, wash hands, in-car wiring is next.
7) In-car wiring
The following can be used as a guideline from the numerous installations I have
performed. The sky is the limit on creativity, and this should only be used as
reference for what I have done, has been easy, and has worked. On the install I
performed a small hole was drilled under the brake assembly on the firewall to
run wires into the cockpit.
The first thing I always do is visually place where the location of the “turn-on”
