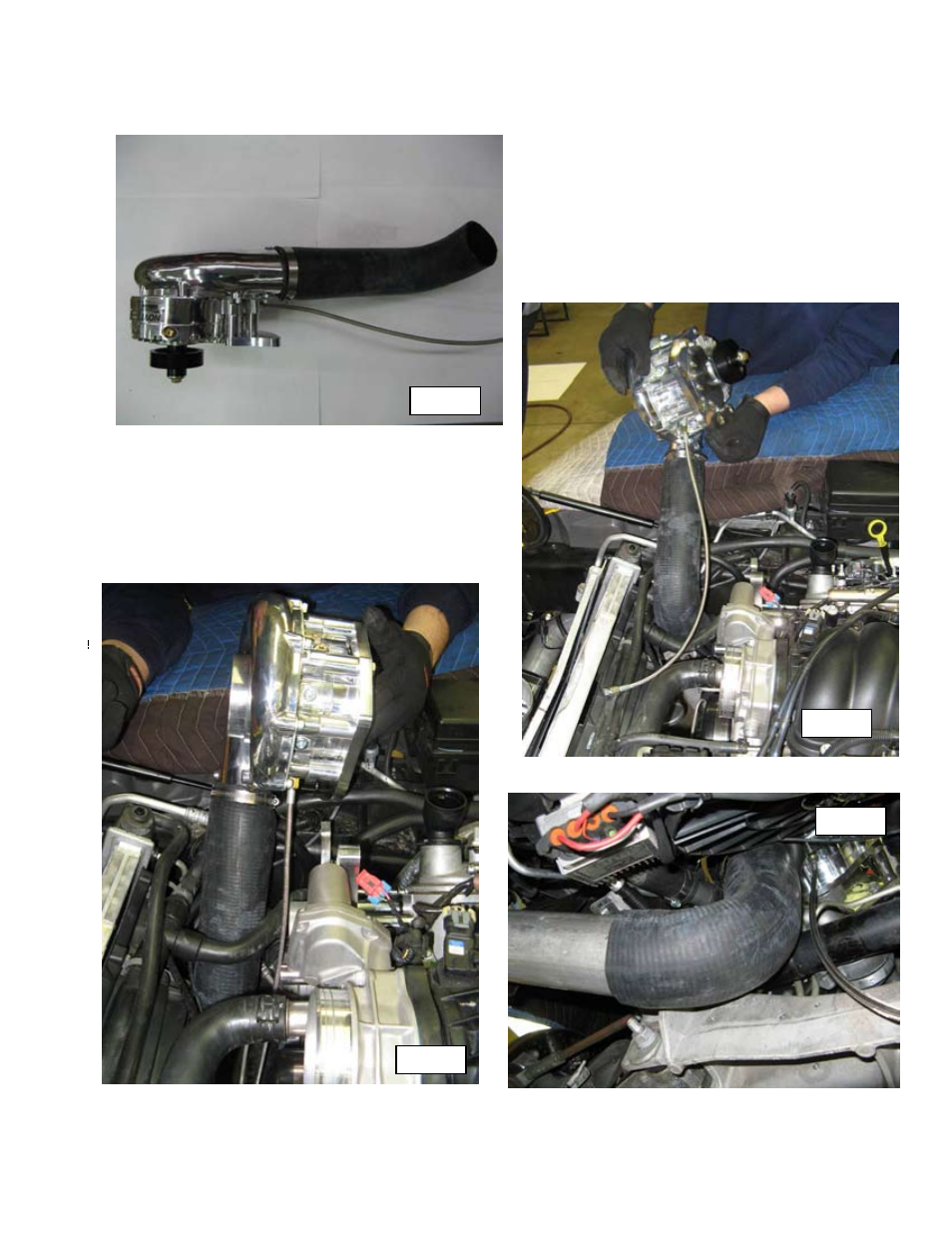

Install supplied 3 in rubber 90 degree hose
to head unit with a 5-10 offset towards
front of car as shown. (fig 61) Be certain to
tighten worm clamp.
•
Slide head unit and 90 degree hose into car as
shown. Sliding hose between passenger side fender
and 1 in cooling hose. Guide rubber hose in front of
steering rack and engine cradle. Be sure to slide
worm clamp over charge tube prior to connecting.
(fig 62a,b,c)
61
62a
62c
62b
