Install 3 in. rubber coupler onto intercooler
using supplied 3 in worm clamps. Do not
tighten worm clamps as of yet. We will be
fitting the charge tubes and will need to
adjust fitment as we go along.
•

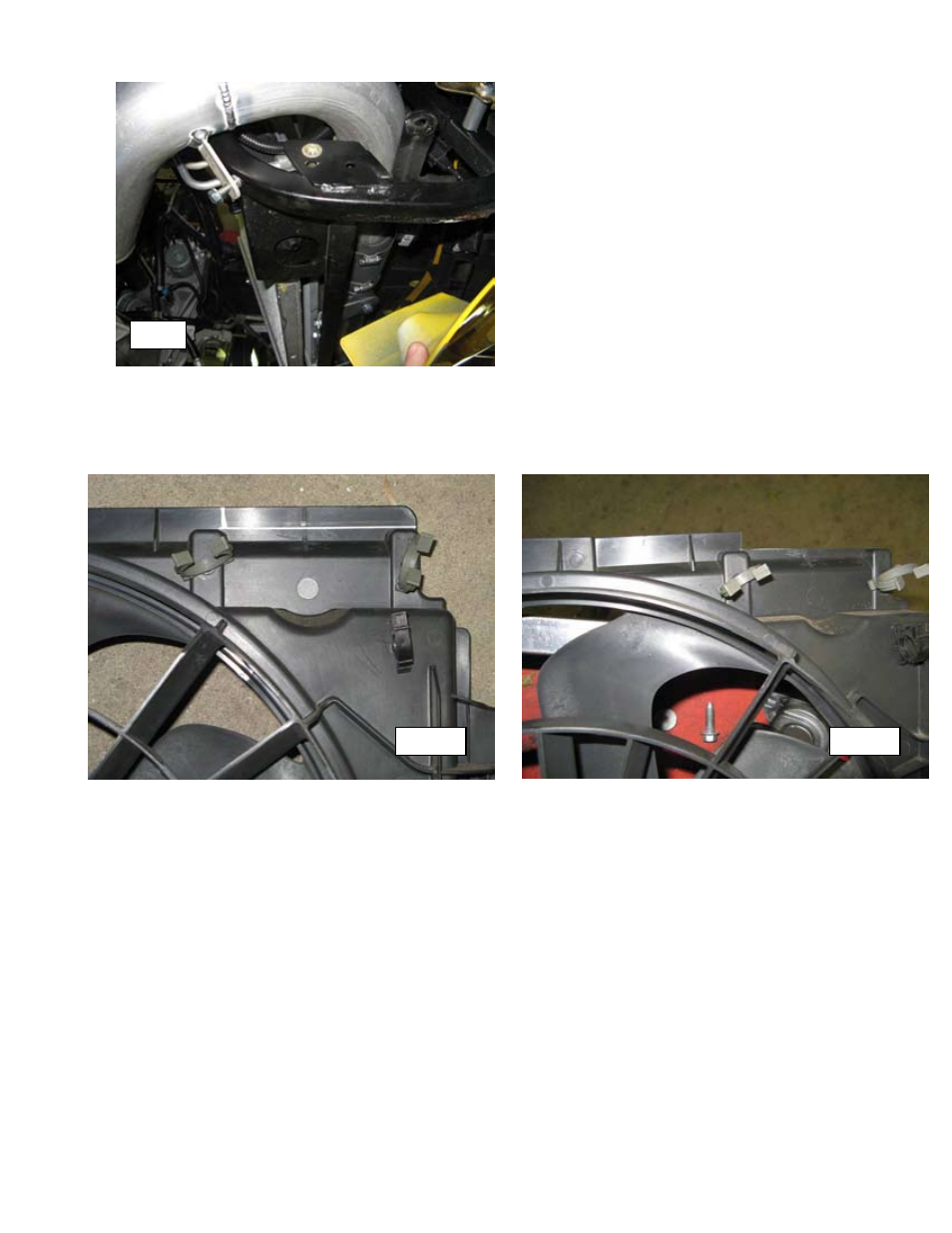

Next, slide 3 in aluminum “U tube” to
coupler through end of radiator cradle and
attach with supplied ¼ x 1 in bolt to
mounting point on back side of radiator
cradle as pictured. (fig 52).
•
Next, take your fan assembly and notch the upper most right hand corner. From right side of shroud
measure approximately 4 ½ inches towards left and about a ½ in. down. Use the photos below as a
guide. (fig 53a,b).
•
Reinstall fans, being sure to tighten the 2 - 10mm bolts on either side and reconnecting the fan wiring
harness.
•
Reinstall oil lines previously removed from
radiator at this point of the installation. (Z51
equipped cars)
•
Install supplied tensioner with 9/16 th
bolt to
previously installed tensioner bracket as shown.
(fig 54)
52
53a 53b
54
