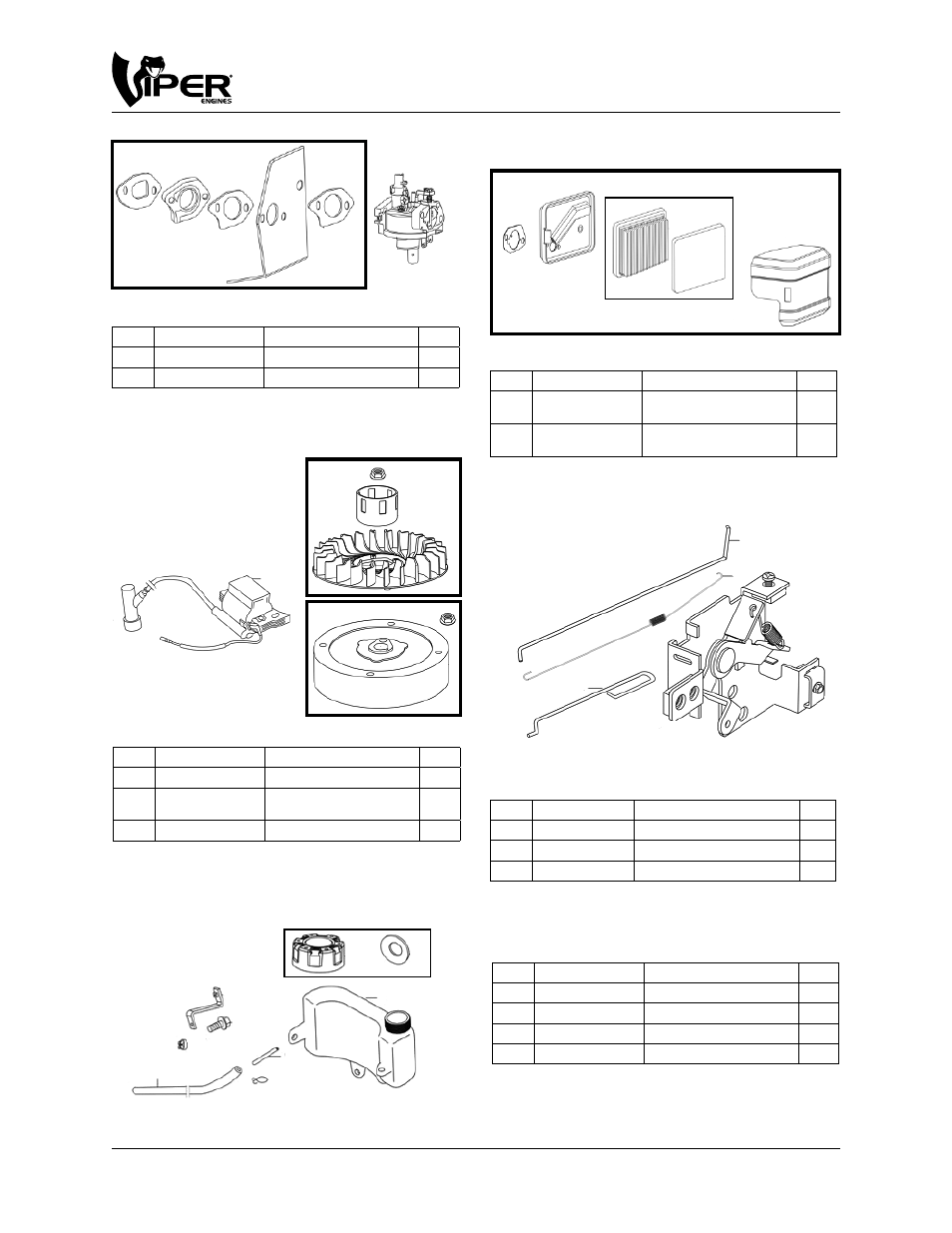

EarthQuake 60005072 - Manual (Page 23)

Operator's Manual
Viper Engine, 159cc
Check for parts online at www.ardisam.com or call 800-345-6007 M-F 8-5
23
keY # PART # descRIPTIon QTY.
1 600050116 kIT, CARBuRETOR SEAL 1
2 60005091 CARBuRETOR ASSEMBLy 1
cARbuReToR
Check for parts online at www.ardisam.com or call 800-345-6007 M-F 8-5
keY # PART # descRIPTIon QTY.
5 60005093 IGNITION COIL ASSEMBLy 1
6 600050119 kIT, FLyWhEEL FINS AND
RECOIL CONE WITh NuT
1
7 600050120 kIT, FLyWhEEL WITh NuT 1
flYWHeel
5
6
keY # PART # descRIPTIon QTY.
3 600050117 kIT, AIR FILTER-INCLuDES
INNER AND OuTER
1
4 600050118 kIT, COMPLETE AIR
CLEANER
1
AIR fIlTeR
8
10
9
keY # PART # descRIPTIon QTY.
8 600050103 ThROTTLE ROD 1
9 600050104 ThROTTLE RETuRN SPRING 1
10 600050105 GOVERNOR ROD 1
conTRol
keY # PART # descRIPTIon QTY.
11 600050121 FuEL CAP WITh GASkET 1
12 600050111 FuEL TANk 1
13 600050112 FuEL LINE 1
14 600050113 FuEL FILTER 1
fuel TAnk
11
12
13
14
1
2
7
4
3
