111245-01A
For more information, visit www.desatech.com For more information, visit www.desatech.com
8
ELECTRICAL HOOKUP
This fireplace normally operates under 120 VAC/60 Hz line volt-
age. The electrical cord supplied with your fireplace is five feet in
length. You must locate fireplace within reach of a 120 volt
grounded electrical outlet. If not, you must install an electrical outlet
within reach of the fireplace power cord. The GA3555 outlet
accessory may be used for built-in applications.
INSTALLATION CLEARANCES
WARNING: Maintain the minimum clearances. If
you can, provide greater clearances from floor, ceil-
ing, and adjoining wall.
Carefully follow the instructions below. This will ensure safe
installation.
Minimum Clearances For Side Combustible
Material, Side Wall, and Ceiling
A. Clearances from the side of the fireplace cabinet to any com-
bustible material and wall should follow diagram in Figure 5.
Example: The face of a mantel, bookshelf, etc. is made of
combustible material and protrudes 3 1 /
2
" from the wall. This
combustible material must be 4" from the side of the fireplace
cabinet (see Figure 5).
B. Clearances from the top of the fireplace opening to the ceiling
should not be less than 42 inches.

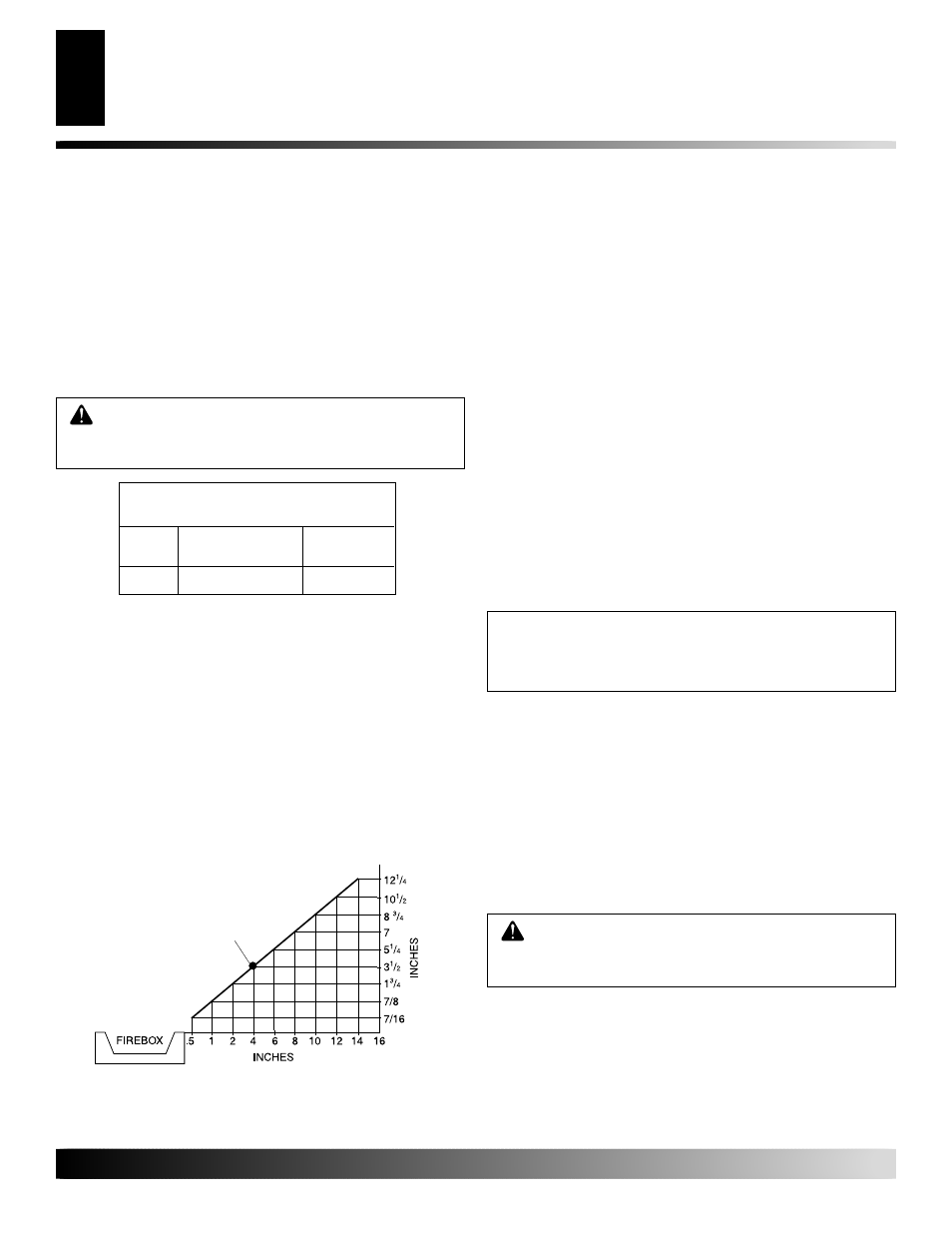

Figure 5 - Minimum Clearance for Combustible to Wall
*Minimum 16 inches from Side Wall
*
Example
INSTALLATION
Continued
INSTALLATION
Electrical Hookup
Installation Clearances
Installation Sequence
Removing Fireplace Screen And Floor Assembly
INSTALLATION SEQUENCE
After unpacking fireplace (see Unpacking, page 4), we suggest that
you install your fireplace system in the following sequence:
1. Removal of fireplace floor assembly (required)
2. Electrical connections for power cord (required)
3. Relocating wall switch (optional)
4. Installing blower accessory (optional)
5. Connecting fireplace to gas supply (required)
6. Checking gas connections (required)
7. Firebox installation, conventional or built-in (required)
8. Installing brass perimeter trim (optional)
9. Installing fireplace hood (required)
10. Installing logs (required)
11. Installing fireplace screen (required)
Use the following instructions to complete each step.
REMOVING FIREPLACE SCREEN AND
FLOOR ASSEMBLY
NOTICE: Shutoff gas supply and disconnect heater
from gas supply if installing blower into previously
installed fireplace. Contact a qualified service person
to do this.
1. Remove fireplace screen. Remove two screws that hold fire-
place screen in place for shipping. These screws are located
near top of screen. Discard screws. Lift fireplace screen up
and pull out to remove.
2. If logs are installed, carefully remove the logs and set aside,
noting the properly mounted location of each.
3. Remove screws that attach fireplace floor assembly to fire-
place. Open lower louver door. Carefully lift up fireplace floor
assembly and remove from fireplace, taking care to pull flex-
ible gas line through the access holes (see Figure 6, page 9).
Note: Be careful of all wires on underside of log base.
CAUTION: Do not pick up fireplace floor assembly
by burners. This could damage burners. Only handle
base by grates.
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Top Left and Bottom
Right Sides and Rear
0" 16" 0"
