INSTALLATION
Conventional Fireplace Installation (Cont.)
Built-In Fireplace Installation
INSTALLATION
Continued
11. Carefully insert fireplace into cabinet mantel (see Figure 33).
Be careful not to scratch or damage hearth base, cabinet man-
tel, or any laminate trim on hearth base. Remove protective
material from top of hearth base and from front of fireplace (if
any).
Note: You can secure fireplace to hearth or floor. Open
lower louver. Locate screw holes in bottom of base. Tighten
wood screws through these holes and into hearth or floor.
12. Check all gas connections for leaks. See Checking Gas Con-
nections, pages 17 and 18.

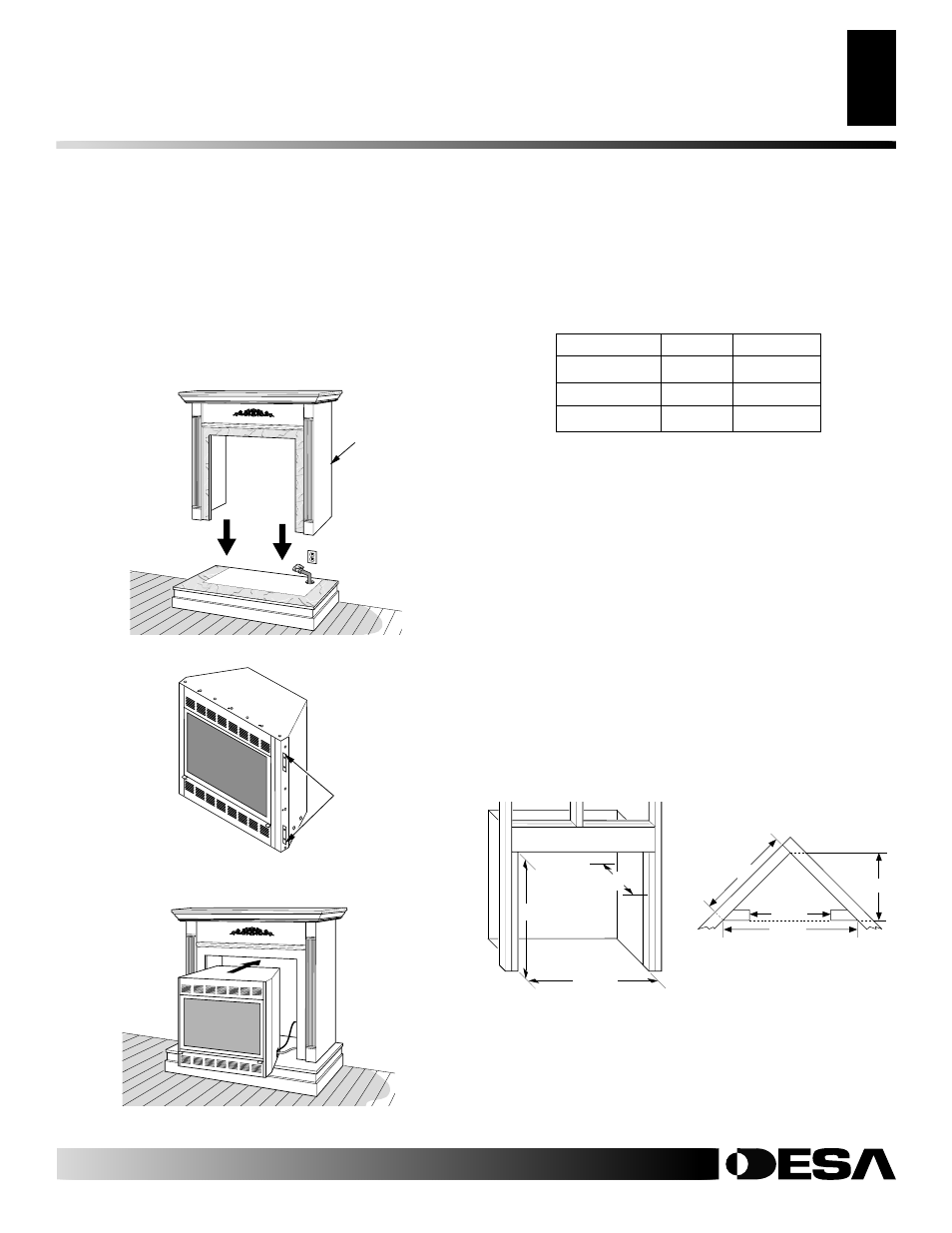

Figure 31 - Installing Cabinet Mantel
Cabinet
Mantel
Figure 33 - Inserting Fireplace Into Cabinet Mantel
Figure 32 - Location of Nailing Flanges
Nailing Flanges
BUILT-IN FIREPLACE INSTALLATION
Built-in installation of this fireplace involves installing fireplace
into a framed-in enclosure. This makes the front of fireplace flush
with wall. If installing a mantel above the fireplace, you must follow
the clearances shown in Figure 37, page 20. Follow the instructions
below to install the fireplace in this manner.
Actual Framing
Height 32 3 /
8
" 33"
Front Width 34 5 /
16
" 35 1 /
2
"
Depth 16 11 /
16
" 17 3 /
4
"
1. Frame in rough opening. Use dimensions shown in Figure 34
for the rough opening. If installing in a corner, use dimensions
shown in Figure 35 for the rough opening. The height is 33"
which is the same as the wall opening above.
2. Install and properly ground GA3555, three-prong 120 volt elec-
trical outlet, in fireplace. Follow instructions included in kit (see
Accessories, page 36).
3. If not already completed, install gas piping to fireplace location.
This installation includes an approved flexible gas line (if al-
lowed by local codes) after the equipment shutoff valve. The
flexible gas line must be the last item installed on the gas pip-
ing. See Installing Gas Piping to Fireplace Location, page 15.
4. Carefully set fireplace in front of rough opening with back of
fireplace inside wall opening.
5. Attach flexible gas line to gas supply. See Connecting Fire-
place to Gas Supply, page 16.
6. Plug electrical cord(s) into electrical outlet installed in step 2.
7. Carefully insert fireplace into rough opening.
35 1 / 2 "
17 3 / 4 "
33"
39 3 / 8 "
27 7 / 8 "
55 5 / 8 "
35 1 / 2 "
Figure 34 - Rough Opening for
Installing in Wall Figure 35 - Rough Opening
for Installing in Corner
