INSTALLING BATTERY INTO REMOTE
1. Locate slot at bottom of remote control (see Figure 45). Firmly
insert tool such as a small screwdriver, butter knife, or dime
into the slot and lift up to remove cover.
2. Insert supplied battery into remote control. Positive and nega-
tive are marked inside remote control casing.
Note: Remote
will not function if battery is not installed correctly.
3. Slide tab on cover into remote housing and snap cover back
into place.
IMPORTANT: Use only A23 12 volt battery in remote. DO NOT
use AAA battery.
Positive

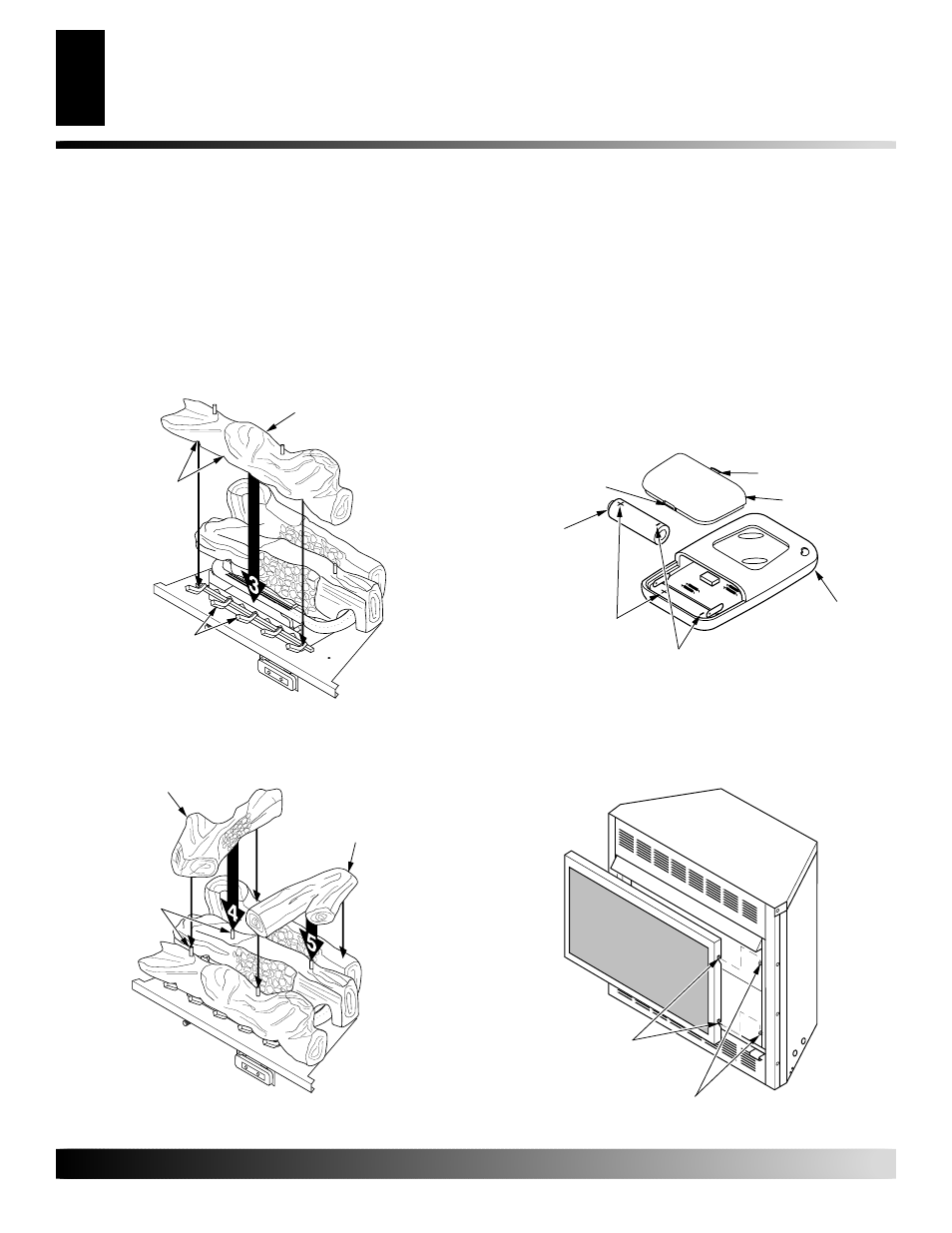

Figure 45 - Installing Battery
Negative
Tab
Cover
Remote
Control
Slot
A23 12
Volt Battery
Figure 46 - Installing Fireplace Screen
INSTALLING SCREEN
Install fireplace screen by slipping notches of fireplace screen over
screws on front of fireplace (see Figure 46).
Notches
Screws for
Mounting Screen
INSTALLATION
Installing Logs (Cont.)
Installing Battery Into Remote
Installing Screen
INSTALLATION
Continued
Figure 43 - Installing Front Log (#3)
Figure 44 - Installing Crossover Logs (#4 & #5)
Front Log (#3)
Pins
3. Locate the notches in the bottom of the front log (#3). Place
the front log on the grate fingers. Make sure the notches of the
front log line up with the grate fingers (see Figure 43).
4. Place left crossover log (#4) across logs #1, #2 and #3 fitting
holes on bottom of log #4 onto pin on front and middle logs as
shown in Figure 44.
5. Place right crossover log (#5) in the same manner on right side
of logs (see Figure 44).
Crossover
Log (#5)
Grate Fingers
Notches
Crossover
Log (#4)
