111245-01A

For more information, visit www.desatech.com

For more information, visit www.desatech.com

21

21

INSTALLATION

Assembling And Attaching Optional Brass Trim (Cont.)

Installing Hood

Installing Logs

INSTALLATION

Continued

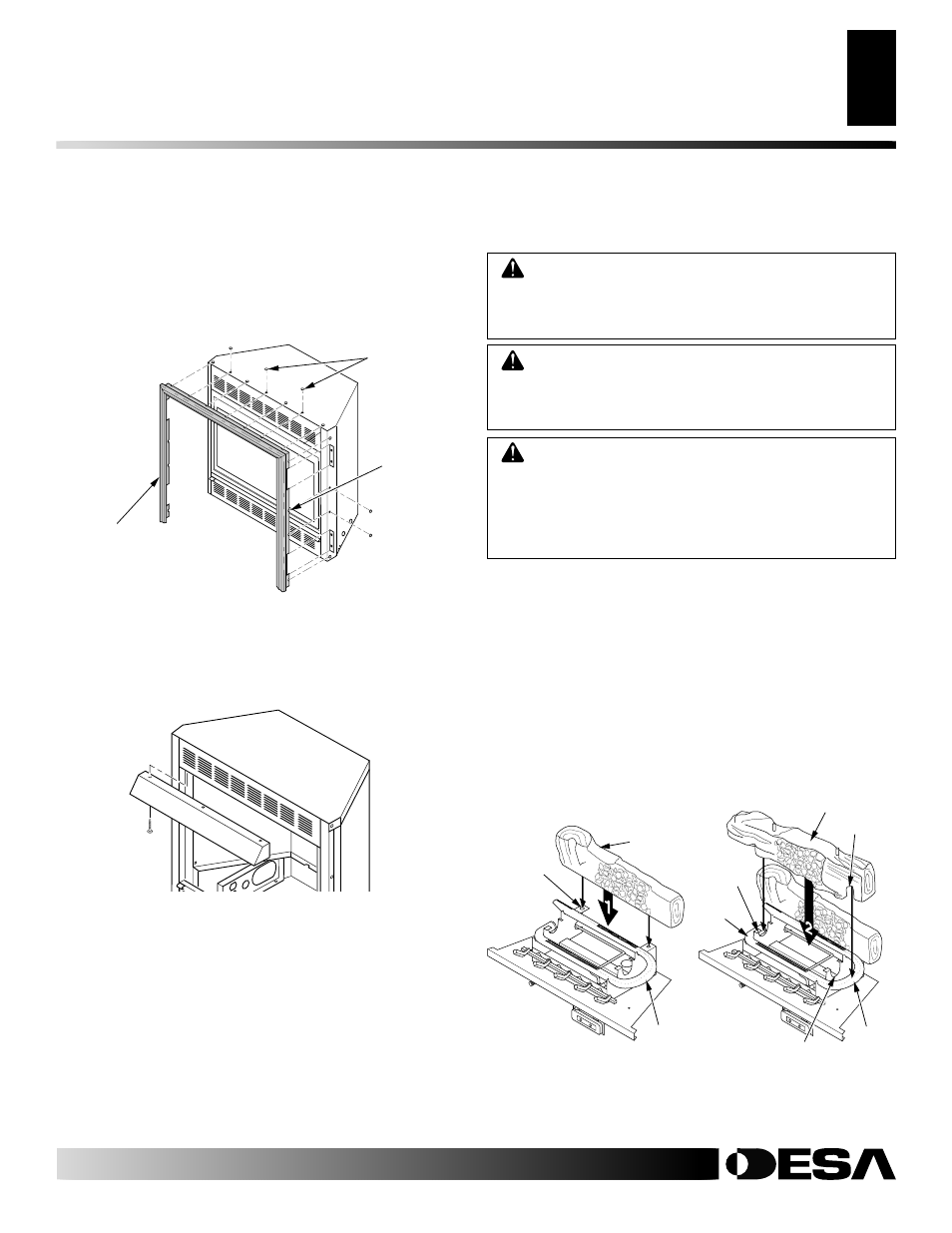

Figure 39 - Attaching Brass Trim to Fireplace

Trim
Hanging
Screws

Assembled
Brass Trim

Hanging
Notches
on Trim

Figure 40 - Installing Hood to Firebox

INSTALLING HOOD

Install hood to top of firebox as shown in Figure 40. Use 3 Phillips
screws provided.

Figure 41 - Installing Back
Log (#1)

Figure 42 - Installing Middle
Log (#2)

Hole in
Grate Base

Back Log
(#1)

Burner

Burner

Tab

Middle Log (#2)

Cutout

U-Shaped Slot

“U” Bend

WARNING: Failure to position the parts in accor-

dance with these diagrams or failure to use only parts
specifically approved with this heater may result in
property damage or personal injury.

CAUTION: Do not remove the warning and in-

struction labels attached to the heater base assem-
bly. These markings contain important warranty in-
formation.

CAUTION: After installation and periodically there-

after, check to ensure that no flame comes in contact
with any log. With the heater set to HI, check to see if
flames contact any log. If so, reposition logs accord-
ing to the log installation instructions in this manual.
Flames contacting logs will create soot.

INSTALLING LOGS

Each log is marked with a number. These numbers will help you
identify the log when installing. It is very important to install these
logs exactly as instructed. Do not modify logs. Only use logs
supplied with heater.

1.

Locate pegs on the bottom of back log (#1). Slide these pegs into
the holes in the grate base behind the burner (see Figure 41).

2.

Place the base of the middle log (#2) in the U-shaped slots of
the grate base in front of the back log. The cutout on the right
of the middle log should fit over the burner (see Figure 42).
Make sure the front of the middle log is resting on the tabs of
the grate base and the cutout area is centered over the burner
“U” bend.

7.

Repeat steps 1 through 6, page 20, for other side.

8.

Tighten trim hanging screws (#10 x 6.25 shoulder) into holes
in cabinets. Place the assembled trim onto fireplace cabinet.
Align hanging notches on trim with hanging screws on side of
fireplace (see Figure 39). Push trim firmly into place, sliding
hanging notches over hanging screws.
