5a - Audi/VW radios with "Y-harness" type CAN1 connection -You can access the SAT connector located on the back of
the radio. Unplug the factory connection if present and plug the Audi/VW CAN connector in. Connect the factory plug
to the cable receptacle if it was removed from the radio. The connector should securely lock. The factory SAT tuner
must be disconnected at the tuner which is usually located in the trunk or under the passenger seat. For
detailed information refer to the service manual of your vehicle.
10
10

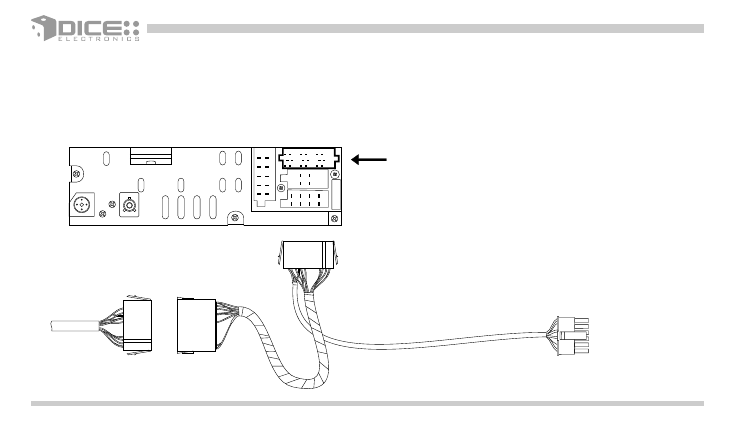

Audi/VW-CAN connector (type 1)
factory harness
in vehicle
to interface
module
receptacle
