10
10
Audi-R connector
factory harness
in vehicle
to interface
module
receptacle

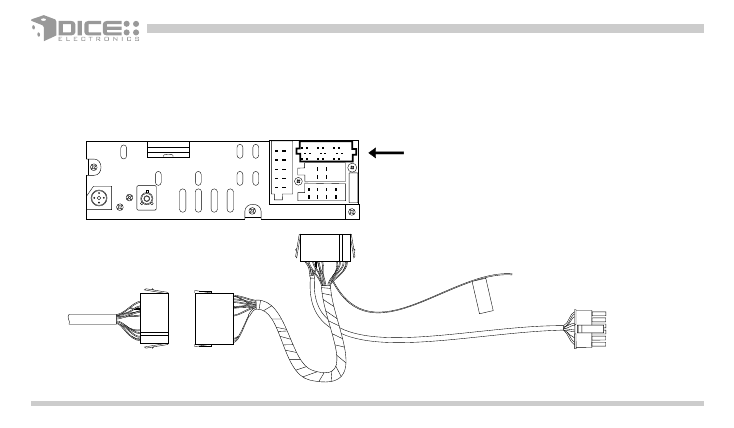

5a - Audi radios with R connectors - You can access the CD changer connector located on the back of the radio. Unplug
the factory connection if present and plug the Audi-R BUS connector into the receptacle. The
connector should securely lock. Ground wire MUST be connected to a stable grounding point.
to ground
Ground
wire
13
