90

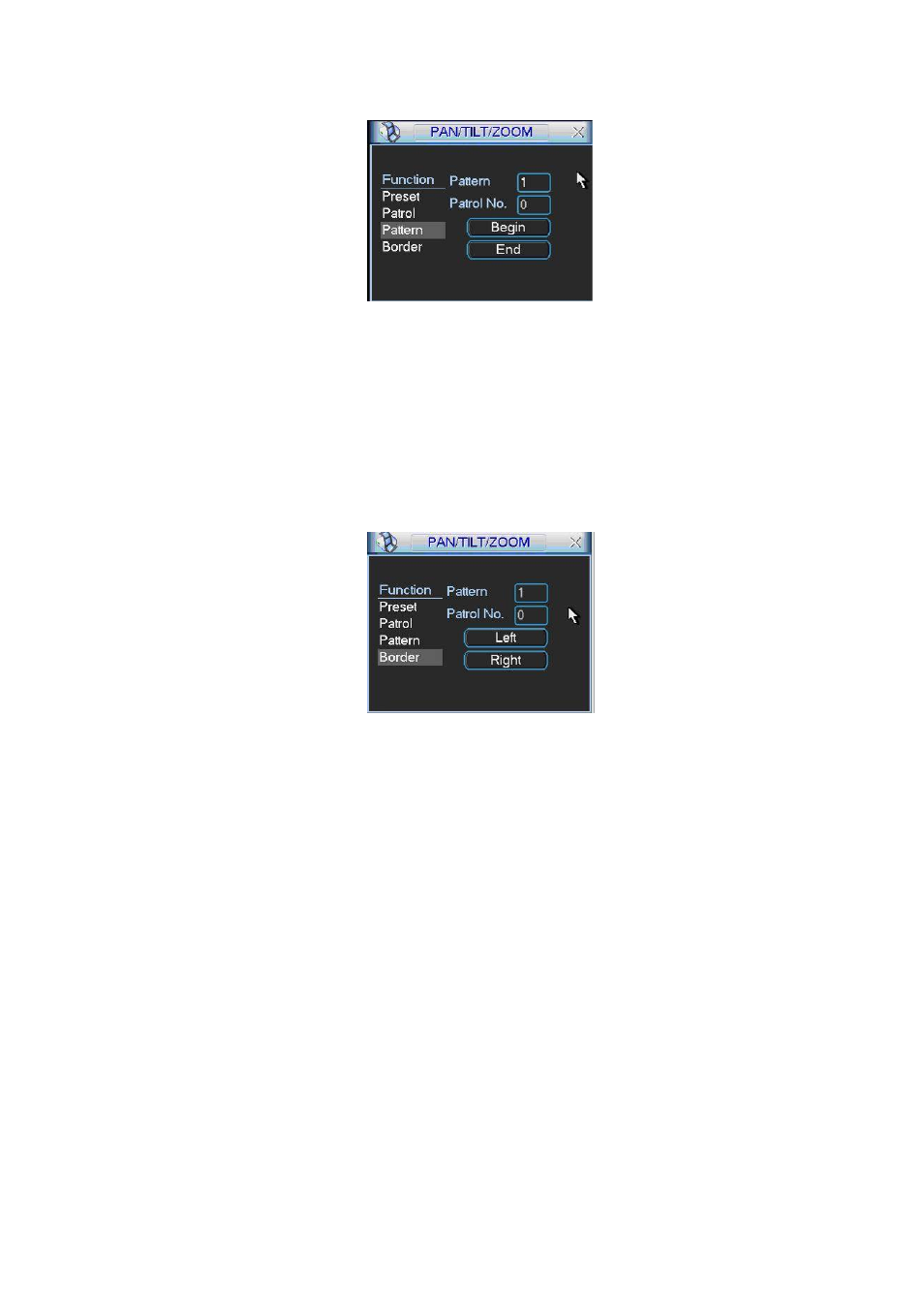

You can memorize all these setups as pattern 1.
Figure 6-9
6.2.6 Activate Pattern Function
In
X419H419H419H371H
Figure 6-6
X
input mode value in the No. blank, and click pattern button.
6.2.7 Border
Setup
In
X420H420H420H372H
Figure 6-5
X
, click border button. The interface is shown as in
X421H421H421H373H
Figure 6-10
X
.
Please go to
X422H422H422H374H
Figure 6-2
X
, use direction arrows to select camera left limit, and then please go to
X423H423H423H375H
Figure 6-10
X
and click left limit button
Repeat the above procedures to set right limit.
Figure 6-10
6.2.8 Activate Border Function
In
X424H424H424H376H
Figure 6-6
X
, click auto scan button, the system begins auto scan. Correspondingly, the auto
scan button changes to stop button.
Click stop button to terminate scan operation.
6.2.9 Flip
In
X425H425H425H377H
Figure 6-6
X
, click page switch button, you can see an interface is shown as below. See
X426H426H426H378H
Figure
6-11
X
. Here you can set auxiliary function.
Click page switch button again, system goes back to
X427H427H427H379H
Figure 6-2
X
.
