61

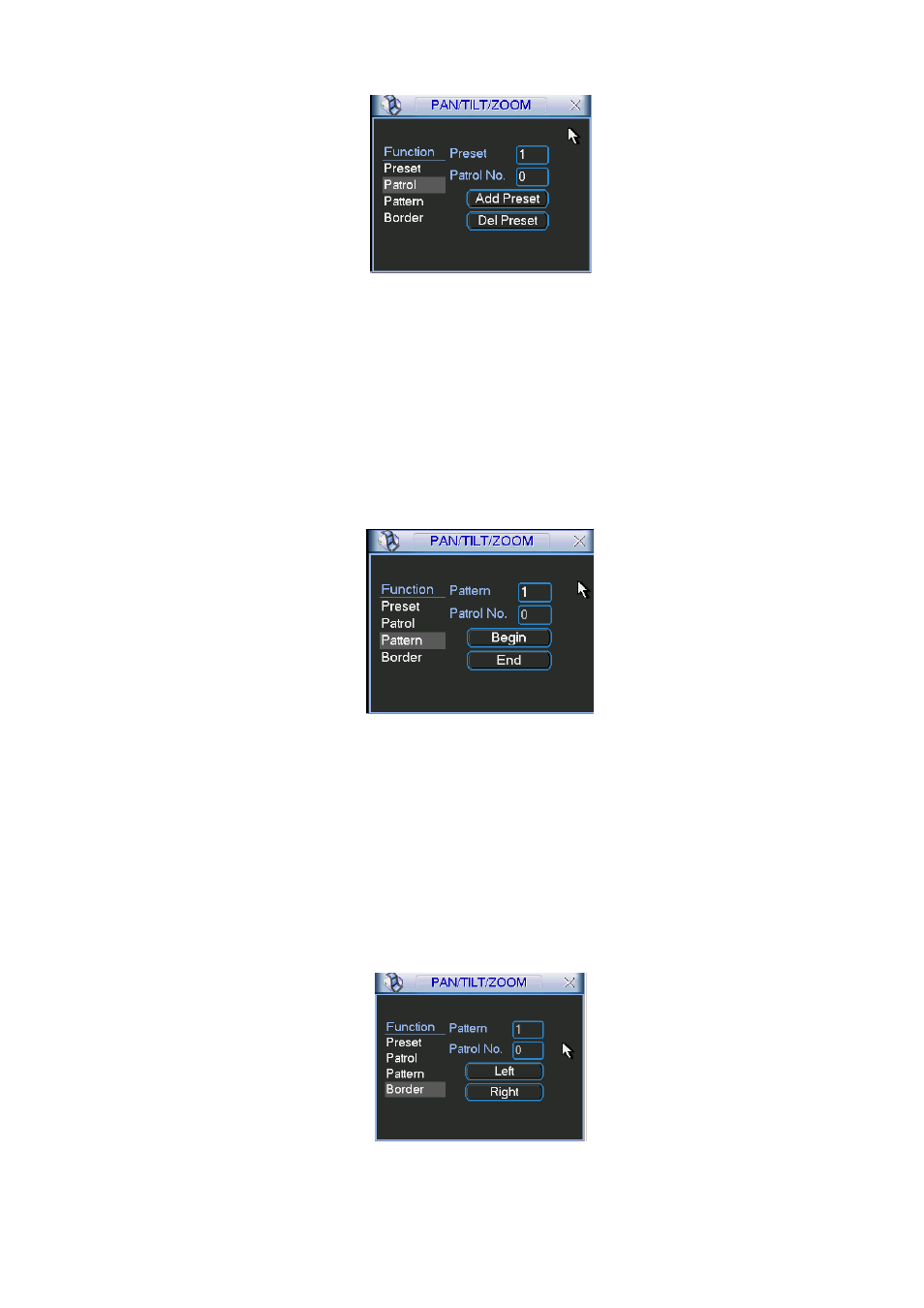

Figure 4-41
4.9.4 Activate Patrol (tour)
In
X341H341H341H
Figure 4-38
X
, input patrol (tour) number in the No. blank and click patrol button
4.9.5 Pattern Setup
In
X342H342H342H
Figure 4-38
X X
, click pattern button and then click “begin” button. The interface is shown as in
X343H343H343H
Figure 4-38
X X
. Then you can go to
X344H344H344H
Figure 4-35
X
to modify zoom, focus, and iris.
Go back to
X345H345H345H
Figure 4-42 and click “end” button. You can memorize all these operations as pattern
1.
Figure 4-42
4.9.6 Activate Pattern Function
In
X346H346H346H
Figure 4-39, input mode value in the No. blank, and click pattern button.
4.9.7 Auto Scan Setup
In
X347H347H347H
Figure 4-38, click border button. The interface is shown as in
X348H348H348H
Figure 4-43.
Please go to
X349H349H349H
Figure 4-35, use direction arrows to select camera left limit
Then please go to
X350H350H350H
Figure 4-43
X
and click left limit button
Repeat the above procedures to set right limit.
Figure 4-43
