48

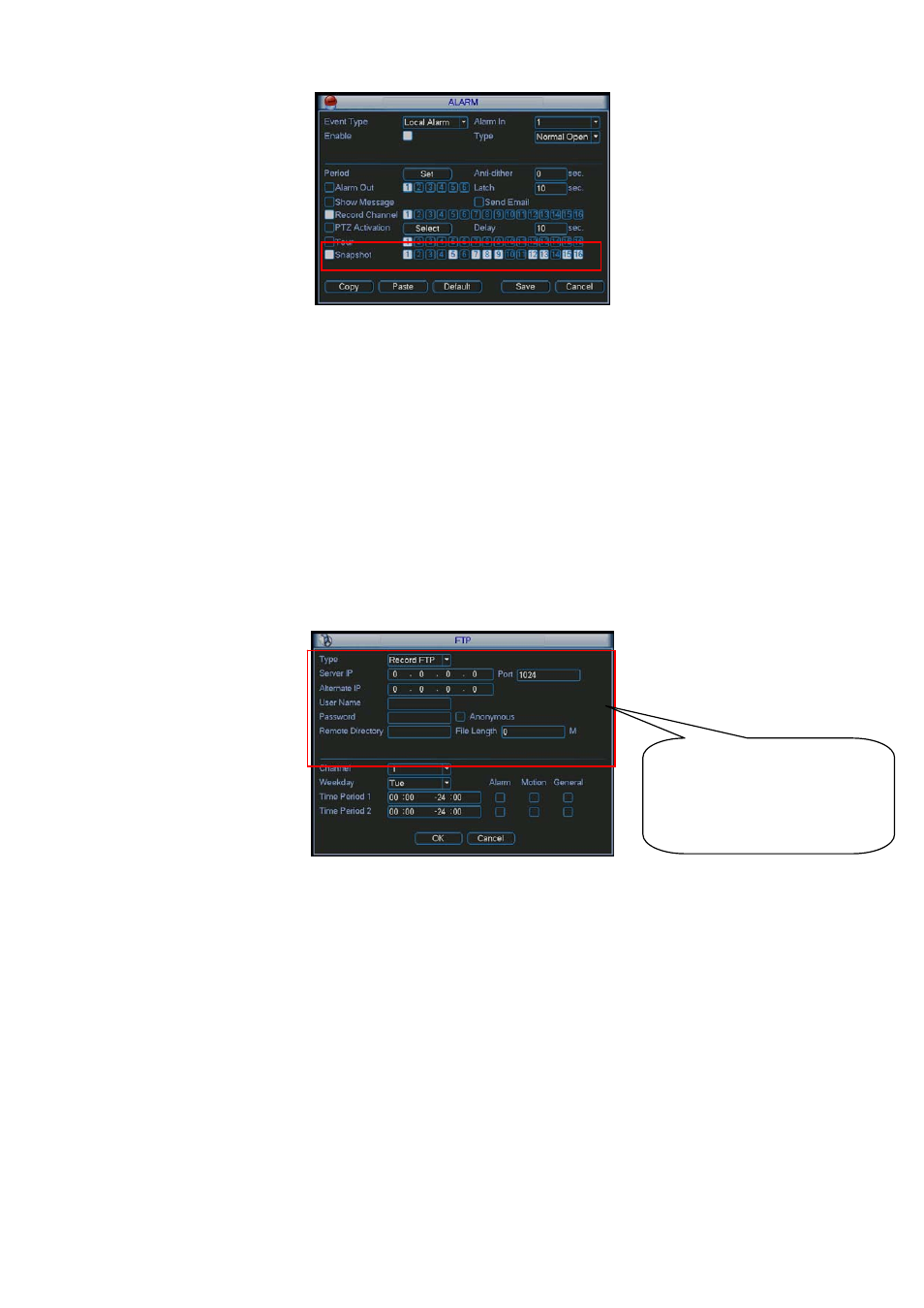

Figure 4-15
4.4.2.3 Priority
Please note the activation snapshot has the higher priority than schedule snapshot. If you
have enabled these two types at the same time, system can activate the activation snapshot
when alarm occurs, and otherwise system just operates the schedule snapshot.
4.4.3 Image FTP
In Network interface, you can set FTP server information. Please enable FTP function and
then click save button. See Figure 4-16.
Please boot up corresponding FTP server.
Please enable schedule snapshot (Chapter 4.4.2.1) or activation snapshot (Chapter 4.4.2.2)
first, now system can upload the image file to the FTP server.
Figure 4-16
4.4.4 Snapshot Disk (For special series only)
Set one disk as snapshot (Main menu->Advanced->HDD management) and then click execute
button. See Figure 4-17. System needs to reboot to get current setup activated.
Please input the
corresponding information
here, if you just upload the
image FTP.
