Q-See Q25DVR4ES User's Manual
Page 23
Q-See Q25DVR4ES User's Manual

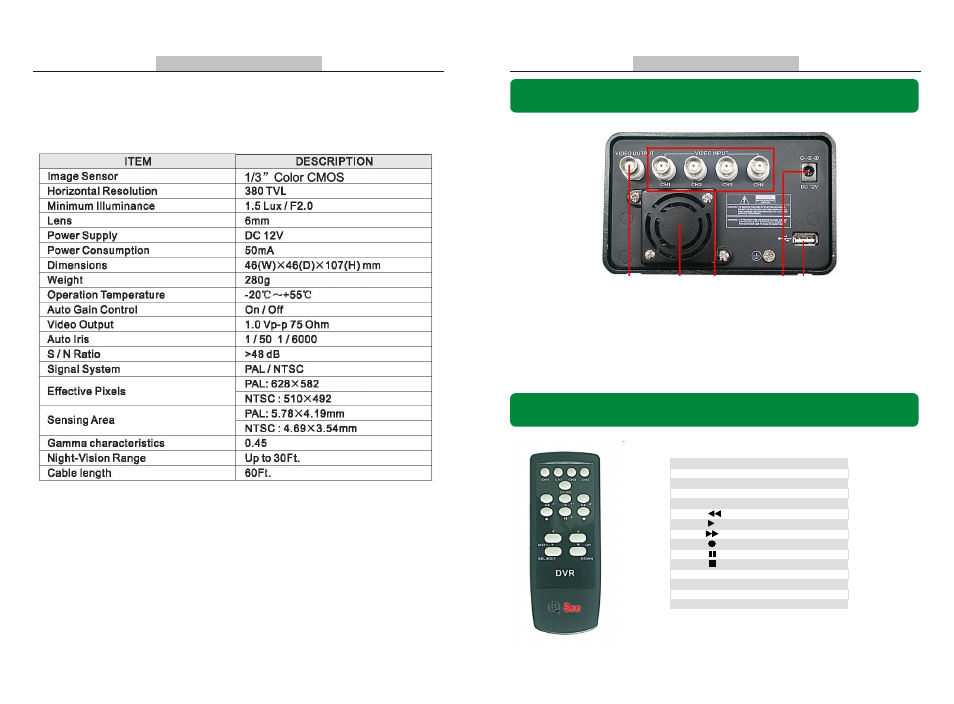

Chapter 2: Layout - 2.2 Rear Panel
Chapter 2: Layout-2.3 Remote Control
1. 1 x BNC VIDEO OUTPUT
2. FAN
3. 4 X BNC VIDEO INPUT
4. 12V DC POWER SUPPLY
5. USB 2.0 PORT
1
1
2
2
3
3
4
4
5
5
Page 4
13. MENU Enter or exit setup menu
15. SEL/Edit Modify item
06. Rewind
08. Forward
10. Pause
01. CH1 Select or enlarge CH1
03. CH3 Select or enlarge CH3
04. CH4 Select or enlarge CH4
05. QUAD Quad View
02. CH2 Select or enlarge CH2
07. Play recording list
09. Record
11. Stop recording
14. UP Move up prompt
16. DOWN Move down prompt
Camera Specifications
