The base system is universal enough to fit in either a new-style, clip-in (1995 or newer) or into the older style,
bolt-in. The rubber mounts with studs on both sides are used for the bolt-in style. The L-brackets are used for
the clip in style.

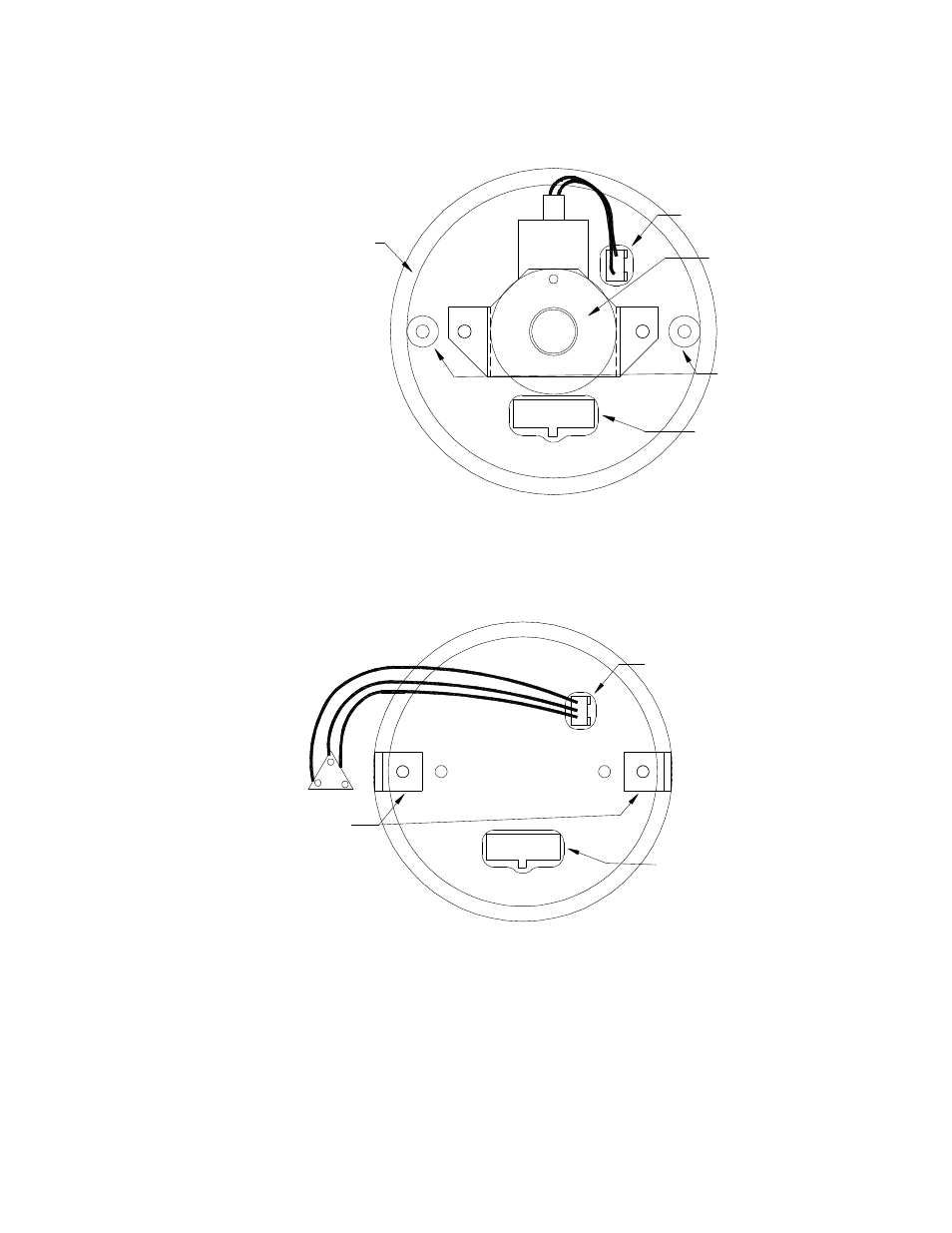

Mounting hardware and speed sensor connection for the bolt-in system with a speedometer cable.
Mounting hardware and speed sensor connection for the clip-in system with an electric, transmission speed
sensor.
Speed Sensor
Connector
Cable Driven
Speed Sensor
Rubber
Mounting
Studs
Main Harness
Connector
Attach the foam tape
to the case just below
the chrome bezel.
Main Harness
Connector
Speed Sensor
Connector
Speed Sensor
Harness Adapter
Mounting Brackets
