3.6.3.2

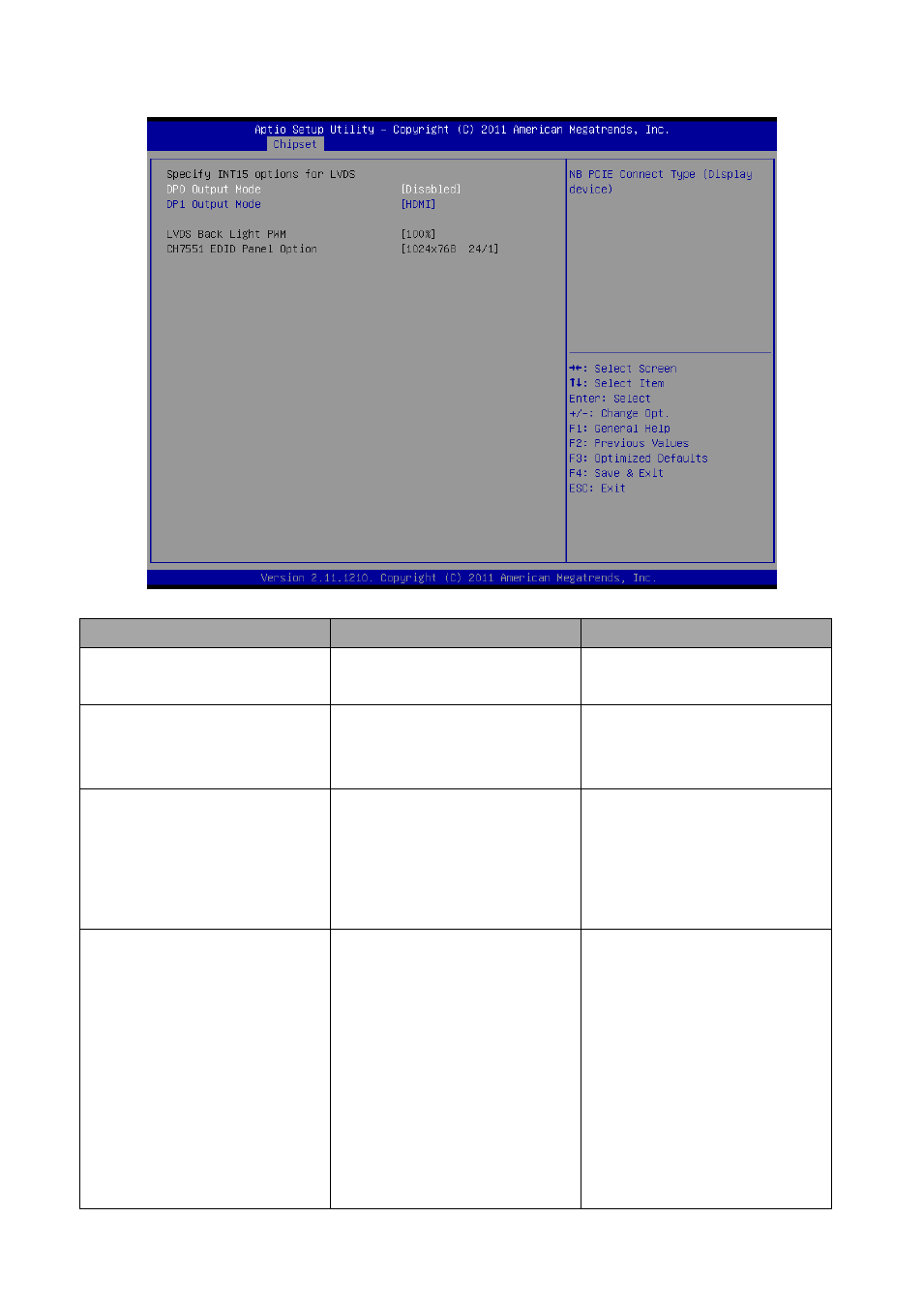

North Bridge LVDS Config Select

Item

Option

Description

DP0 Output Mode

eDP-to-LVDS[Default]

Disabled

NB PCIE Connect Type (Display

device).

DP1 Output Mode

DP

HDMI [Default]

Disabled

NB PCIE Connect Type (Display

device)

LVDS backlight PWM

00%

25%

50%

75%

100%[Default]

Select LVDS back light PWM

duty.

cH7551 EDID Panel Option

1024x768 24/1[Default]

800x600 24/1

1024x768 18/1

1024x576 18/1

1024x600 18/1

1280x800 18/1

1920x1200 18/2

640x480 24/1

800x480 24/1

1280x768 18/1

DP0-EDP to LVDS(Chrotel 7551)

Panel EDID Option.
