Avalue ESM-A50M - Manual (Page 25)

Quick Installation Guide
ESM-A50M Quick Installation Guide 25

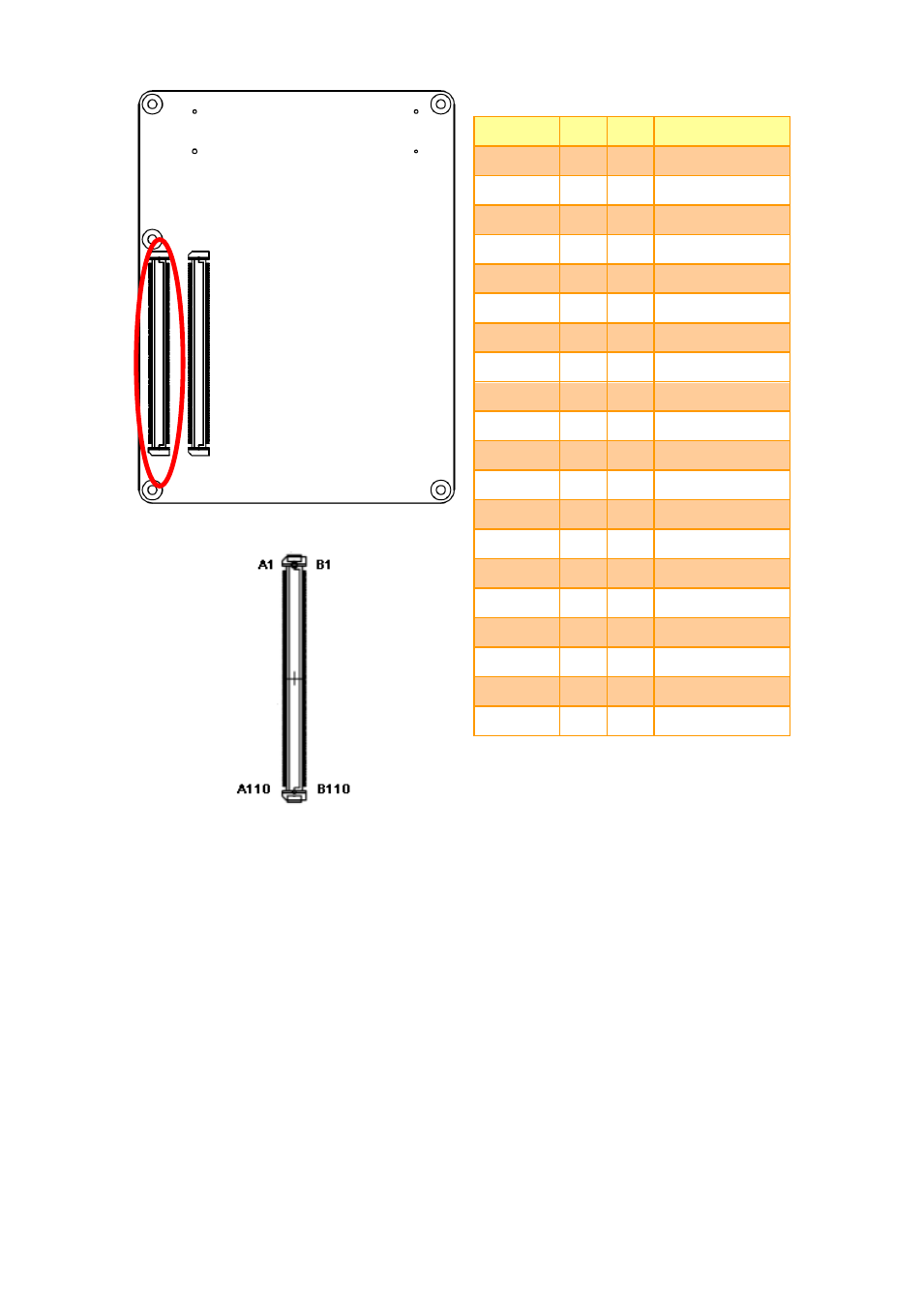

Signal PIN PIN Signal
+3.3V_SPI A91 B91 VGA_GREEN
SPI_MISO A92 B92 VGA_BLUE
GPO0 A93 B93 VGA_HSYNC
SPI_CLK A94 B94 VGA_VSYNC
SPI_MOSI A95 B95 VGA_DDC_CLK
PP_TPM A96 B96 VGA_DDC_DATA
TYPE 10# A97 B97 SPI_CS#
SER0_TX A98 B98 NC
SER0_RX A99 B99 NC
GND A100 B100 GND
SER1_TX A101 B101 FAN_PWMOUT
SER1_RX A102 B102 FAN_TACHIN
LID# A103 B103 SLEEP#
+12V A104 B104 +12V
+12V A105 B105 +12V
+12V A106 B106 +12V
+12V A107 B107 +12V
+12V A108 B108 +12V
+12V A109 B109 +12V
GND A110 B110 GND
